008 to 010 LED Strobe Time for Main Pixel
It is possible to make the whole image of each Image Block (A, B and C) darker or lighter
independently by changing the LED Strobe Time for the Main Pixels.
As a result an even image density can be accomplished among 3 Image Blocks.
The whole image of the concerning Image Block becomes darker if you increase the setting value.
Item No. Setting Item Setting
range
Step of
increment
008 LED Strobe Time for Main Pixel
(Image Block A : Left)
0 to 10 1 micro second
009 LED Strobe Time for Main Pixel
(Image Block B : Center)
0 to 10 1 micro second
010 LED Strobe Time for Main Pixel
(Image Block C : Right)
0 to 10 1 micro second

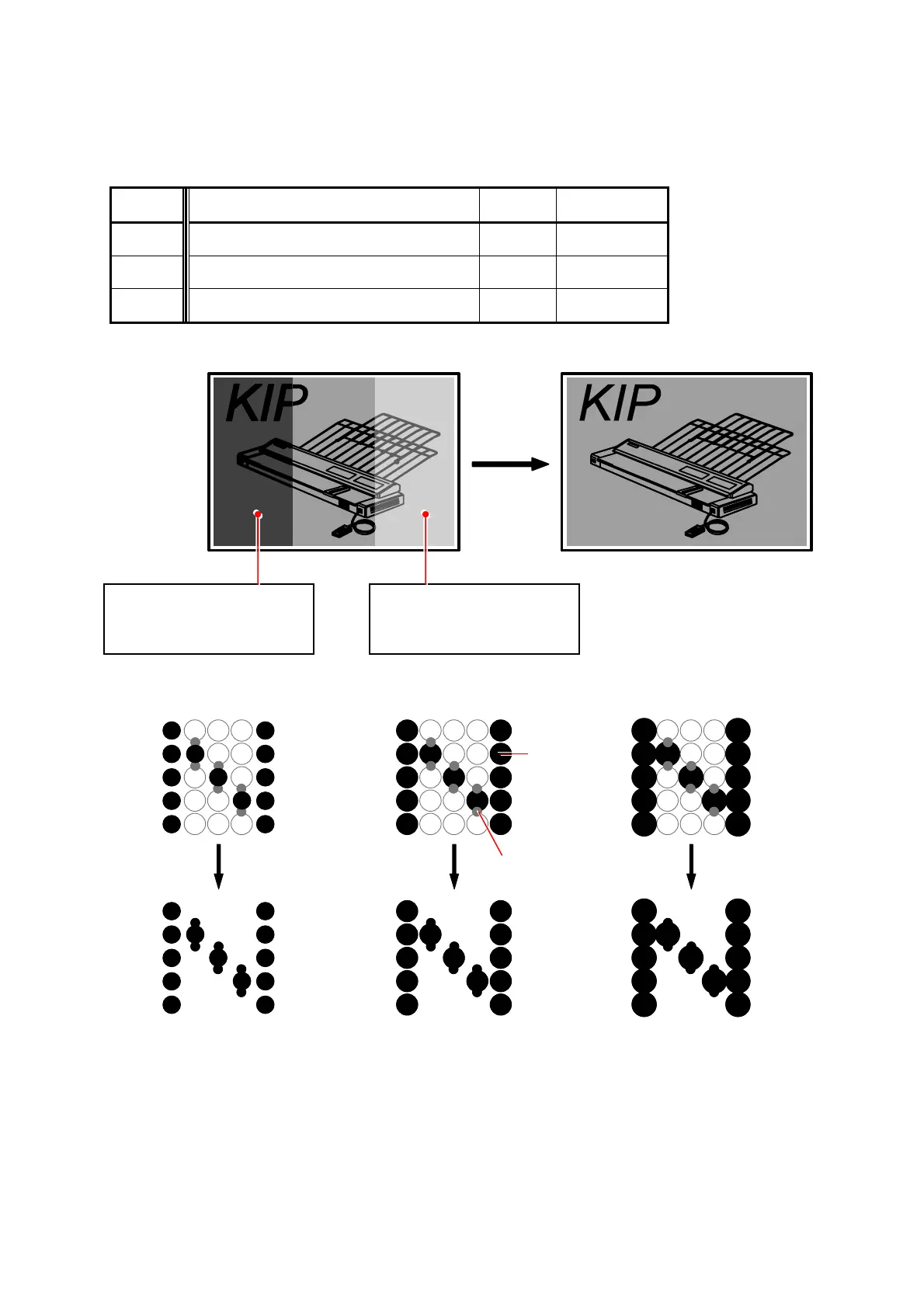

Block A Block B Block C
Setting value is decreased. Default Setting value is increased
.
Actual print image
For the detail information about “Main Pixel” and “Supplemental Pixel”, see the reference
column in [011 to 013 LED Strobe Time for IST (Supplemental Pixel)].
Decrease the value of
“008” to make the image
of Block A lighter.
Increase the value of
“010” to make the image
of Block C darker.
Main pixel
Supplemental
pixel
