KIP 700m - 4. 2. 4 Front

K117sm4e2
4-5
4. 2. 4 Front

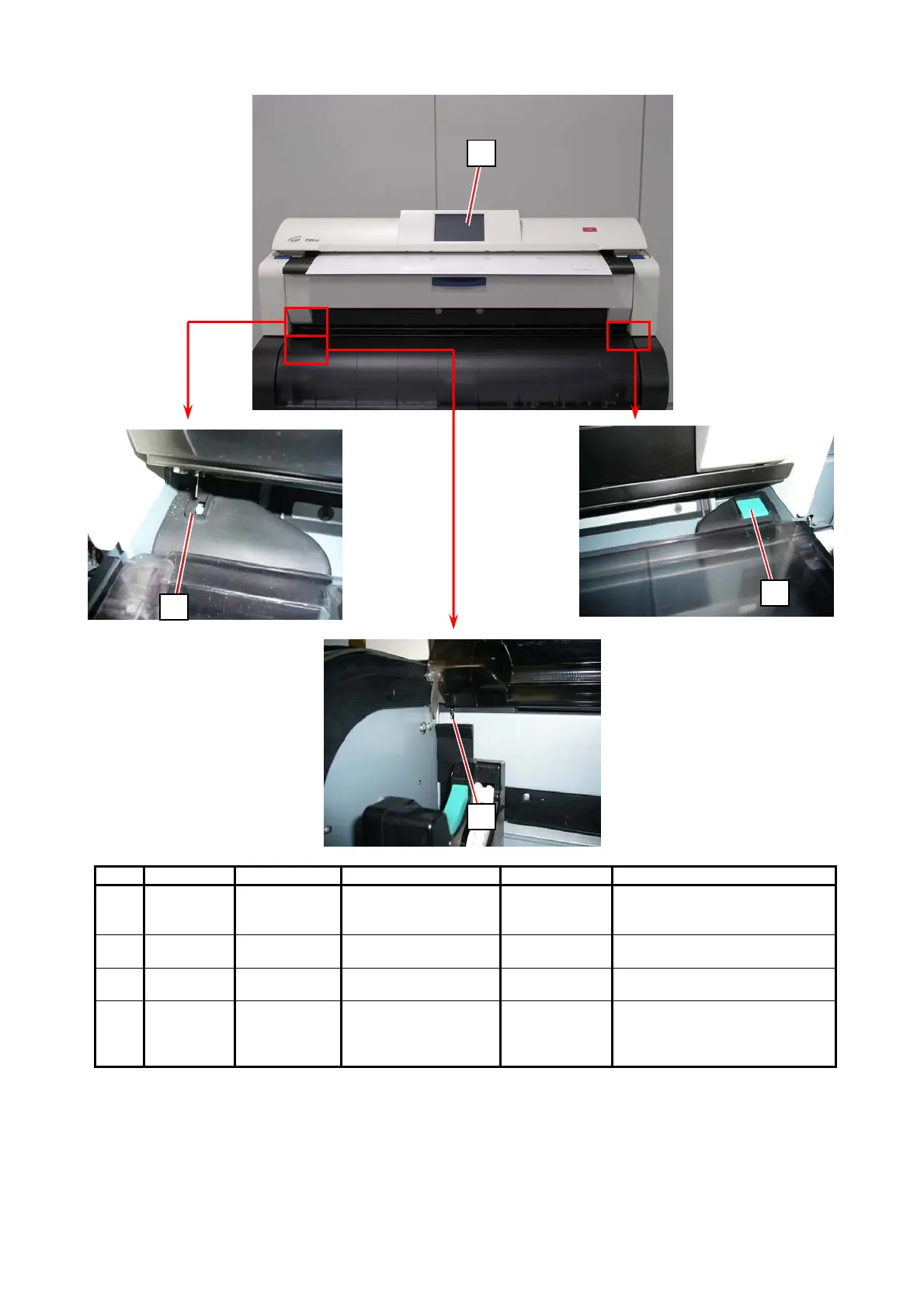

Item Symbol Signal name Name Type Function
1 Touch
Screen
LCD
- Touch Panel LCD Unit
(UI)
SLP0832-ETT-
A02
Touch Screen User Interface
2 MS5 DOOR_OPN Switch (Roll Deck
Cover open)
AM51612C53
N-A
Detects Roll Deck Cover open
3 MS6 HAND_DOOR Switch (Manual Feed
Table open)
CS1A-B2CA Detects Manual Feeder Table
open
4 MS7 SAMP_CUT Switch
(Initial Cut Switch)
CS1A-B2CA - Starts an initial cut by a short
press
- Starts a test print by a press in
3 seconds or more
1
3
2
4
