KIP 700m - 5. 5 LED Head Unit; 5. 5. 1 Replacing LED Head Unit

K117sm5e7
5-86
5. 5 LED Head Unit
5. 5. 1 Replacing LED Head Unit

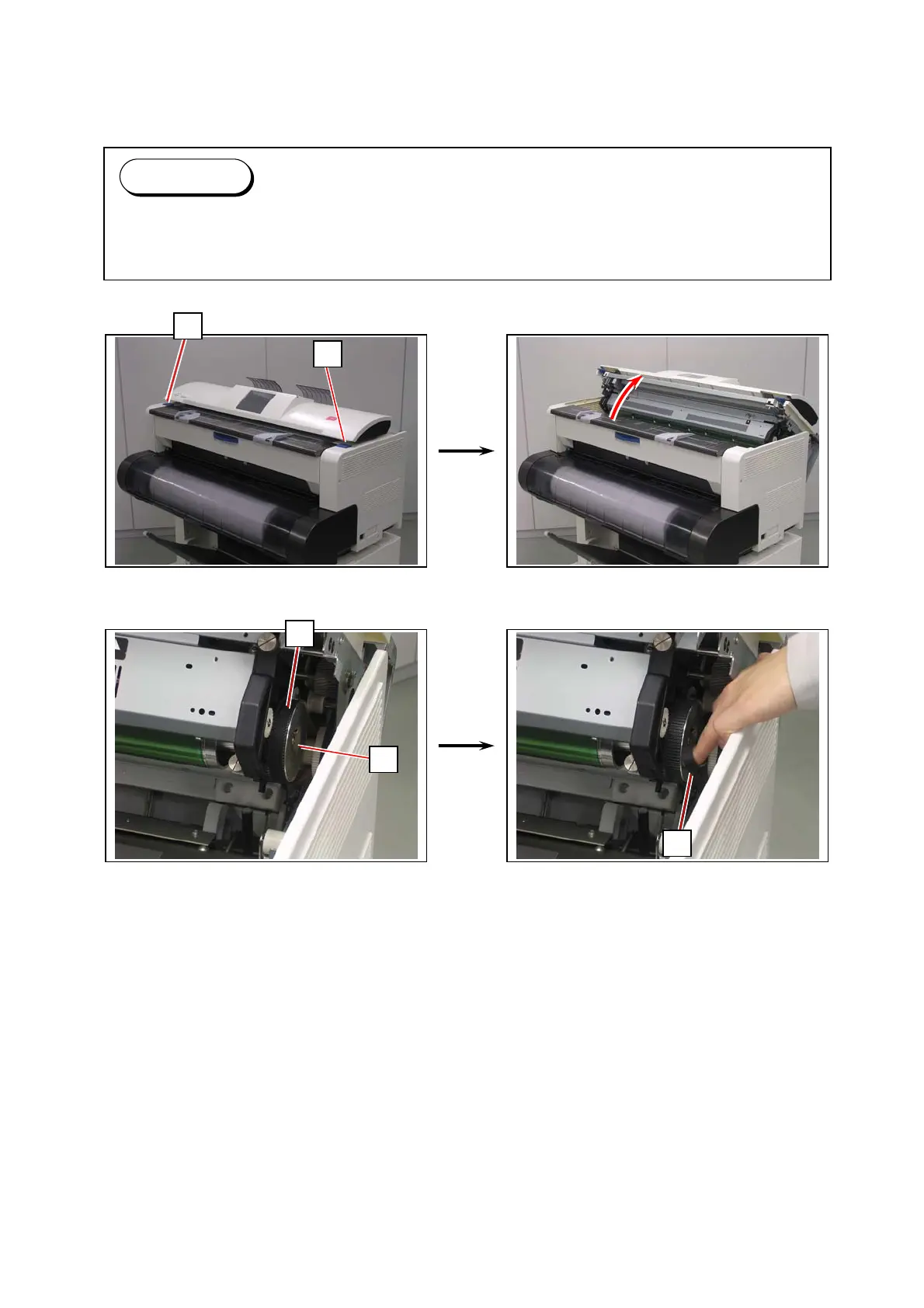

1. Press the blue lever (1) on both sides to open the Upper Unit.
2. Release the belt (2) from the pulley (3).
1
1
2
3
2
Reference
To obtain enough clearance to remove / install the LED Head Unit, it is recommended to
remove the Developer Unit.
