K117sm2e3
2-5

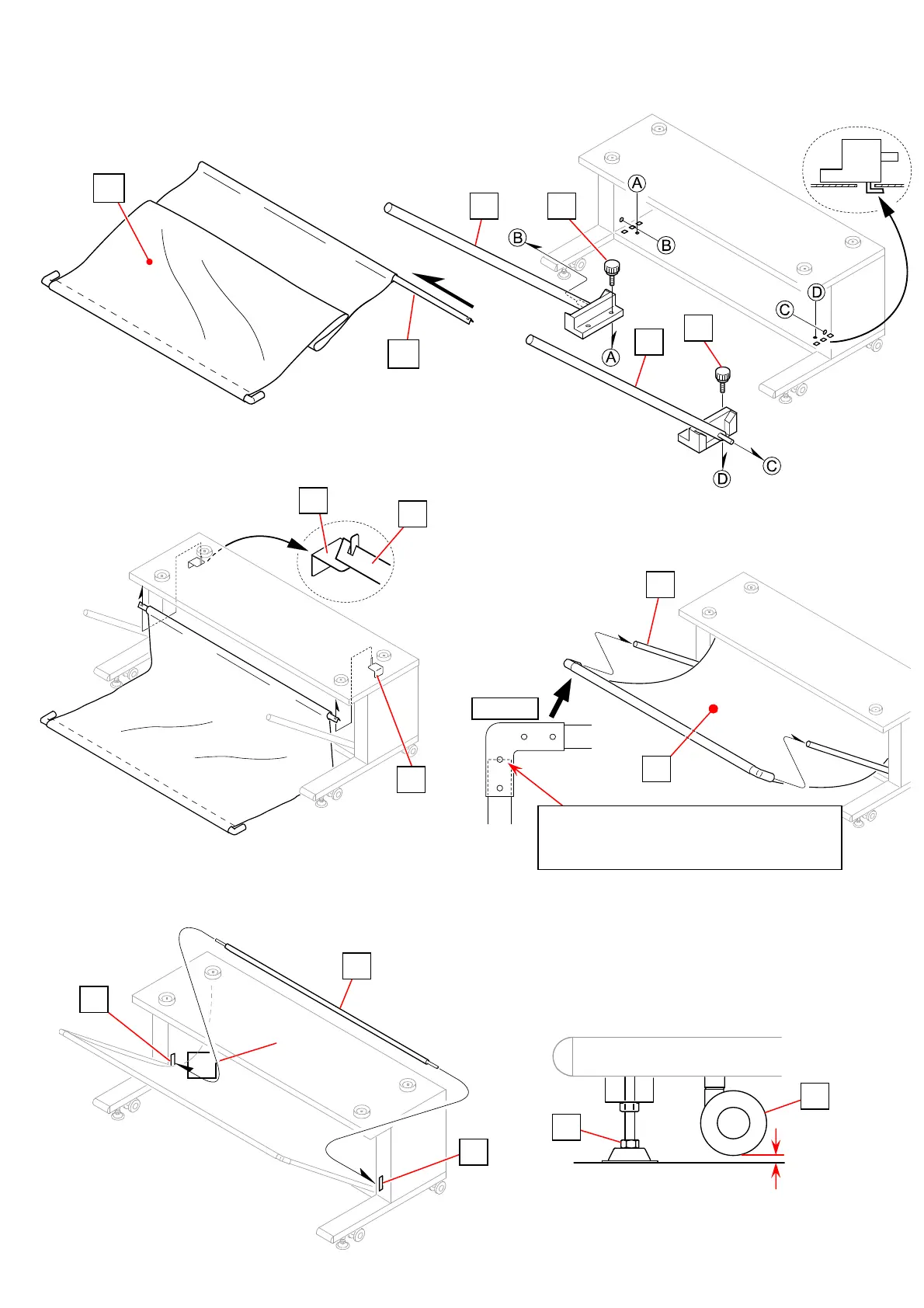

2. 4 Stand Setup
3. Put the end of Rear Stay (1) on the Bracket (5).
Make sure to face the holes on the L-shape toward the floor.
8
3
4
5
5
1
4. Insert the L-shape end of Sheet Assy (2) to Swing Arms (3).
5. Put Shaft (6) on the Sheet Assy, and insert both ends to the slits (7)
on the side panel so that Shaft gives tension to the Sheet.
6. Rotate the Adjust Bolt (8) until the distance between
the floor and Caster (9) becomes approx. 5mm.
1
2
6
7
7
3 4
Approx. 5mm
8
9
L-Shape
2
3
Insert Swing Arm (3) into L-shape until it
comes to the second hole on L-shape.
Make sure to face the holes toward the floor.
2. Fix Swing Arm Assy (3) to the bottom plate of Stand with
Thumb Screw (4).
1. Pass Rear Stay (1) through the loop at the
end of the cloth of Sheet Assy (2).
To Next Page
