K117sm4e3
4-25

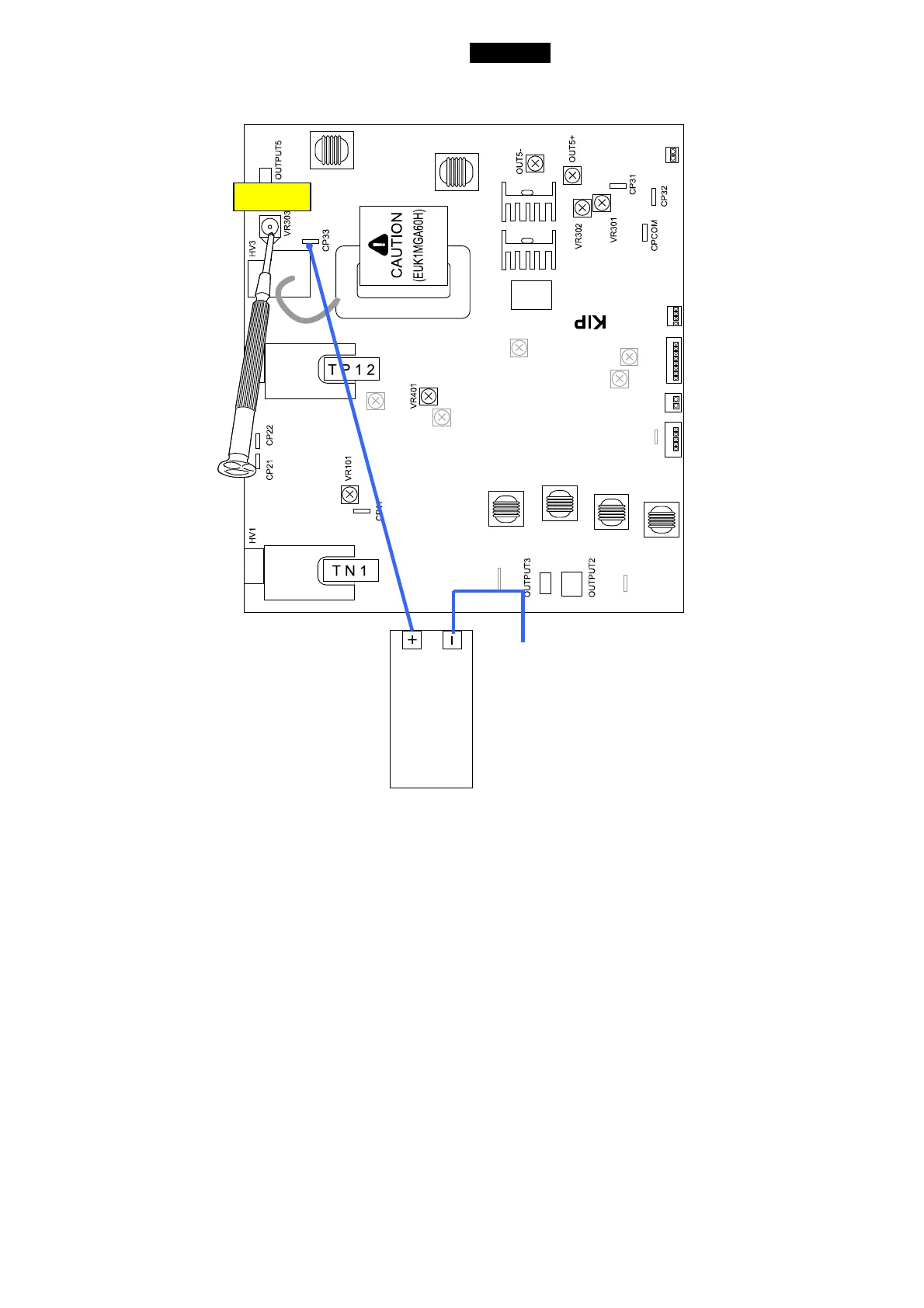

3. Adjust the DC Component if it does not satisfy -250 +/-5V.
To adjust it, rotate the VR303 with a screwdriver.
VR303
multimeter
(DC)
ground
