K117sm4e3
4-35

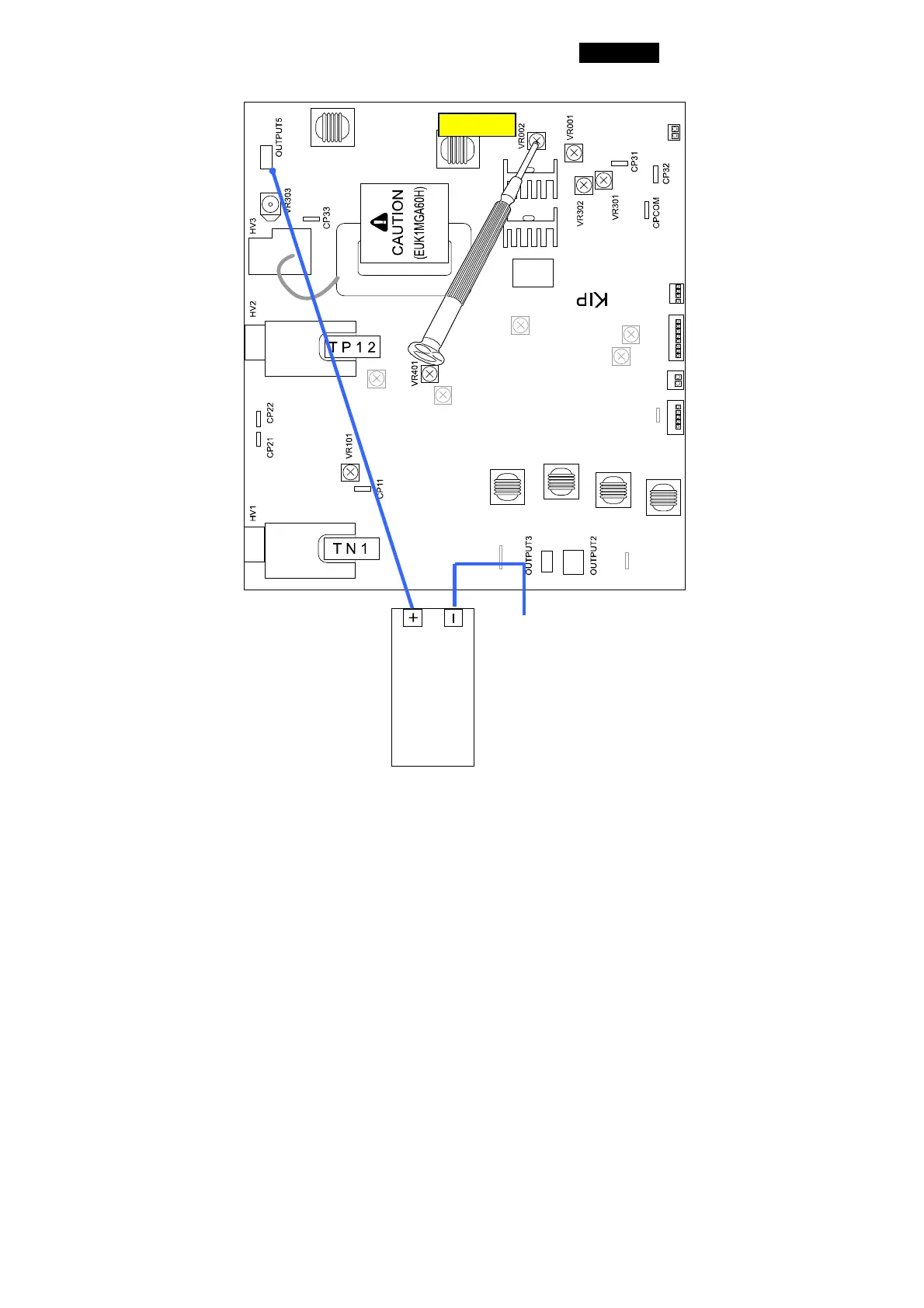

3. Adjust the Negative Cleaning Roller Bias if it does not satisfy -550 +/-5V.
To adjust it, rotate the VR002 with a screwdriver.
multimeter
(DC)
ground
VR002
