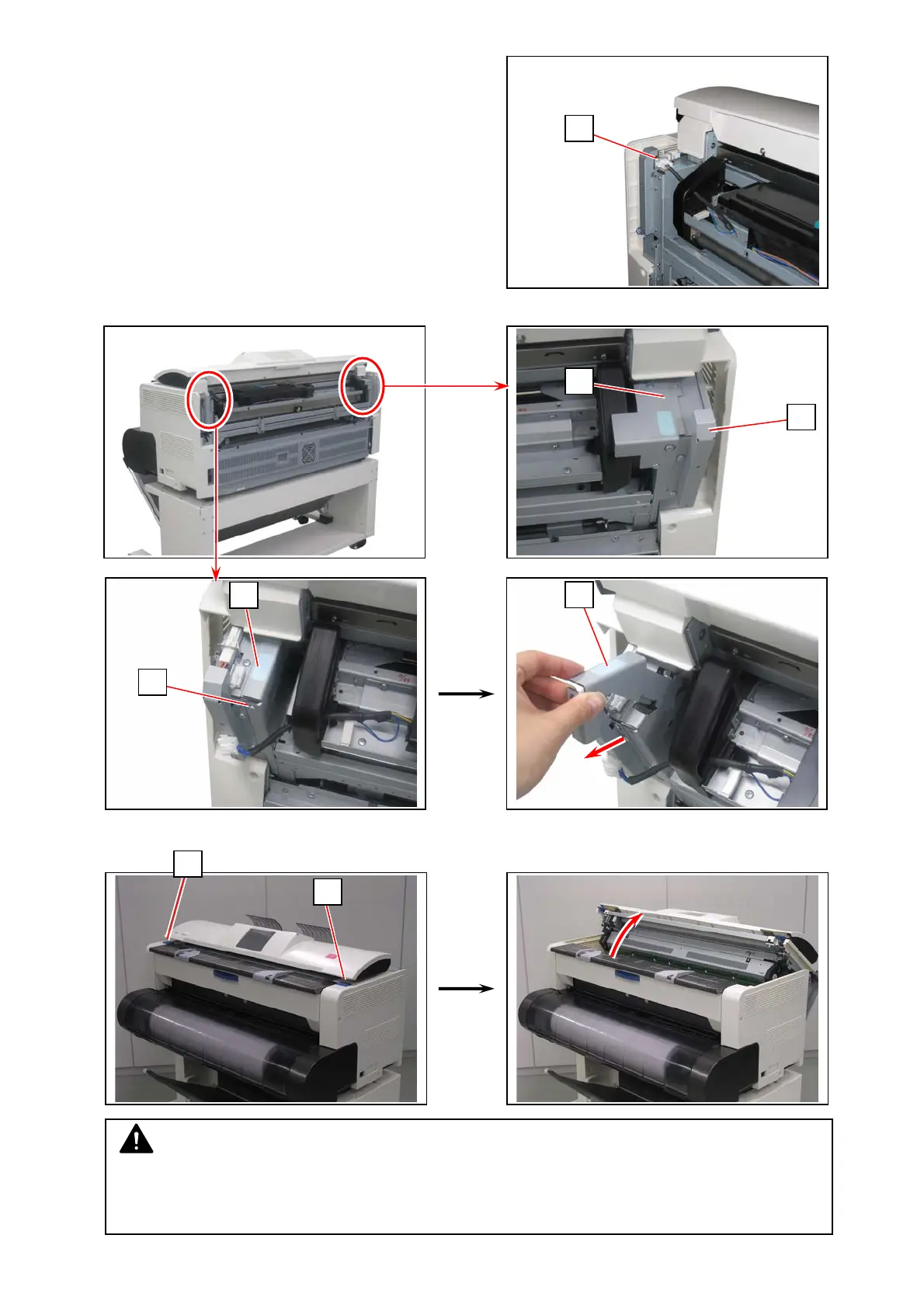

3. Disconnect 1 connector (5).
4. Remove 1 Bind Head Screw (6) on each side to remove the rail blocker R (7) / L (8).
5. Press the blue lever (9) on both sides to open the Upper Unit.
9
9
NOTE
Be sure to open the Upper Unit. This will release the engagement between the Developer
Unit and the driving system. Removing the Developer Unit with the Upper Unit closed may
damage the drive gears.
