K117sm5e6
5-74

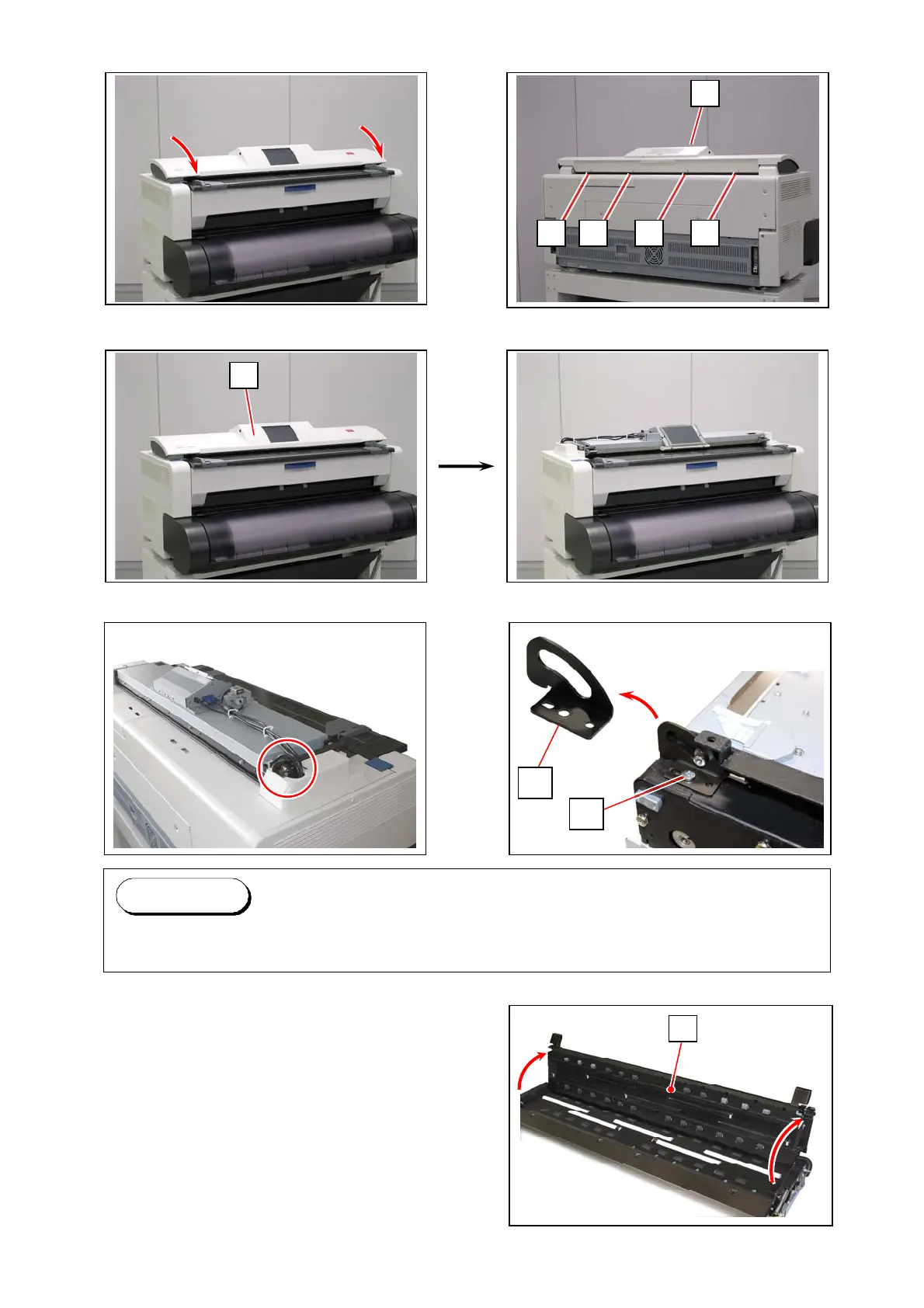

3. Close the Scanner Unit. Loosen 4 screws (4) to release Scanner Top Cover (5).
4. Remove Scanner Top Cover (5) from the Scanner Unit.
5. Remove 1 screw (6) to remove Stopper Plate (7).
6. Fully open the Upper Unit (8).
4 4 4 4
5
5
6
7
The Stopper Plate (7) is a safety to limit the motion range of the Upper Unit at “operation
position 40 degrees”. In this section, another safety at “service position 100 degrees” works.
Reference
8
