10. Carefully disconnect the flat cable (15).
NOTE

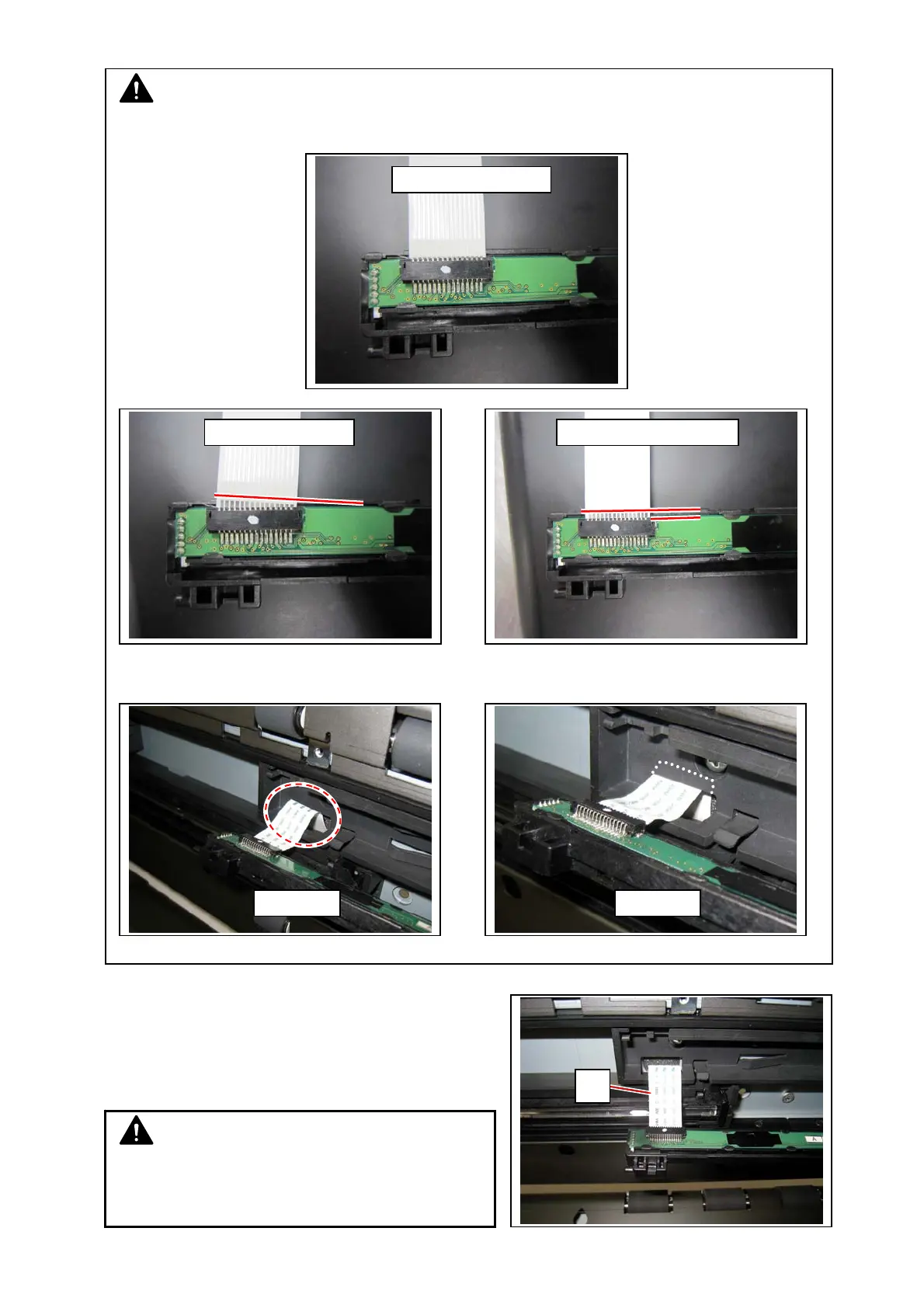

(3) For the flat cables, avoid skewing or half-insertion.
(4) For the flat cables, tuck the excess stretch under the CIS Holder.
correct: fully inserted
incorrect: skewing incorrect: half-insertion
incorrect correct
15
NOTE
After replacement, the CIS requires Shading
/ Stitch Adjustments / Black Brightness
Correct.
