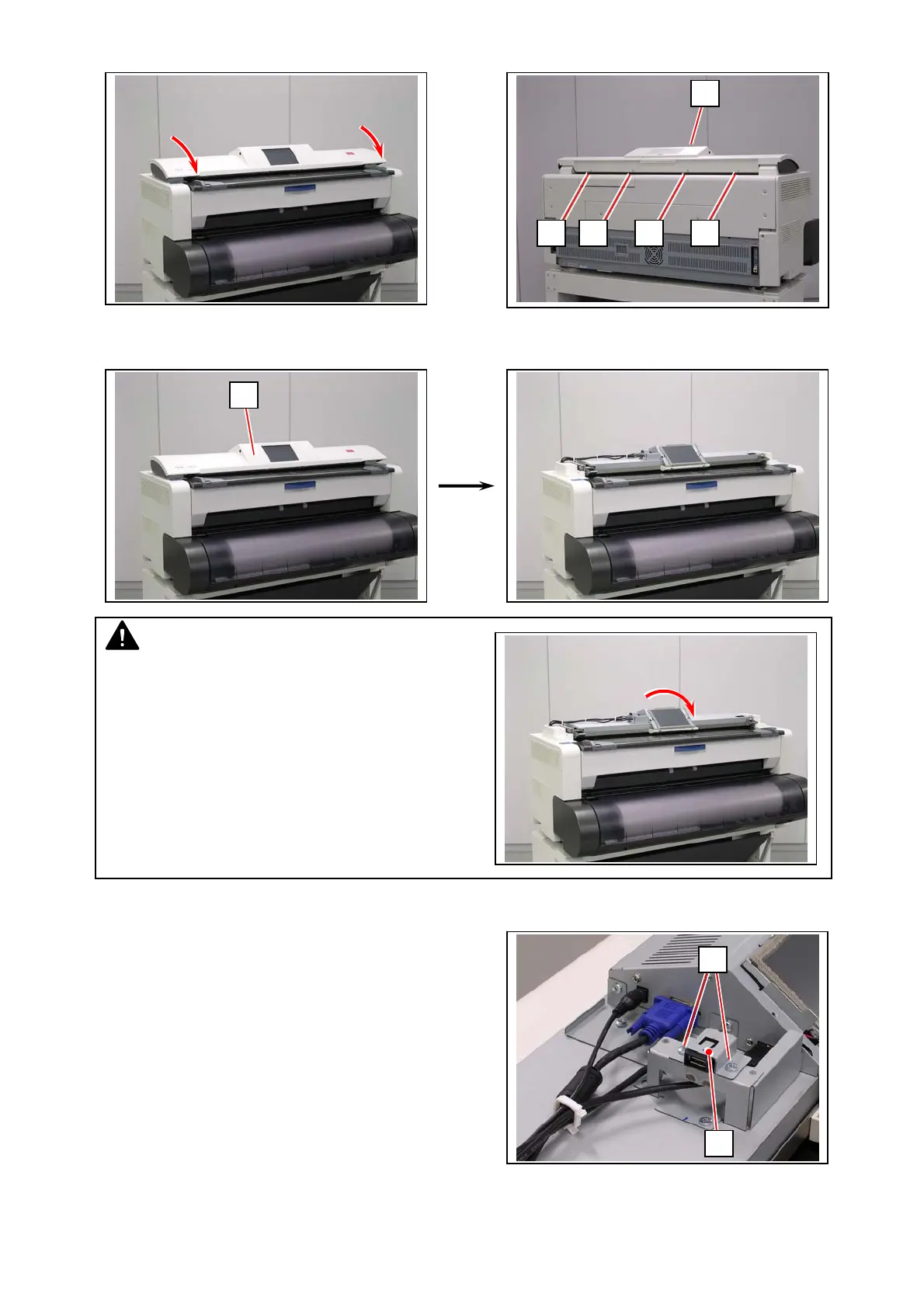

3. Close the Scanner Unit. Loosen 4 screws (4) to release Scanner Top Cover (5).
4. Remove Scanner Top Cover (5) from the Scanner Unit.
5. Remove 2 screws (6) to remove USB Cable Bracket (7).
4 4 4 4
5
5
NOTE
It is necessary to install under the condition to
Closing “Upper Unit” when installing “Top Cover”.
6
7
