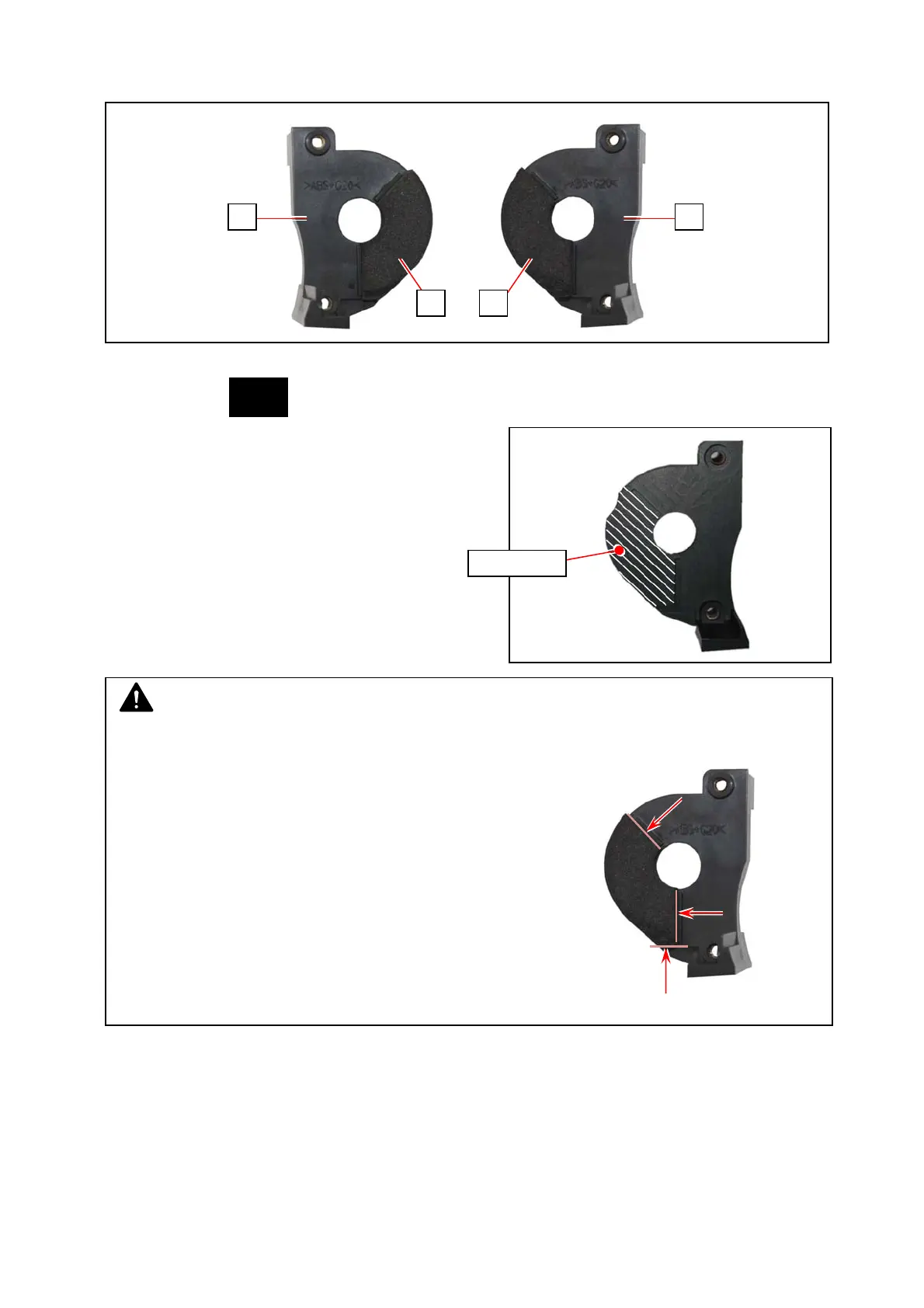

33. Remove the Seal 32 (58) on the inner side of the Side Plate 21 (56).
Remove the Seal 31 (59) on the inner side of the Side Plate 19 (57).
34. Carefully clean off the surface where the Seals have been applied.
Apply the new Seal 32 to the Side Plate 21 (56).
Apply the new Seal 31 to the Side Plate 19 (57).
56 57
58 59
NOTE
The Seal 31 and the Seal 32 should be aligned against the 3 lines as indicated below.
(The picture is an example. Do the same way on another Seal)
Clean here.
To Next Page
