2-12

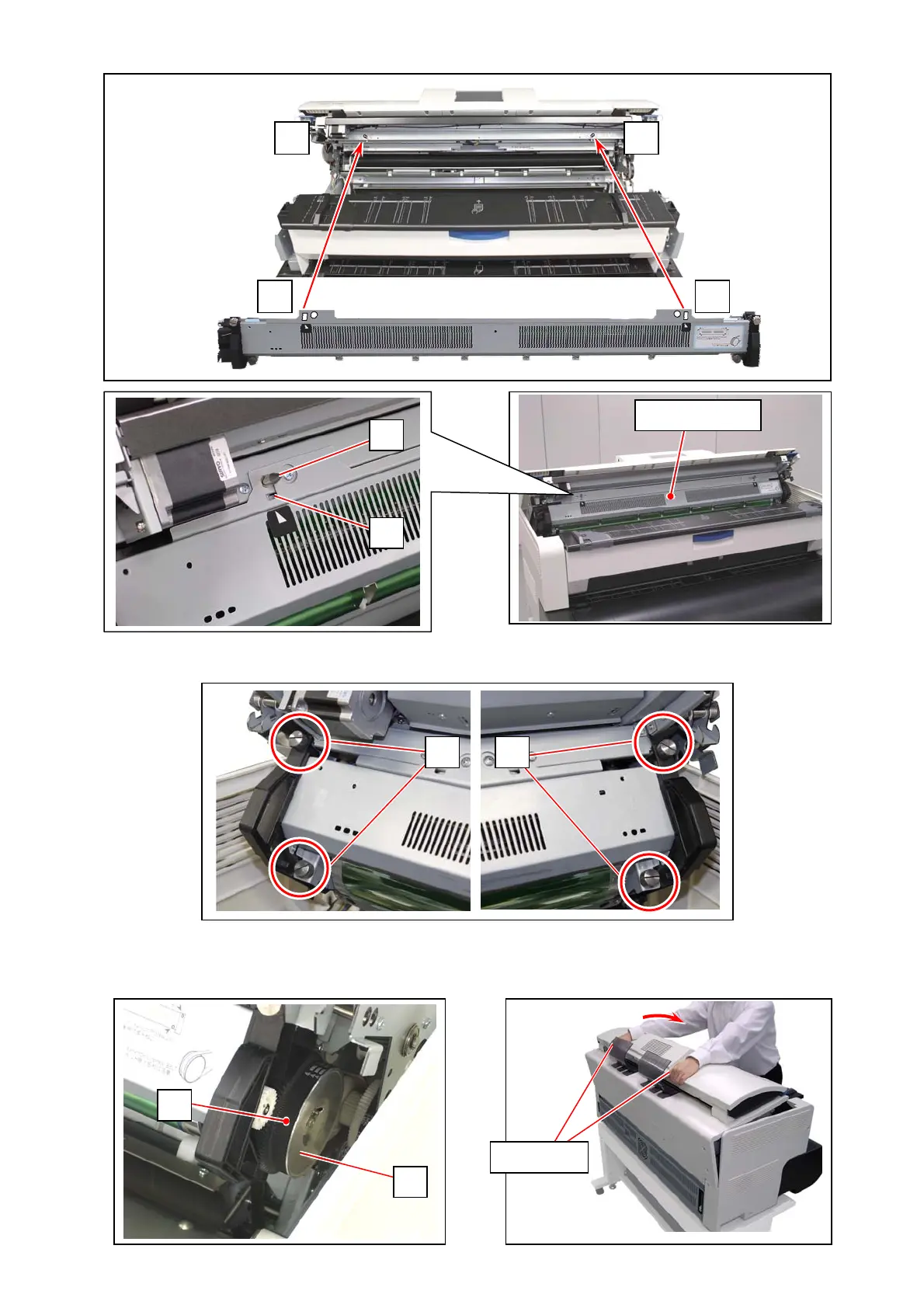

4. With fitting the square holes (3) to the pins (4), install the Process Unit to the Upper Unit of printer.
5. Secure the Process Unit by tightening 4 thumb screws (5).
6. Fit the belt (6) into the pulley (7) for engagement.
4
3
Process Unit
5 5
6
7
44
3 3
7. Finish the setup of Process Unit by closing the
Upper Unit.
Hold Here.
