5. Installing Dehumidify Heater Assy 2

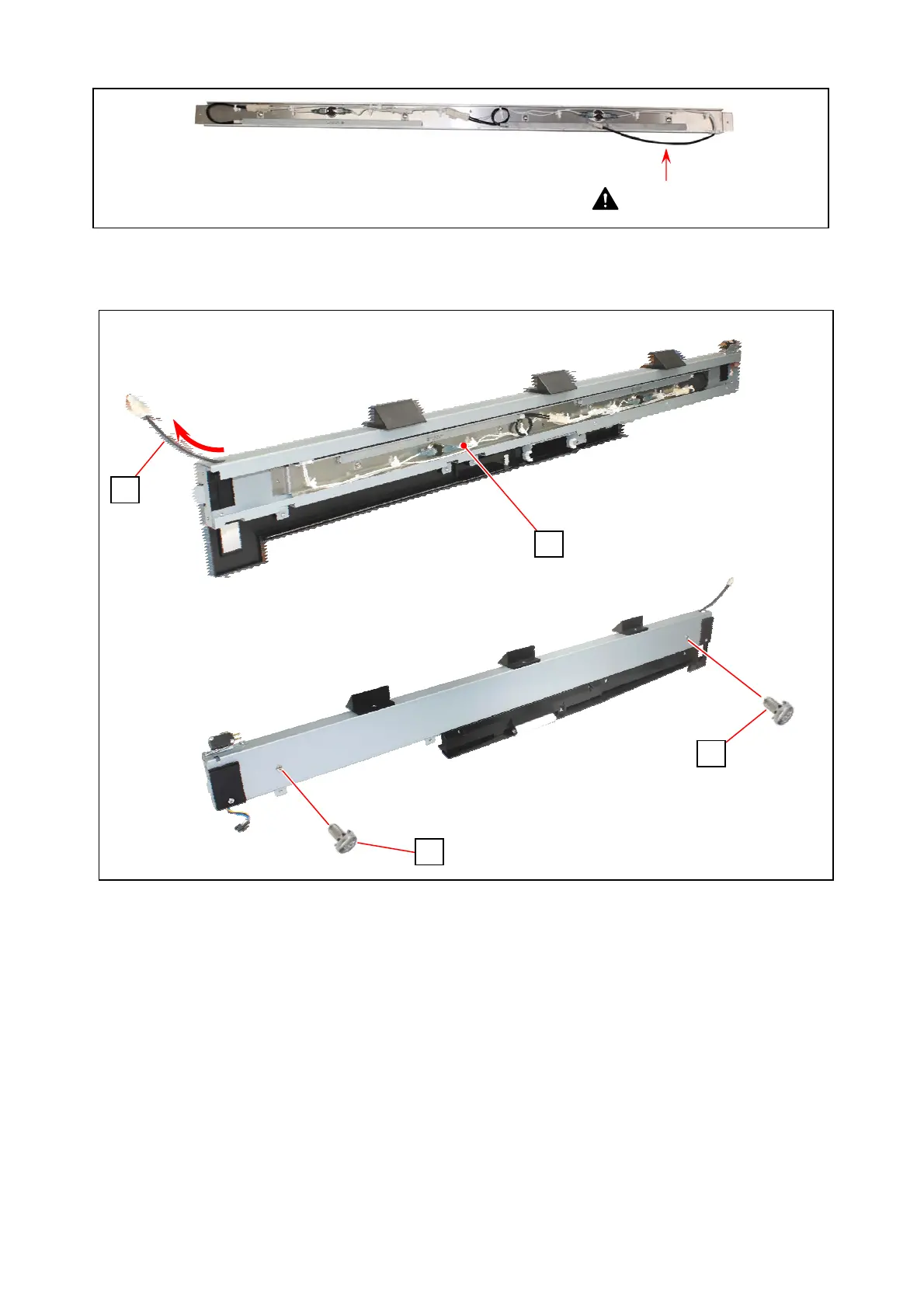

1. Fix Dehumidify Heater Assy 2 (1) to the Guide Plate with 2 tooth washer screws (2) of the kit.
Pass the harness (3) of Dehumidify Heater Assy 2 through the rectangle hole on top right of Guide Plate.
2
3
1
1
Black Harness
DEHUMIDIFY HEATER ASSY 2
