(1) Even if the toner remains on the Drum, it will not block the light from the LED Head as the
diameter of toner (9 micrometers) is much smaller than that (42 micrometers) of 1 pixel of
LED. The electric charges on the Drum are removed as needed.

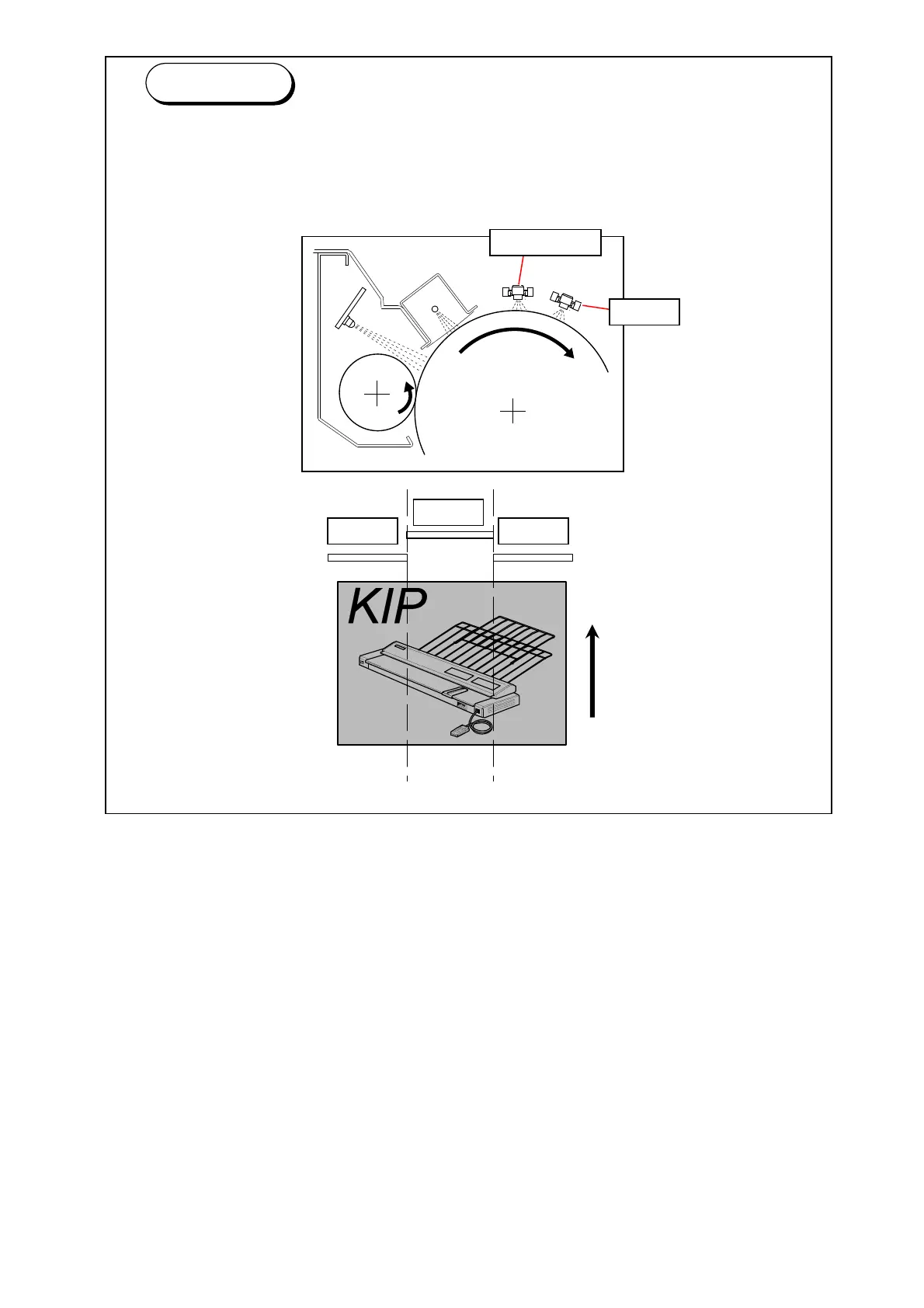

(2) The KIP 700m’s LED Head Unit consists of 3 blocks.
Reference
Block B
Block A / C
Block B
Block A Block C
Printing Direction
