214323 312 Revision A

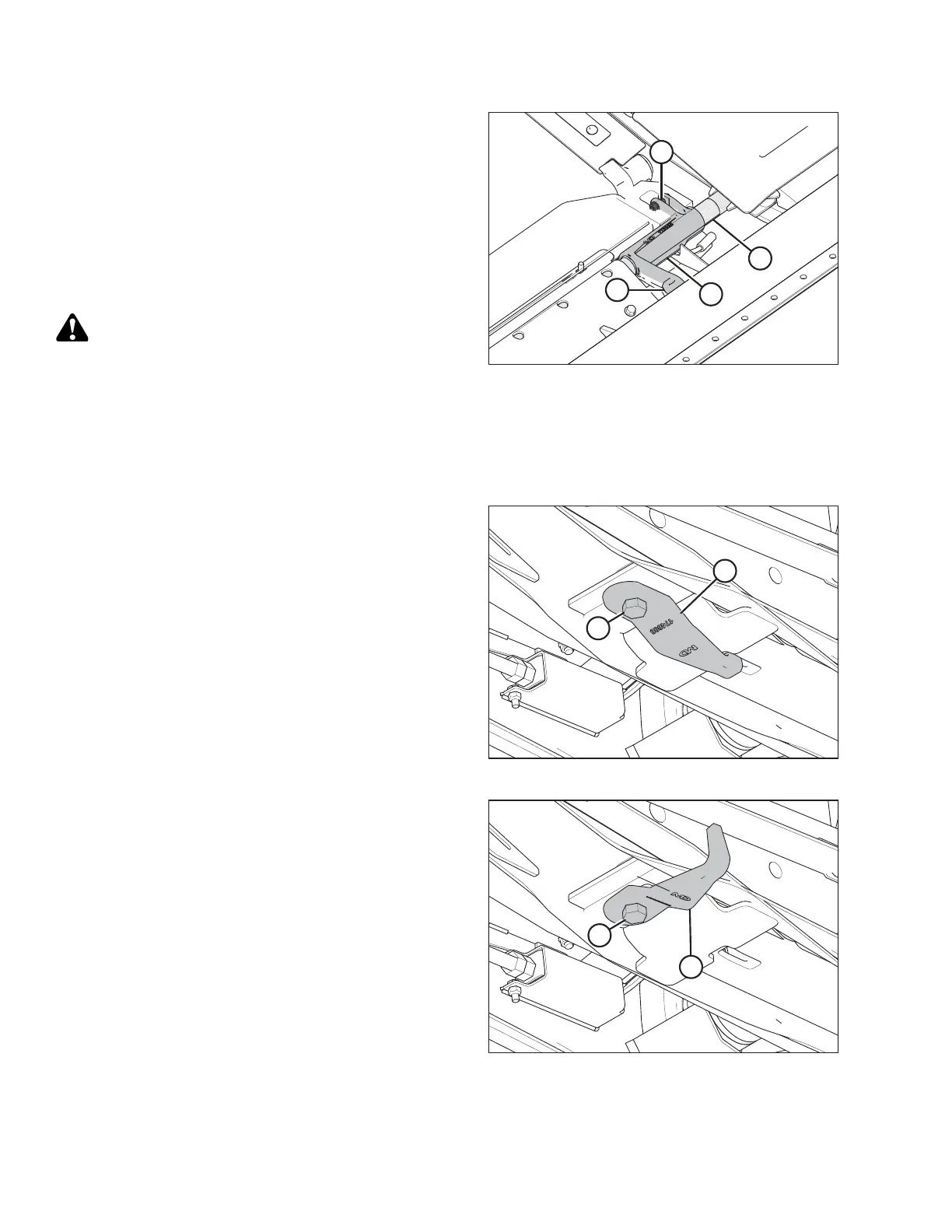

Figure 4.98: CA25 Latch
9. Remove the 9/16 in. nut from bolt (C).
10. Use a 24 mm (15/16 in.) wrench on hex bolt (B) to
rotate latch (A) downwards and slightly raise the feed
deck to access and remove bolt (C).
11. Rotate the latch (A) up and back to lower the CA25
deck and disengage the transition pan tube (D).
12. Reinstall bolt (C).
13. Repeat for opposite side of the feed draper deck.
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
14. Disengage the reel safety props, start the engine, lower
the reel, and fully raise the header.
15. Stop the engine, remove the key from the ignition, and
engage the combine lift safety props.
Figure 4.99: CA25 Underside
16. Loosen nut and bolt (A), and disengage hook (B) from
leg on both sides of CA25.
Figure 4.100: CA25 Underside
17. Rotate hook (B) 90° for storage, and retighten bolt (A)
and nut.
HEADER ATTACHMENT/DETACHMENT
