214323 22 Revision A
Table 2.1 Header Specifications (continued)
Conveyor (Draper) and Decks
Draper width
1057 mm (41.61 in.) S
Draper drive Hydraulic
S
Draper speed: CA25 Combine Adapter controlled 141 m/min. (0–464 fpm) S
Delivery opening width
1870 mm (73.62 in.) S
PR15 Pick-Up Reel
Quantity of tine tubes
5-, 6-, or 9-tine tubes
Center tube diameter 203 mm (8 in.) S
Finger tip radius Factory-set
800 mm (31.5 in.) S
Finger tip radius Adjustment range
766–800 mm
(30.18–31.5 in.)
S
Effective reel diameter (via cam profile) 1650 mm (65 in.) S
Finger length
290 mm (11 in.) S
Finger spacing (staggered on alternate bats) 150 mm (6 in.) S
Reel drive Hydraulic
S
Reel speed (adjustable from cab, varies with combine model)
0–67 rpm
S
Frame and Structure
Header
width
Field mode
Cut width +
384 mm (15.12 in.)
S
Header
width
Transport position—reel
fore-aft fully retracted
(shortest center-link)
(A)
2
,
3
(B)
2
,
4
2684 mm (106 in.)
2500 mm (98 in.)
—

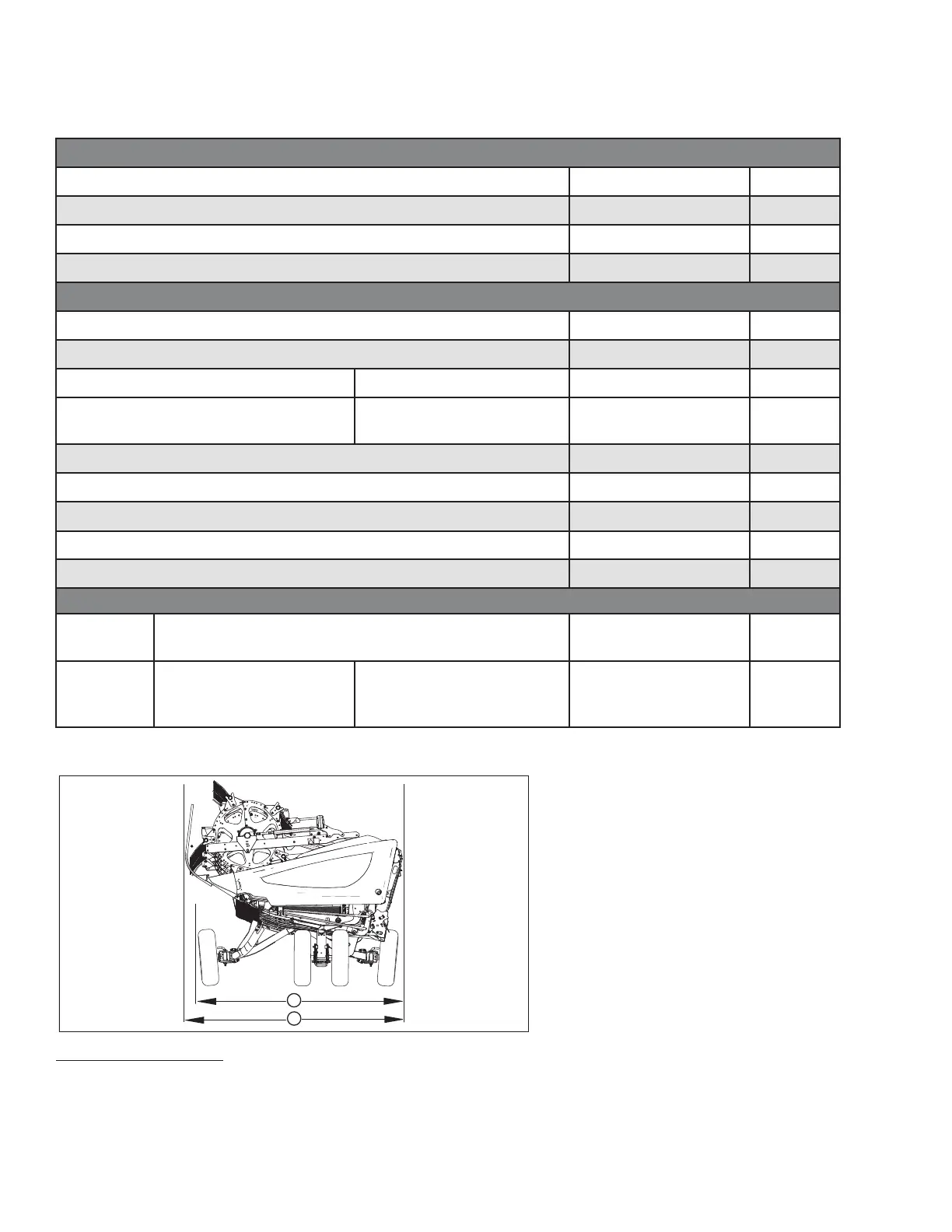

Figure 2.1: Header Width
PRODUCT OVERVIEW
2. Refer to Figure 2.1, page 22
3. Long dividers removed
4. Long dividers installed
