Engaging and Disengaging the Header
The HEADER ENGAGE switch engages and disengages the header drive.
DANGER
Ensure that all bystanders have cleared the area.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
1. Start the engine.

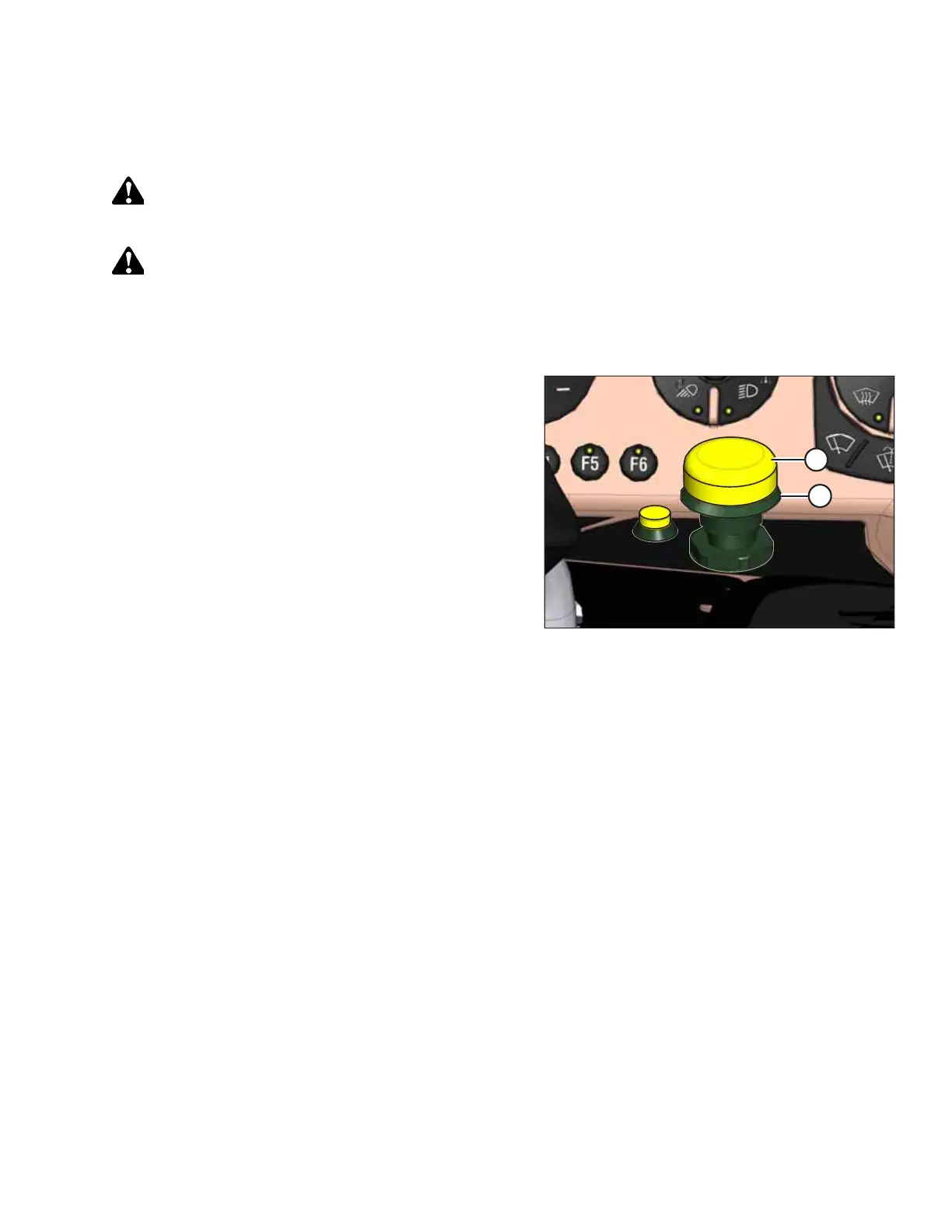

Figure 4.333: Header Engage Switch
2. To engage the header: Push and hold HEADER ENGAGE
switch (A) down, while pulling up on collar (B).
To disengage the header: Push HEADER ENGAGE
switch (A) down.
Reversing the Header
NOTE:
R85, R1 Series, and R2 Series Rotary Disc Headers do NOT have any reverse capability.
When reversing, the following header functions will turn in reverse:
• D1XL Series: knife
• D1X Series: knife
• A40DX: knife, conditioner, auger, and reel
• A40DX GSS: knife, auger, and reel
OPERATION
