Removing Battery
CAUTION
Do NOT attempt to service a battery unless you have the proper equipment and training for the task. Have the
windrower’s batteries serviced by a MacDon Dealer.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Open the battery cover. For instructions, refer to Opening Battery Cover, page 427.
3. Disconnect the battery harness. For instructions, refer to Disconnecting Battery, page 433.

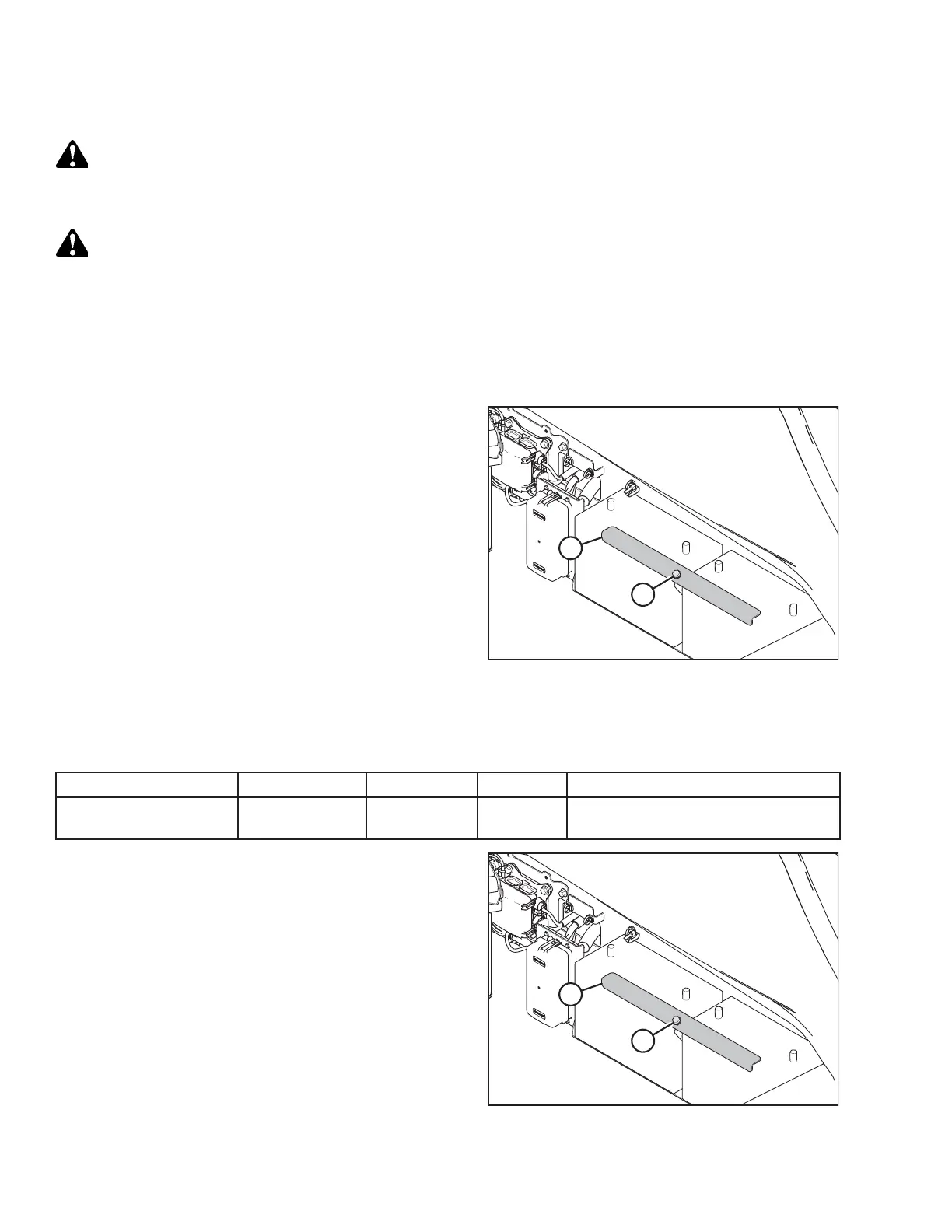

Figure 5.157: Battery Location
4. Loosen bolt (A) until securing strap (B) can be removed.
5. Lift batteries off the support.
Installing Battery
Table 5.7 Battery Specifications
Rating
Group
CCA (min)
Volt
Maximum Dimension
Heavy duty, off-road,
vibration resistant
31A 760 12
334 x 188 x 232 mm
(13 x 7.4 x 9.13 in.)
Figure 5.158: Battery Location
1. Position the new batteries on the battery support.
NOTE:
Ensure that positive terminal is positioned on the right side
of the battery when facing them.
2. Install strap (B) and secure with bolt (A).
3. Connect the battery cables. For instructions, refer to
Connecting Batteries, page 433.
4. Close the battery cover. For instructions, refer to Closing
Battery Cover, page 428.
