Oval EL4101 - Solids Content Flowrate Calculation Setup (FLOW (SOLID) PARA.); Solids Content Flowrate Calculation Submenu Screen

                     
／                    
↑−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＦＬＯＷ（ＳＯＬＩＤ）ＰＡＲＡ．    

・ＣＯＥＦＦＩＣＩＥＮＴ（Ｔｂ）    
         ＋０．０００００ Ｅ＋０
 ・ＣＯＥＦＦＩＣＩＥＮＴ（Ｔｃ）    
         ＋０．０００００ Ｅ＋０
                     
                     
                     
                     
                     
−−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ 
                     
／                    
−−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＦＬＯＷ（ＳＯＬＩＤ）ＰＡＲＡ．    

・ＣＯＥＦＦＩＣＩＥＮＴ（Ｄａ）    
         ＋１．０００００ Ｅ＋０
 ・ＣＯＥＦＦＩＣＩＥＮＴ（Ｄｂ）    
         ＋０．０００００ Ｅ＋０
 ・ＣＯＥＦＦＩＣＩＥＮＴ（Ｄｃ）    
         ＋０．０００００ Ｅ＋０
 ・ＣＯＥＦＦＩＣＩＥＮＴ（Ｔａ）    
         ＋１．０００００ Ｅ＋０
                     
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
E-880TM-3-E
10
6.4.22 Solids Content Flowrate - Calculation Setup (FLOW (SOLID) PARA.)
As parameters associated with flowrate calculation of solids content, coefficients Da, Db, Dc, Ta, Tb, and
Tc are set up here.
※ These settings are used only in Model EL4311. They are not shown in other models.
＜Calculation Formula＞
Ｄ
X
：Density
ｔ
X
： Temperature
Ｄａ to Ｄｃ： Coefficients for density
Ｔａ to Ｔｃ： Coefficients for temperature

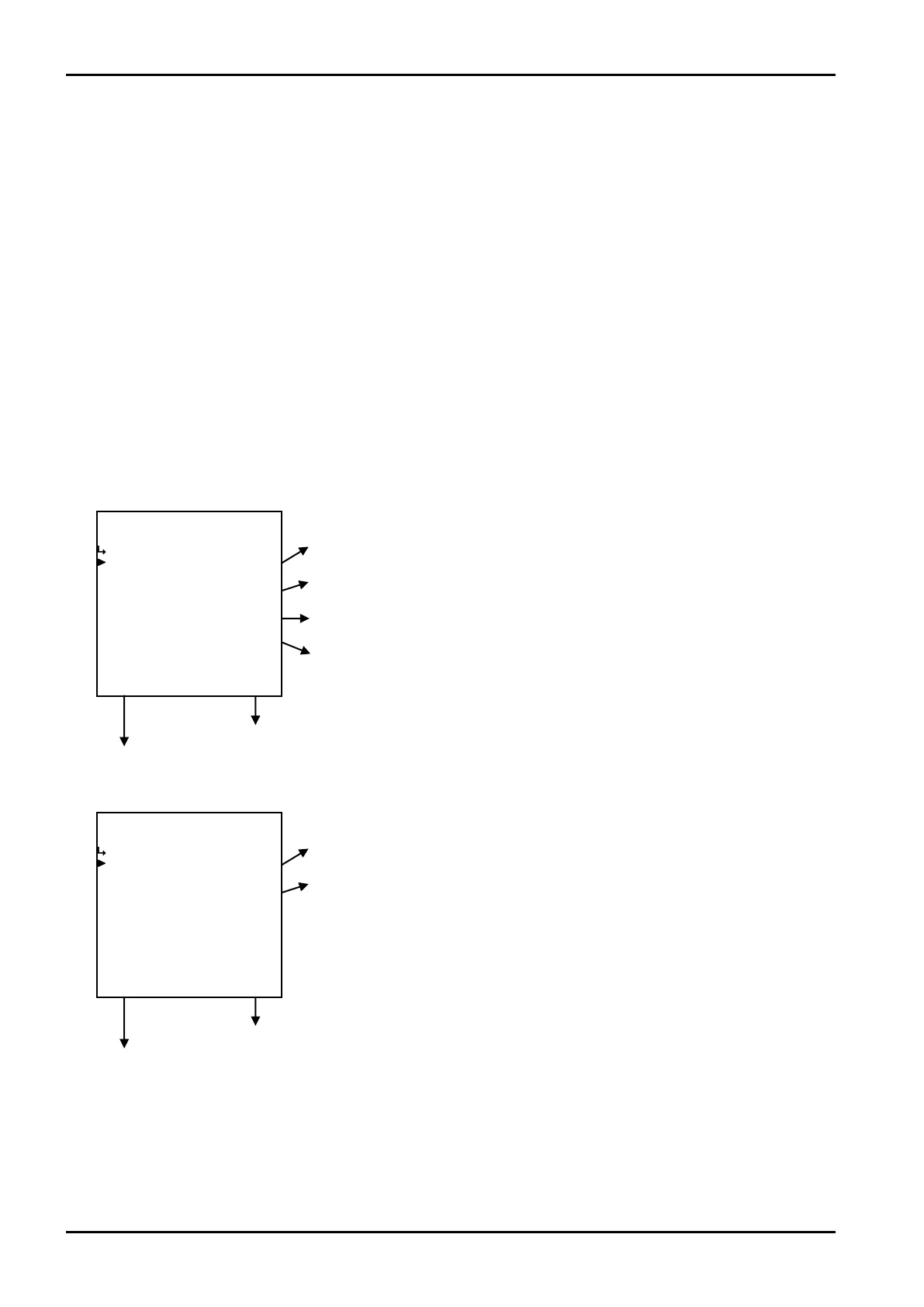

（1）Solids content flowrate calculation submenu screen
At the submenu, move the cursor to the desired setup item with the up and down arrow keys.
At the touch of function key “ENTR”, the screen switches to the desired item setup screen.
① Solids content flowrate calculation - coefficient Da setup (COEFFICIENT (Da)) p. 121
② Solids content flowrate calculation - coefficient Db setup (COEFFICIENT (Db)) p. 121
③ Solids content flowrate calculation - coefficient Dc setup (COEFFICIENT (Dc)) p. 121
④ Solids content flowrate calculation - coefficient Ta setup (COEFFICIENT (Ta)) p. 122
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
⑤ Solids content flowrate calculation - coefficient Tb setup (COEFFICIENT (Tb)) p. 122
⑥ Solids content flowrate calculation - coefficient Tc setup (COEFFICIENT (Tc)) p. 122
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
X
S
＝（Da＋Db×D
X
＋Dc×D
X
2
） ×（Ta＋Tb×t
X
＋Tc×t
X
2
）
