Oval EL4101 - Density Calculation Setup Submenu Screen

                     
／                    
−−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＤＥＮＳＩＴＹ ＰＡＲＡＭＥＴＥＲ   

・ＵＮＩＴ               
                  ｇ／ｌ
 ・ＵＮＤＥＲ ＡＬＡＲＭ ＰＯＩＮＴ  
         ＋８．５００００ Ｅ＋２
 ・ＯＶＥＲ ＡＬＡＲＭ ＰＯＩＮＴ   
         ＋１．１５０００ Ｅ＋３
 ・ＵＮＤＥＲ ＦＡＬＬＢＡＣＫ    
         ＋８．０００００ Ｅ＋２
                     
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
                     
／                    
↑−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＤＥＮＳＩＴＹ ＰＡＲＡＭＥＴＥＲ   

・ＯＶＥＲ ＦＡＬＬＢＡＣＫ     
         ＋１．２００００ Ｅ＋３
 ・ＲＥＦ． ＴＥＭＰ．         
         ＋２．０００００ Ｅ＋１
 ・ＡＩＲ ＤＥＮＳ．          
         ＋１．２００００ Ｅ＋０
 ・ＡＩＲ ＴＥＭＰ．          
         ＋２．０００００ Ｅ＋１
                     
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
E-880TM-3-E
103

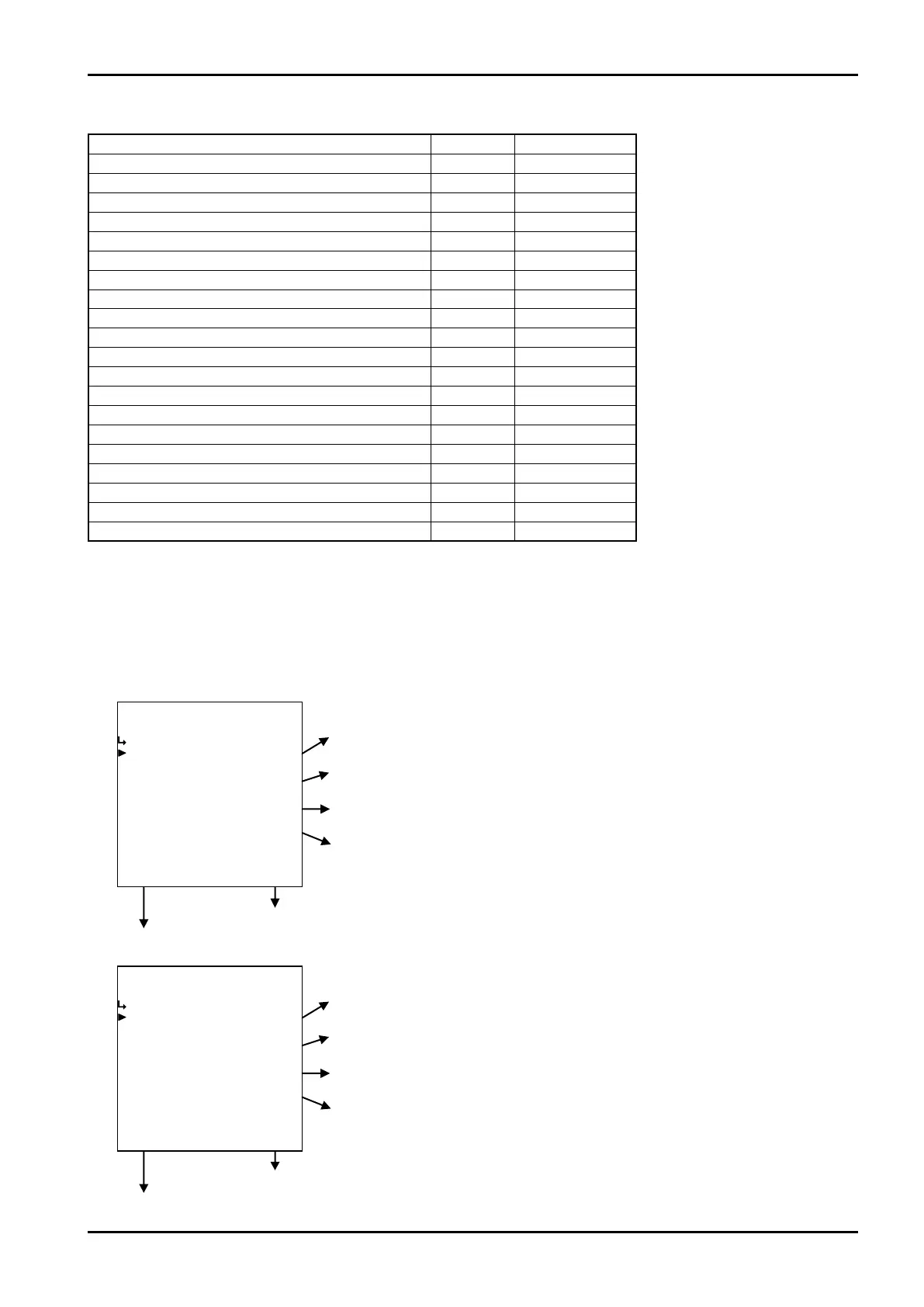

Submenu item
Input type in the SYS mode ※ None Pulse input
Unit Displayed Displayed
Constant Displayed Hidden
Baseline
Hidden Displayed
Full scale
Hidden Displayed
Under alarm point
Hidden Displayed
Over alarm point
Hidden Displayed
Under fallback level
Hidden Displayed
Over fallback level
Hidden Displayed
Reference temperature setup
Displayed Displayed
Density with air
Hidden Displayed
Air temperature during calibration
Hidden Displayed
Density period with air
Hidden Displayed
Density with water
Hidden Displayed
Water temperature during calibration
Hidden Displayed
Density period with water
Hidden Displayed
Temp. comp. Coeff. of tube spring const.
Hidden Displayed
Reference temperature conversion factor of density
Displayed Displayed
Density of carrier fluid
Displayed Displayed
Density of target fluid Displayed Displayed
Conditions to show submenu items
※：Conditions for selecting on-screen information
（1）Density calculation setup submenu screen
At the submenu, move the cursor to the desired setup item with the up and down arrow keys.
At the touch of function key “ENTR”, the screen switches to the desired item setup screen.
① Density calculation - unit setup (UNIT) p. 105
③ Density calculation - under alarm point setup (UNDER ALARM POINT) p. 106
④ Density calculation - over alarm point setup (OVER ALARM POINT) p. 106
⑤ Density calculation - under fallback level (UNDER FALLBACK) p. 106
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
⑥ Density calculation - over fallback level (OVER FALLBACK) p. 107
⑦ Density calculation - reference temperature setup (REF. TEMP.) p. 107
⑧ Density calculation – density with air (AIR DENS.) p. 107
⑨ Density calculation – air temperature during calibration (AIR TEMP.) p. 108
① Density pulse input
