↑−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＴＥＭＰ． ＣＯＭＰＥＮ  

・ＣＯＮＳＴＡＮＴ ｄｏ        
         ＋７．０００００ Ｅ＋１
 ・ＣＯＮＳＴＡＮＴ Ｋ         
         ＋１．０００００ Ｅ＋０
 ・ＣＡＬＩＢ． ＴＥＭＰ ｔｃａｌ   
         ＋２．０００００ Ｅ＋１
 ・ＴＥＭＰ． ＣＯＥＦ． α      
         ＋０．０００００ Ｅ＋０
                     
−−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
                     
／                    
−−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＴＥＭＰ． ＣＯＭＰＥＮ    

・ＵＮＩＴ               
                  ｇ／ｌ
 ・ＣＯＮＳＴＡＮＴ
         ＋１．０００００ Ｅ＋０
 ・ＭＥＡＳＵＲＥ ＳＥＬ．       
                 ＧＡＳＳ
 ・ＣＯＮＳＴＡＮＴ Ｔｏ        
         ＋３．５００００ Ｅ＋２
                  
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ 
                     
／                    
↑−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＤＥＮＳＩＴＹ ＰＡＲＡＭＥＴＥＲ   

・ＣＯＮＳＴＡＮＴ Ｋ         
         ＋１．０００００ Ｅ＋０
 ・ＣＡＬＩＢ． ＴＥＭＰ． ｔｃａｌ  
         ＋２．０００００ Ｅ＋１
 ・ＴＥＭＰ． ＣＯＥＦ． α      
         ＋０．０００００ Ｅ＋０
                     
                     
                     
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
                     
／                    
↑−−−−＜ＳＥＴ ＭＯＤＥ＞−−−−−−

ＤＥＮＳＩＴＹ ＰＡＲＡＭＥＴＥＲ   

・ＯＶＥＲ ＦＡＬＬＢＡＣＫ     
         ＋２．０００００ Ｅ＋０
 ・ＭＥＡＳＵＲＥ． ＳＥＬ．      
                 ＧＡＳＳ
 ・ＣＯＮＳＴＡＮＴ Ｔｏ        
         ＋３．５００００ Ｅ＋２
 ・ＣＯＮＳＴＡＮＴ ｄｏ        
         ＋７．０００００ Ｅ＋１
                     
↓−−−−＜ＳＵＢ  ＭＥＮＵ＞−−−−−
 ＭＡＩＮ｜    ｜    ｜     
 ＭＥＮＵ｜    ｜    ｜ＥＮＴＲ
E-880TM-3-E
1

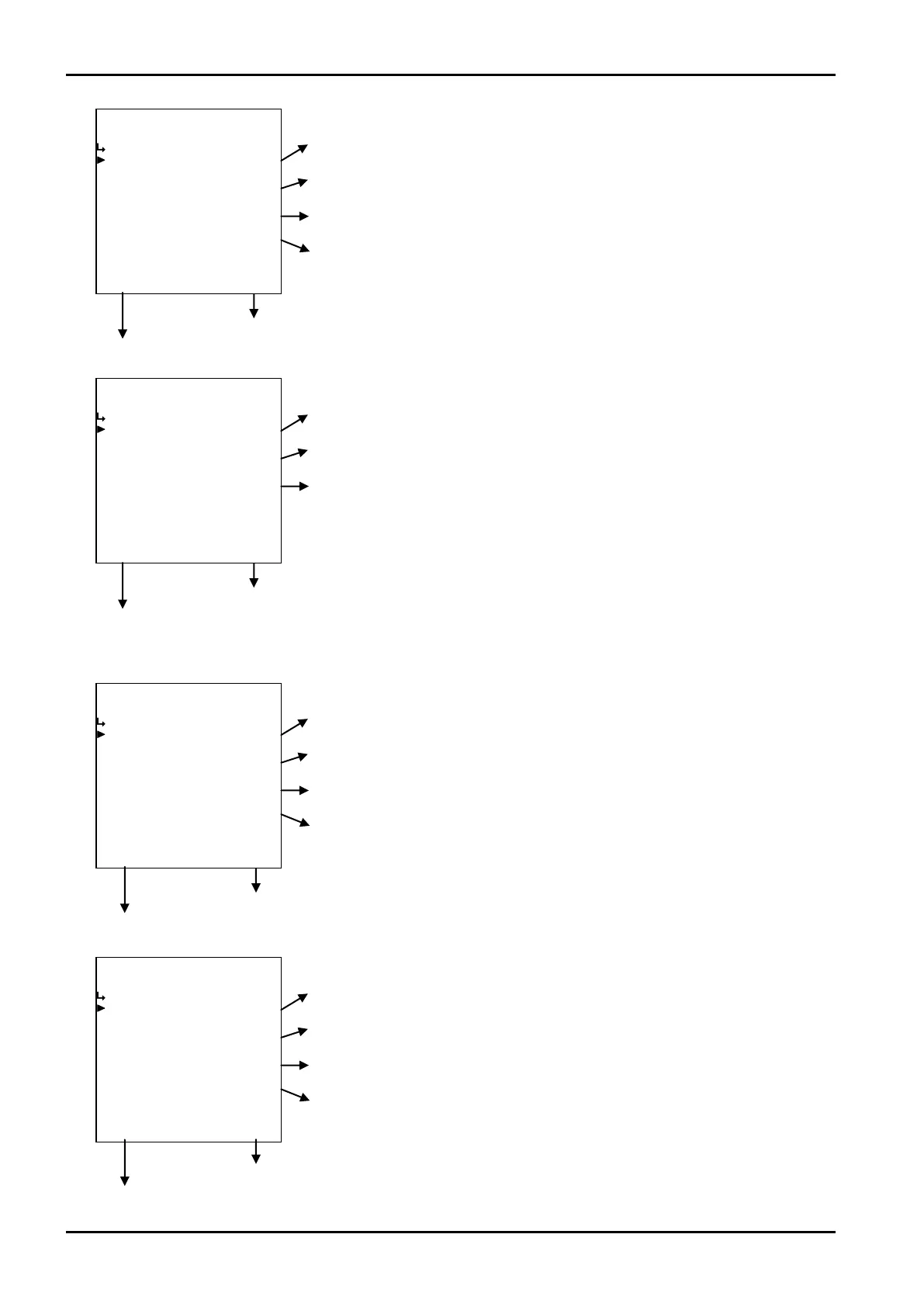

⑥ Density calculation - over fallback level (OVER FALLBACK) p. 127
⑦ Density calculation - measure. type selection (MEASURE. SEL.) p. 127
⑧ Density calculation - period time under vacuum (CONSTANT T
0
) p.128
⑨ Density calculation - constant d
0
(CONSTANT d
0
) p. 128
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
⑩ Density calculation - constant K (CONSTANT K) p. 128
⑪ Density calculation - temperature during calibration t
cal
(CALIB. TEMP. t
cal
) p. 129
⑫ Density calculation - temperature coefficientg α(TEMP. COEF. α) p. 129
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
① Density calculation - unit setup (UNIT) on page 125
② Density calculation - constants (CONSTNAT) on page 126
⑦ Density calculation - measurement type selection (MEASURE. SEL) p. 127
⑮ Density calculation - period time under vacuum (CONSTANT T0) p. 128
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
⑨ Density calculation - constant d
0
(CONSTANT d
0
) p. 128
⑩ Density calculation - constant K (CONSTANT K) p. 128
⑪ Density calculation - temp. during calibration t
cal
(CALIB. TEMP. t
cal
) p. 129
⑫ Density calculation - temperature coeff. α (TEMP. COEF. α) p. 129
To the setup screen pointed by the cursor
SET mode main menu screen ⇒ 6.2 SET mode main menu screen p. 36
② Constants are selected
