Applications
R&S
®
RTM3000
198User Manual 1335.9090.02 ─ 09
Distance
Defines a distance between two subsequent peaks that has to be kept for the peak to
be detected.
Remote command:
SPECtrum:MARKer:SETup:DISTance on page 551

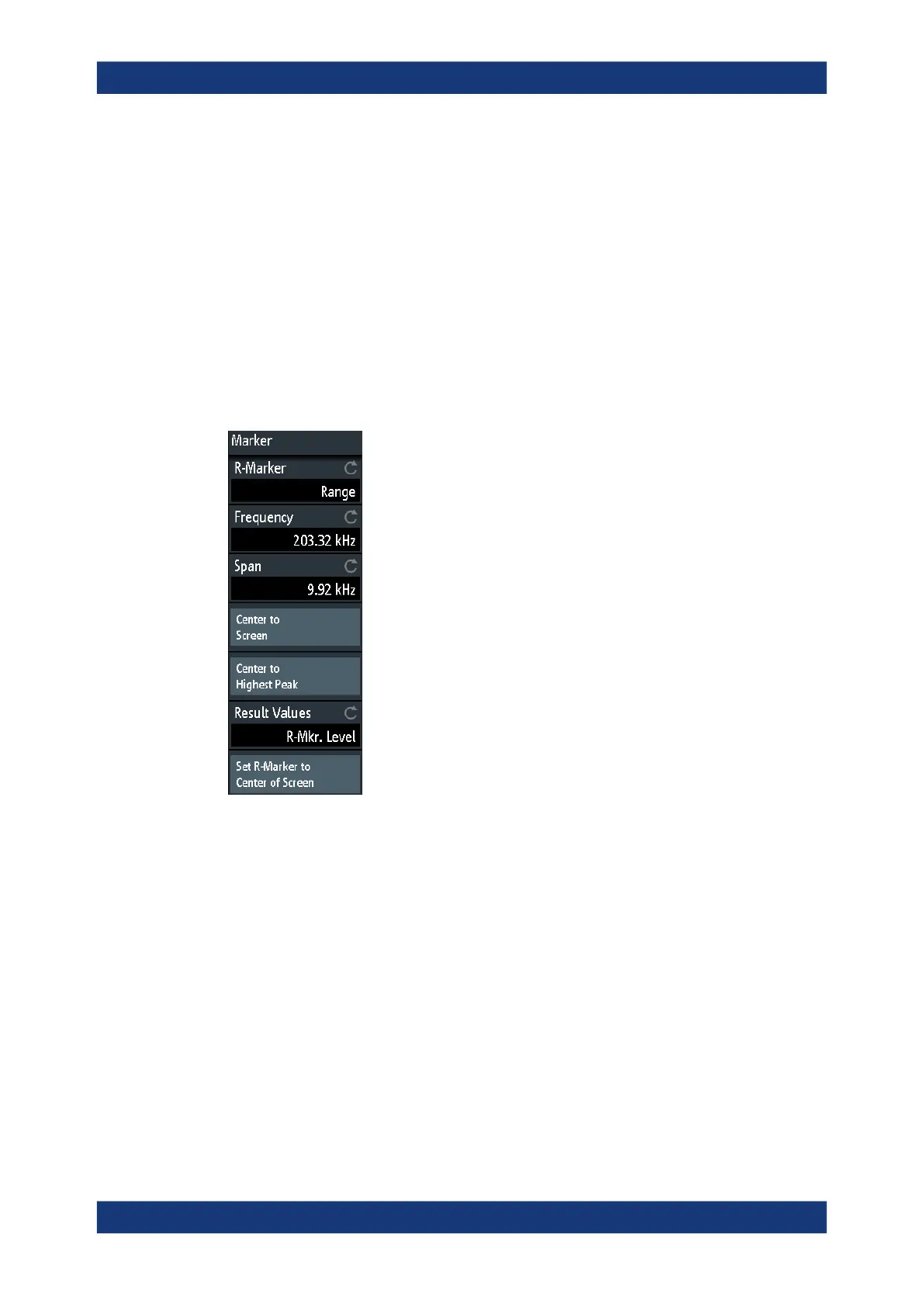

9.4.3.3 R-Marker settings
Access: "FFT" menu > enable "Peak List" > "Marker" > "R-Marker"
You can define a reference marker and get the peak results as delta values to the val-
ues of the reference marker. The reference marker is displayed on the waveform as a
filled orange triangle.
R-Marker
Defines the mode for the selection of the reference peak.
"Off"
Disables the reference marker.
"Indicated"
The reference marker is set to the peak with a specified index num-
ber.
"Range"
The peak with the highest level within the specified range is set as
the reference marker.
Remote command:
SPECtrum:MARKer:REFerence:SETup:MODE on page 552
Index
Defines the number of the peak to which the reference marker is set if "R-Marker" =
"Indicated"
Remote command:
SPECtrum:MARKer:REFerence:SETup:INDex on page 552
Spectrum analysis and spectrogram (option R&S
RTM-K37)
