Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
388User Manual 1335.9090.02 ─ 09
General settings

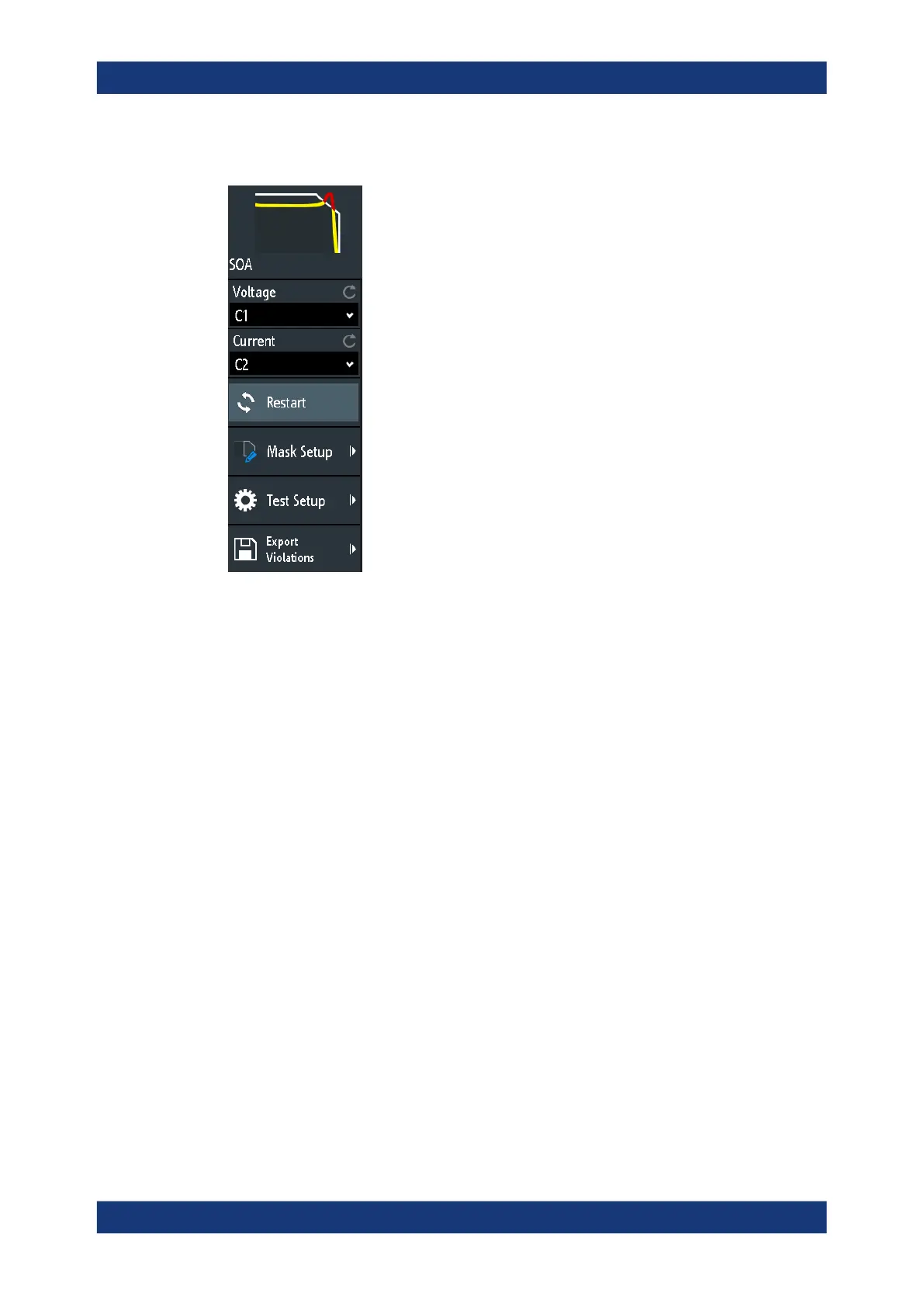

The settings for the voltage and current sources are the same as for quality analysis,
see "Voltage" on page 350 and "Current" on page 350.
Restart
Restarts the SOA measurement.
Remote command:
POWer:SOA:RESTart on page 758
Mask Setup
Opens a menu for configuring the mask, see "Mask settings" on page 388.
Test Setup
Opens a menu to define the tolerance of the test setup as well as the window scale,
see "Test settings" on page 390.
Export Violations
Opens a menu to save the measurement results to an Excel file.
Mask settings
In this menu you can define the mask settings.
