Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
390User Manual 1335.9090.02 ─ 09
Remote command:
POWer:SOA:LINear:POINt<m>:CURRent on page 752
POWer:SOA:LINear:POINt<m>:CURRent:MAXimum on page 752
POWer:SOA:LOGarithmic:POINt<m>:CURRent on page 752
POWer:SOA:LOGarithmic:POINt<m>:CURRent:MAXimum on page 752
Add Point
Adds a point to the safe operating area definition list.
Remote command:
POWer:SOA:LINear:ADD on page 751
POWer:SOA:LINear:INSert on page 751
POWer:SOA:LOGarithmic:ADD on page 751
POWer:SOA:LOGarithmic:INSert on page 751
Remove Point
Removes the selected point from the safe operating area definition list.
Remote command:
POWer:SOA:LINear:REMove on page 753
POWer:SOA:LOGarithmic:REMove on page 753
Mask Scale
Selects the scale for the mask, linear or logarithmic.
Remote command:
POWer:SOA:SCALe:MASK on page 758
Save Mask
Opens a menu to save the mask.
Load Mask
Opens a file explorer to select a previously stored mask. The selected mask is loaded
and can be used for a subsequent test.

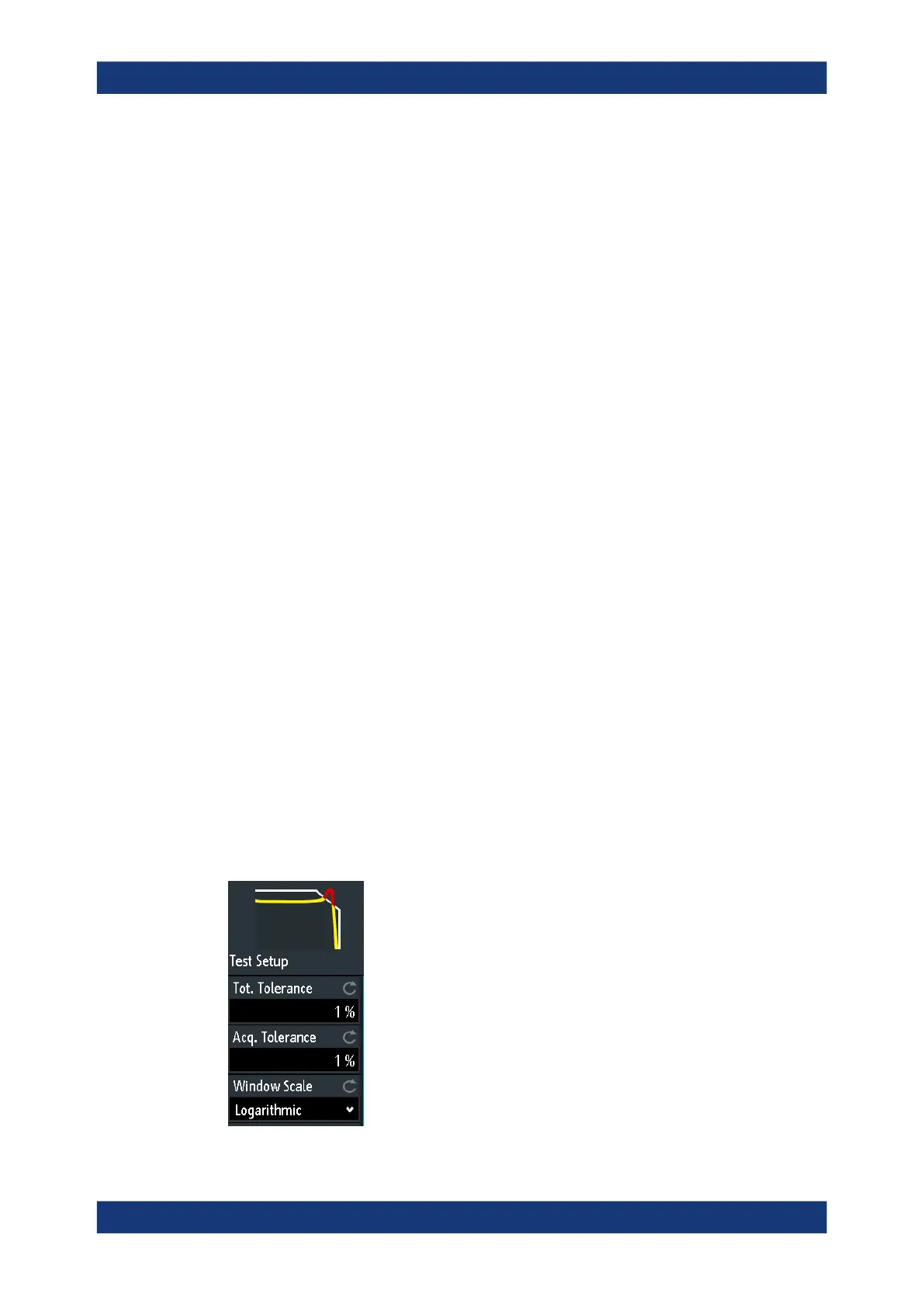

Test settings
In this menu you can define the tolerance of the test setup as well as the window scale.
Power path power measurements
To Next Page
