Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
389User Manual 1335.9090.02 ─ 09

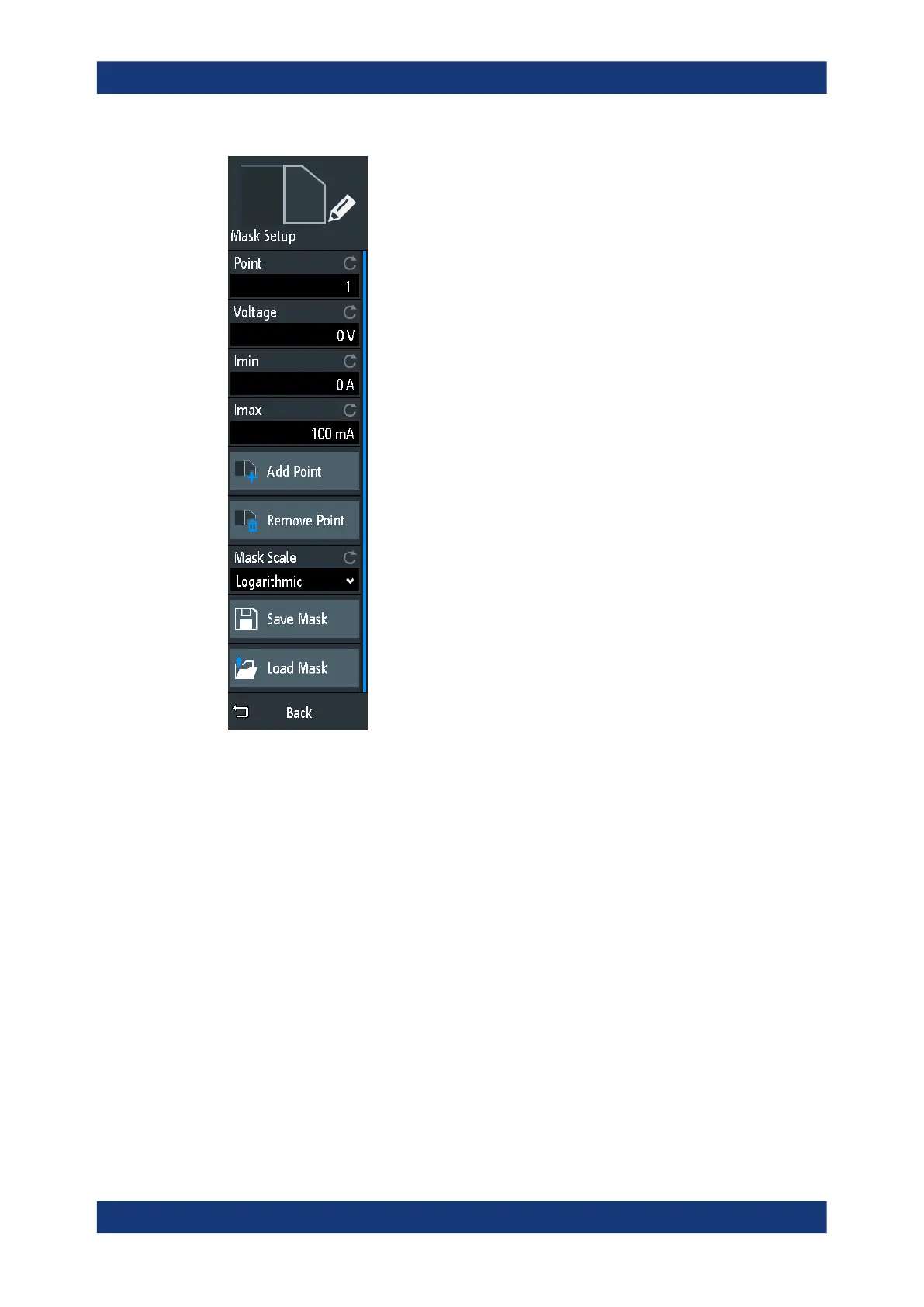

Point
Selects the point to be defined.
Voltage
Sets the voltage for the selected point.
Remote command:
POWer:SOA:LINear:POINt<m>:VOLTage on page 752
POWer:SOA:LOGarithmic:POINt<m>:VOLTage on page 752
Imin
Sets the minimum current for the selected point.
Remote command:
POWer:SOA:LINear:POINt<m>:CURRent:MINimum on page 752
POWer:SOA:LOGarithmic:POINt<m>:CURRent:MINimum on page 752
Imax
Sets the maximum current for the selected point.
Power path power measurements
