Protocol analysis
R&S
®
RTP
681User Manual 1337.9952.02 ─ 12

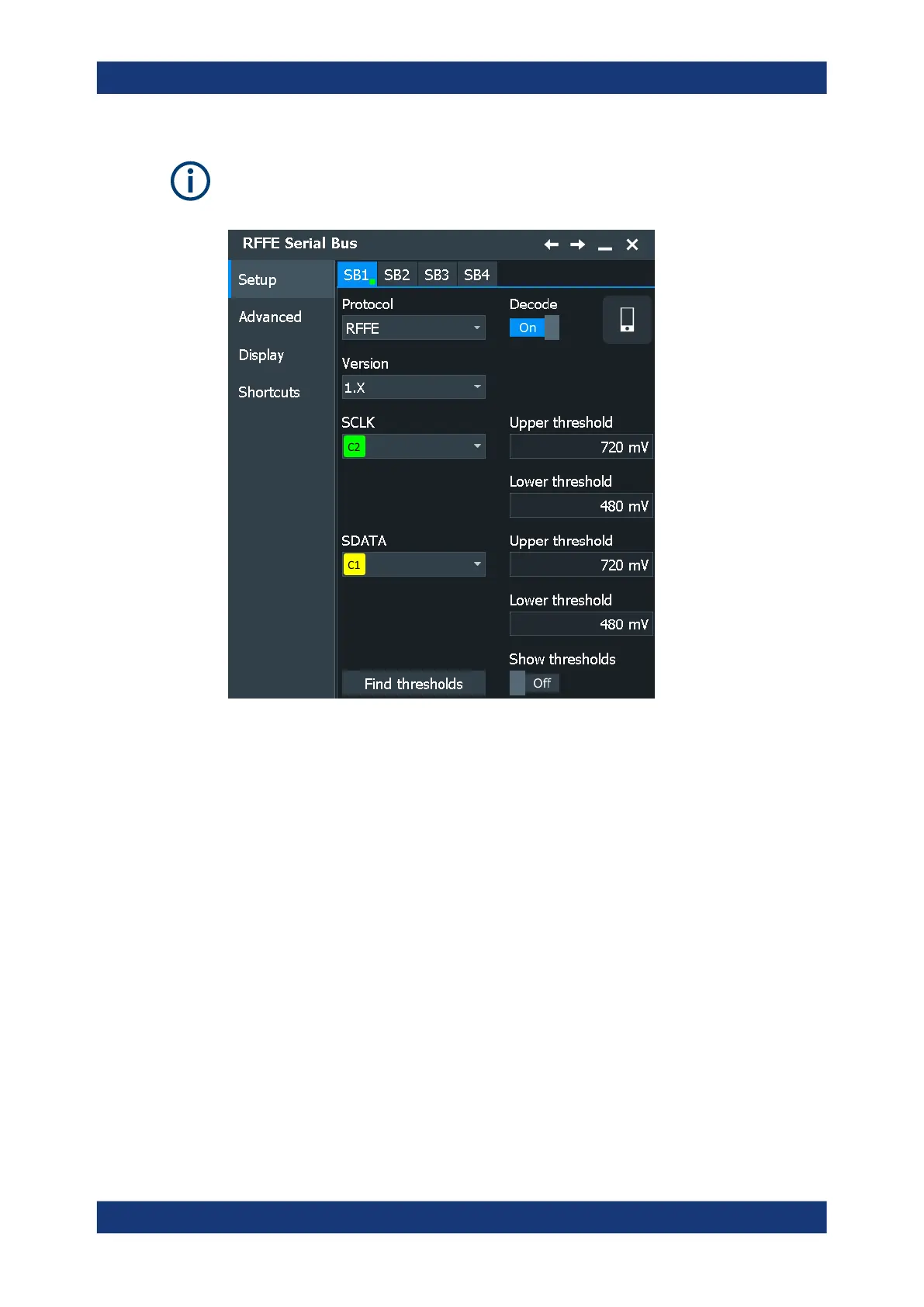

Make sure that the tab of the correct serial bus is selected.
See also: Chapter 13.1.1, "Setup - general settings", on page 512
Version
Selects the RFFE version. Supported are 1.x, 2.0, and 2.1.
Remote command:
BUS<m>:RFFE:VERSion on page 1816
Read mode
Selects, if the standard or synchronous read ("sRead") mode is used.
Remote command:
BUS<m>:RFFE:RDMD on page 1816
SCLK Source
Sets the source of the clock line.
Usually, the source is one of the analog channels. Reference and math waveforms are
available as source if the trigger source is one of the analog channels but not the serial
bus.
Alternatively, digital channels can be used if MSO option R&S RTP-B1 is installed. Dig-
ital and analog channels cannot be used at the same time.
For triggering on a serial bus, analog or digital channel sources are required.
RFFE (option R&S
RTP-K40)
