Chapter 11: Operation and Alarm Unit Test and User Guide, Rev. 1.1
8. Re-install the back cover.
9. Insert the OAU through the mounting hole cut in the bridge console.
10. Install the rear mounting bracket over the long bolts. The rear mounting bracket must be installed
so that its lip pieces touch the underside of the bridge console.
11. Install washers and nuts on each bolt and tighten to secure the OAU. DO NOT over-tighten, this
will bend the back cover.

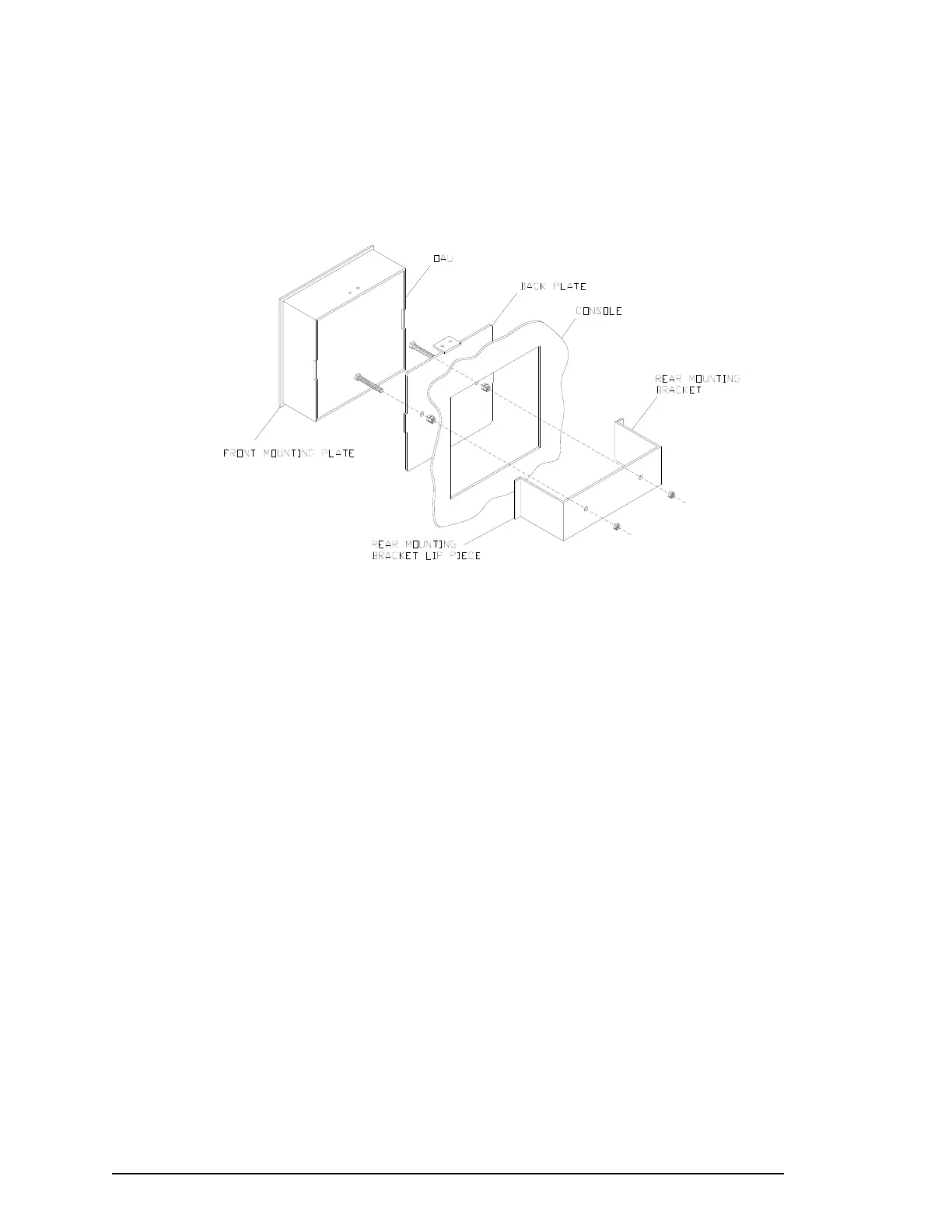

Figure 11-3 - OAU Mounting Assembly
VDR-100G3/G3S Installation Manual 06/10/2008
