Appendix 5: Playback Software, Rev. 1.1
A5.20 Water Doors Tab
The Water Doors Tab Screen displays information regarding the status of the ship’s water doors.
The colour of the light adjacent to the door name, dependant upon the configuration, indicates an
active (often indicated with the colour red) or non-active (often indicated with the colour green)
door or opening.
Should the number of water doors exceed the initial screen space, a scroll bar will become visible
allowing a user to view all available.

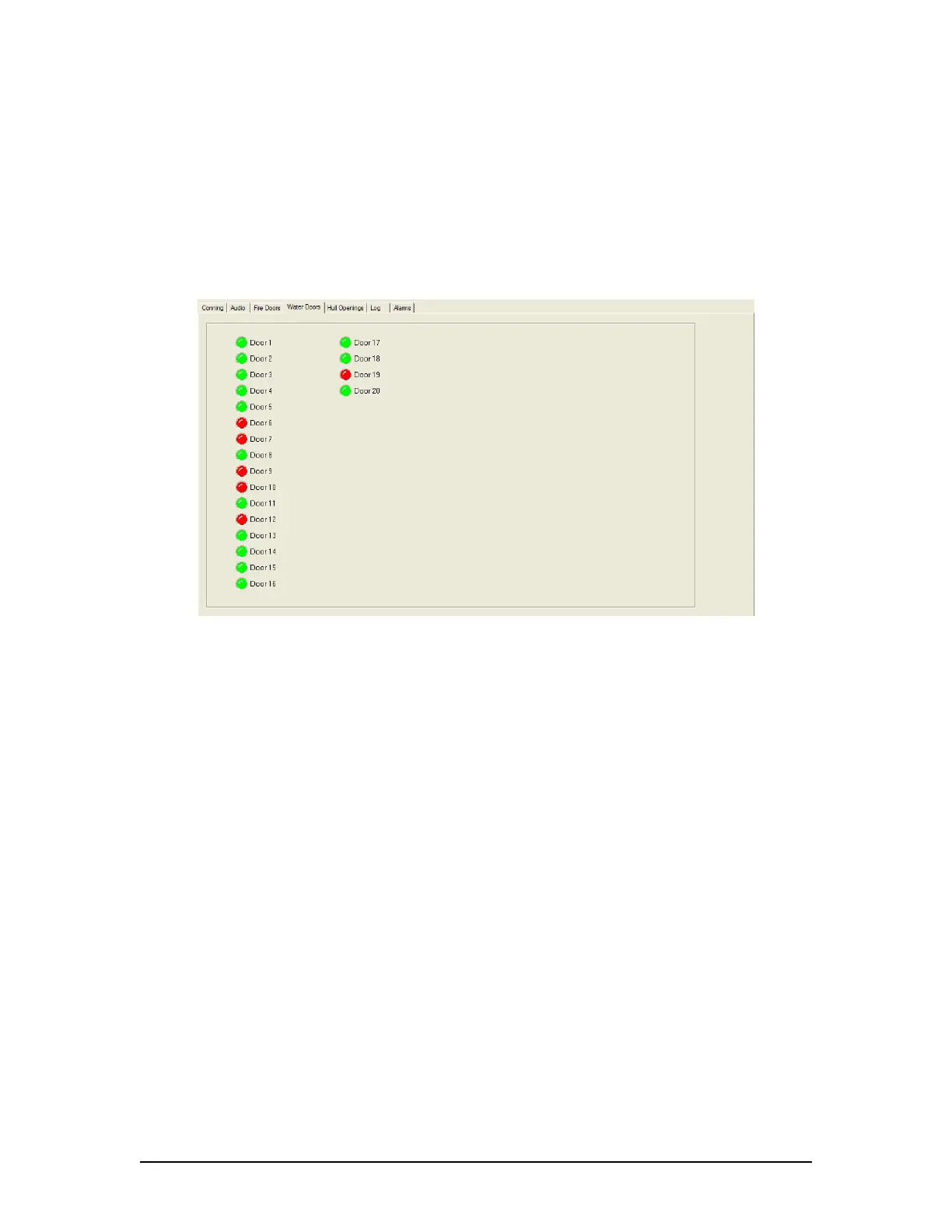

Figure 35 - Water Doors Tab
