Rutter VDR-100G3 - A2.7 Audio; A2.7.1 Number of Audio Output Channels

Appendix 2: System Configuration File, Rev. 1.1
A2.7 Audio

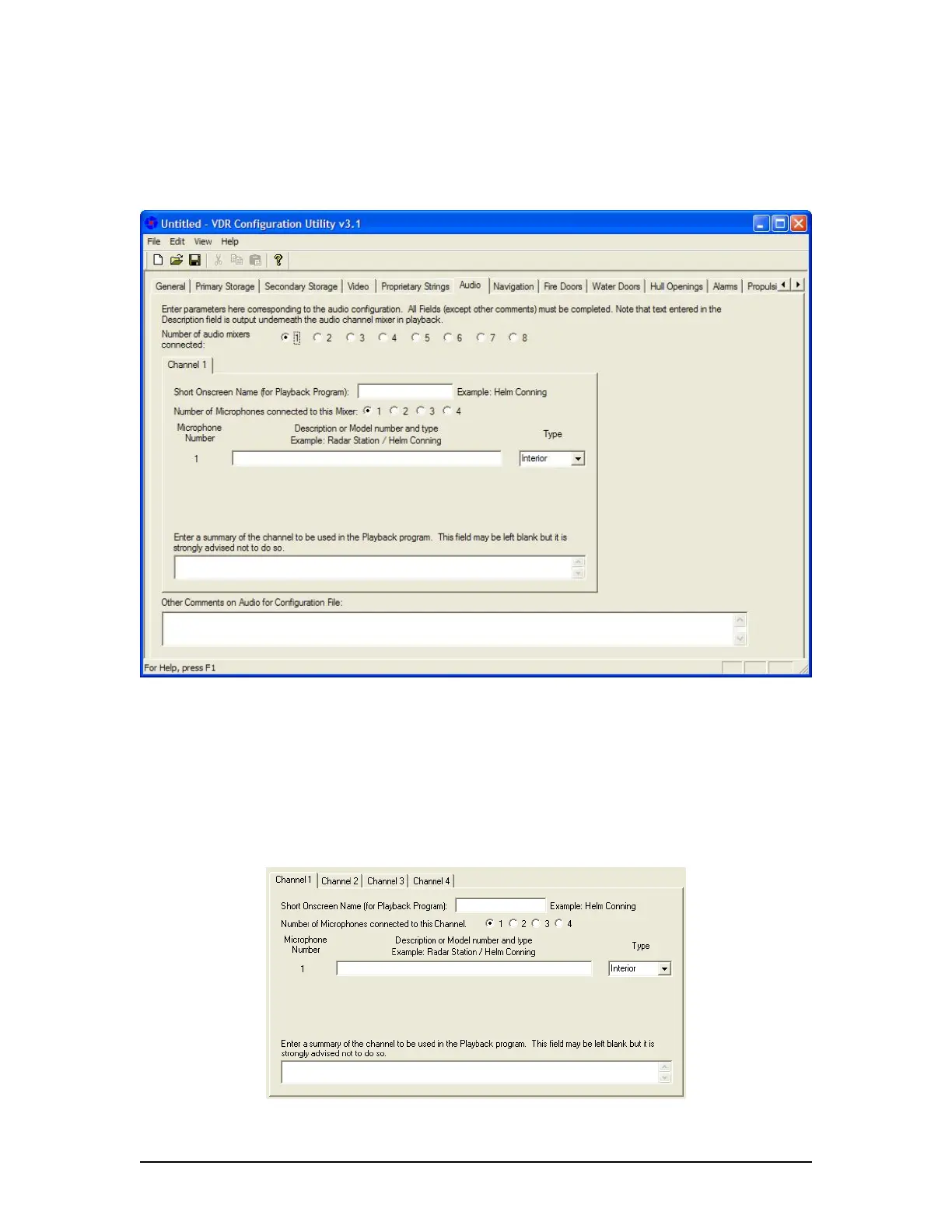

The ‘Audio’ tab requires the input of information specific to the audio configuration (see Figure
A2- 12 – Audio below).
Figure A2- 12 – Audio
The followings fields in the Audio tab window must be completed:
A2.7.1 Number of Audio Output Channels
Select the radio button (1, 2, 3, 4, 5, 6, 7, or 8) applicable to the number of audio channels (where
above figure references ‘audio mixers’) connected to the VDR. If more than one Audio Channel is
selected, the software will create the appropriate number of Channel tabs available for data entry
(see Figure A2- 13 - Audio Channel Information below).
Figure A2- 13 - Audio Channel Information
