4. The OAU will then display a message “USB Archiving has been
disabled for 1 hour”, meaning that which indicated it is safe to remove the
external device;
5. After approximately 10 seconds the OAU will display the message “USB:
Stby” for up to 1 hour, until the device is removed or disconnected;
6. To remove the USB Memory Stick open the USB compartment cover on
the DPU and unplug the USB Memory Stick;
7. To disconnect an RSM, turn off RSM power and unplug the RSM cable
from the USB compartment on the DPU.
NOTE: After the OAU LCD displays “USB: STBY” then the USB Memory Stick
should be removed immediately. If the USB Memory Stick is NOT unplugged
within 1 hour after the eject operation the VDR – 100G3 will erase all data on the
USB memory stick and begin recording data to it again.

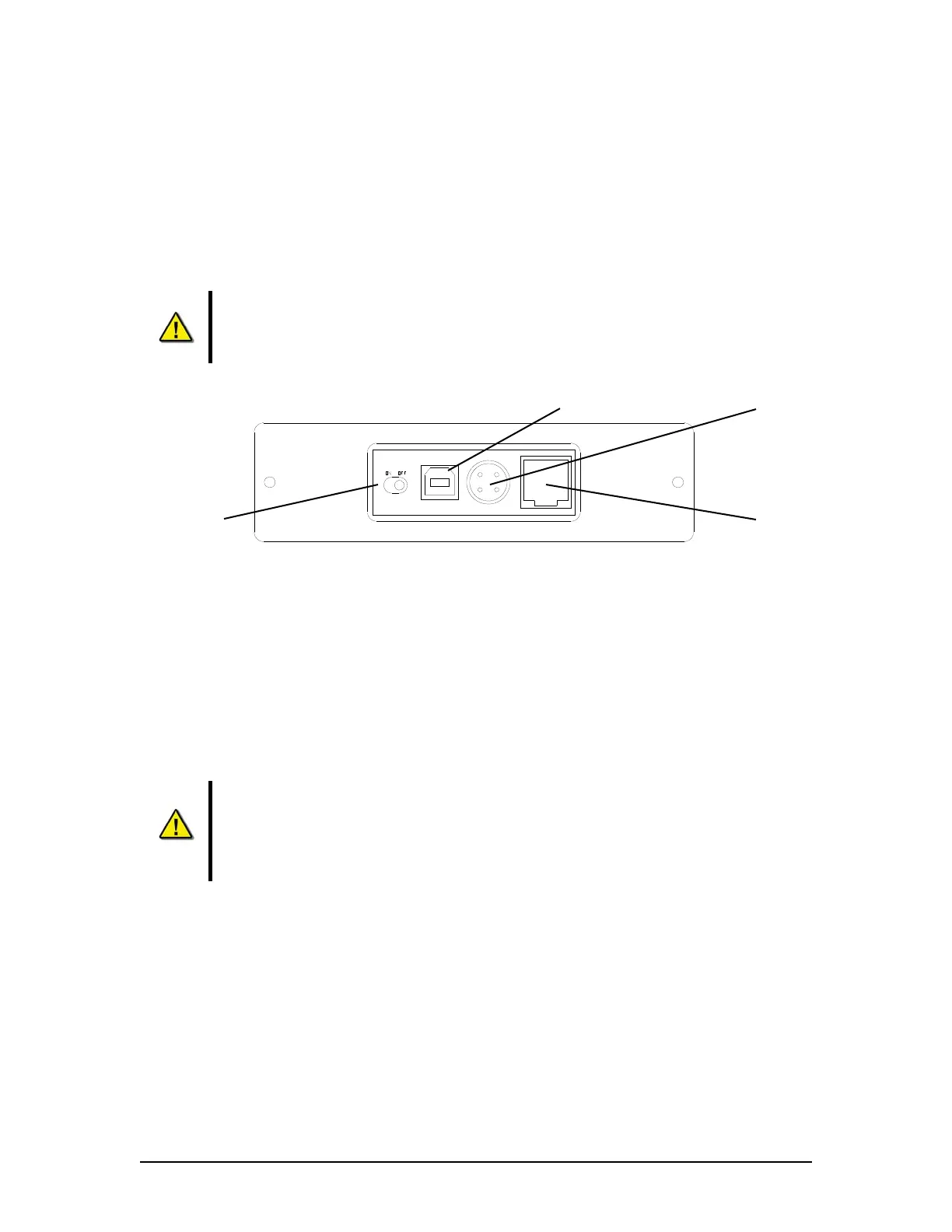

Figure 13-2 - Rear View of RSM Unit
13.3 Re-connecting the USB Memory Stick or RSM
To connect the USB Memory Stick, insert it into the USB compartment of the DPU or connect the
power and data cables to the RSM.
The system will detect the drive and the OAU will display “USB: Stby” If connecting a USB
Memory Stick, after at least 10 seconds, the system will begin recording to it and the OAU will
display a “USB: Rec”
Once the USB Memory Stick is physically connected, the VDR will automatically
detect it and begin the recording process to it. As part of this process, all data on
the USB Memory Stick will be deleted.
Once the RSM is physically connected, the VDR will automatically detect it. As part
of this process, all data on the RSM will be deleted.
Power Switch
USB 2.0 Port
Power Input
Ethernet Port
(not used)
