Chapter 4: Data Processing Unit, Rev. 1.2

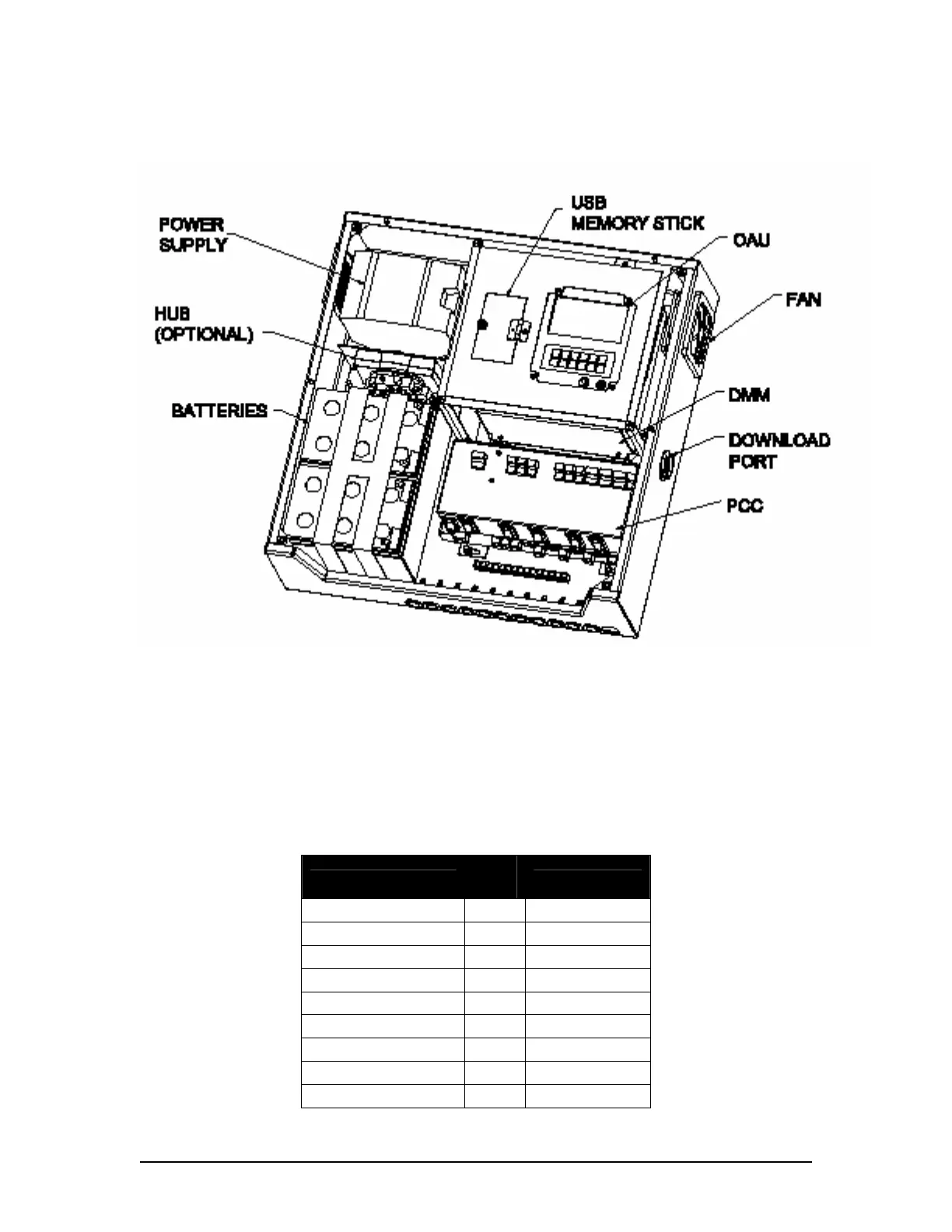

4.1.2 Layout of the DPU
Table 4-1 - Internal layout of the DPU
4.2 Ethernet Data
The Data Management Module (DMM) supports 5 Ethernet connections for the transfer of data to
and from the DMM. The physical connection of these Ethernet ports is either by a crossover or
straight thru connection.
4.2.1 DMM / Data Module IP Address
The IP Address for each of the data modules and associated DMM ports is listed below.
Port / Module Name
Port
Module
#
IP Address
DMM Download Port
(5)
200.200.200.200
Download PC 200.200.200.XXX
DMM Video Port
(3)
192.168.199.1
Video Module 192.168.199.228
DMM NMEA Port
(4)
192.168.199.25
DMM FRM Port
(2)
192.168.0.189
FRM 192.168.0.2
DMM Audio Port
(1)
192.168.200.189
Audio Module 192.168.200.228
VDR-100G3/G3S Installation Manual 06/10/2008
4-2
