Appendix 5: Playback Software, Rev. 1.1
A5.17 AIS Playback Tab
The ‘AIS Playback’ Tab Screen displays information captured from the ship’s AIS.

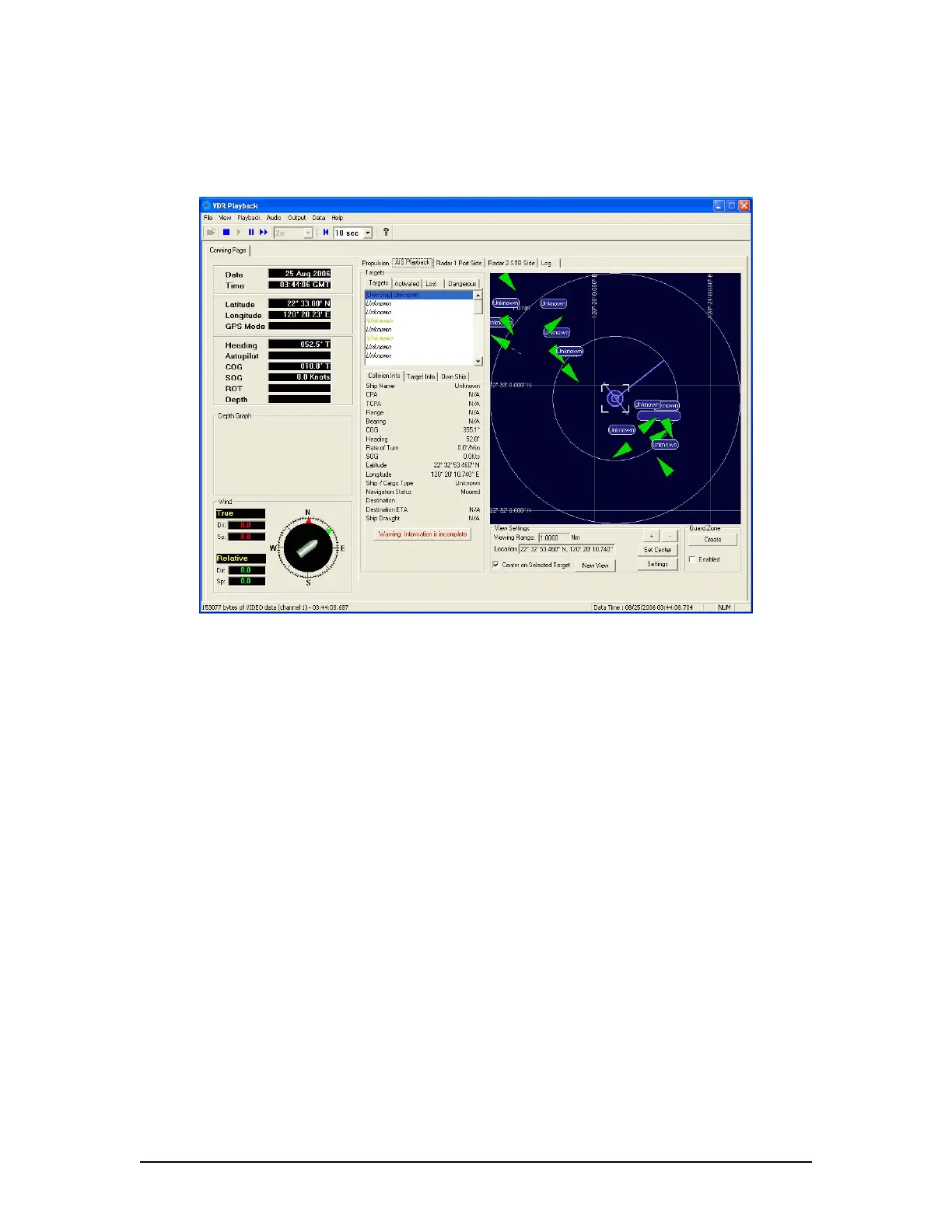

Figure 28 - AIS Playback Tab
There are a number of features available within the AIS Playback tab screen that allows a user to
better interpret the downloaded information.
A5.17.1 Targets
The Targets section of the AIS Playback tab screen provides a range of information about all
targets visible in the playback window.
Targets Tab – provides a list of all targets available within the AIS view screen. If a
target’s information becomes unavailable it remains in the list but a line is drawn through
its name (it is also added to the “Lost” tab list (see below)).
Activated Tab – provides the name of the target selected by the user in the AIS view
screen.
Lost Tab – provides a list of targets for which information is no longer available.
Dangerous Tab – provides a list of all targets that are currently on a dangerous course
relative to ownship.
VDR-100G3/G3S Installation Manual 06/10/2008
16
