Appendix 2: System Configuration File, Rev. 1.1
VDR-100G3/G3S Installation Manual 06/10/2008
39

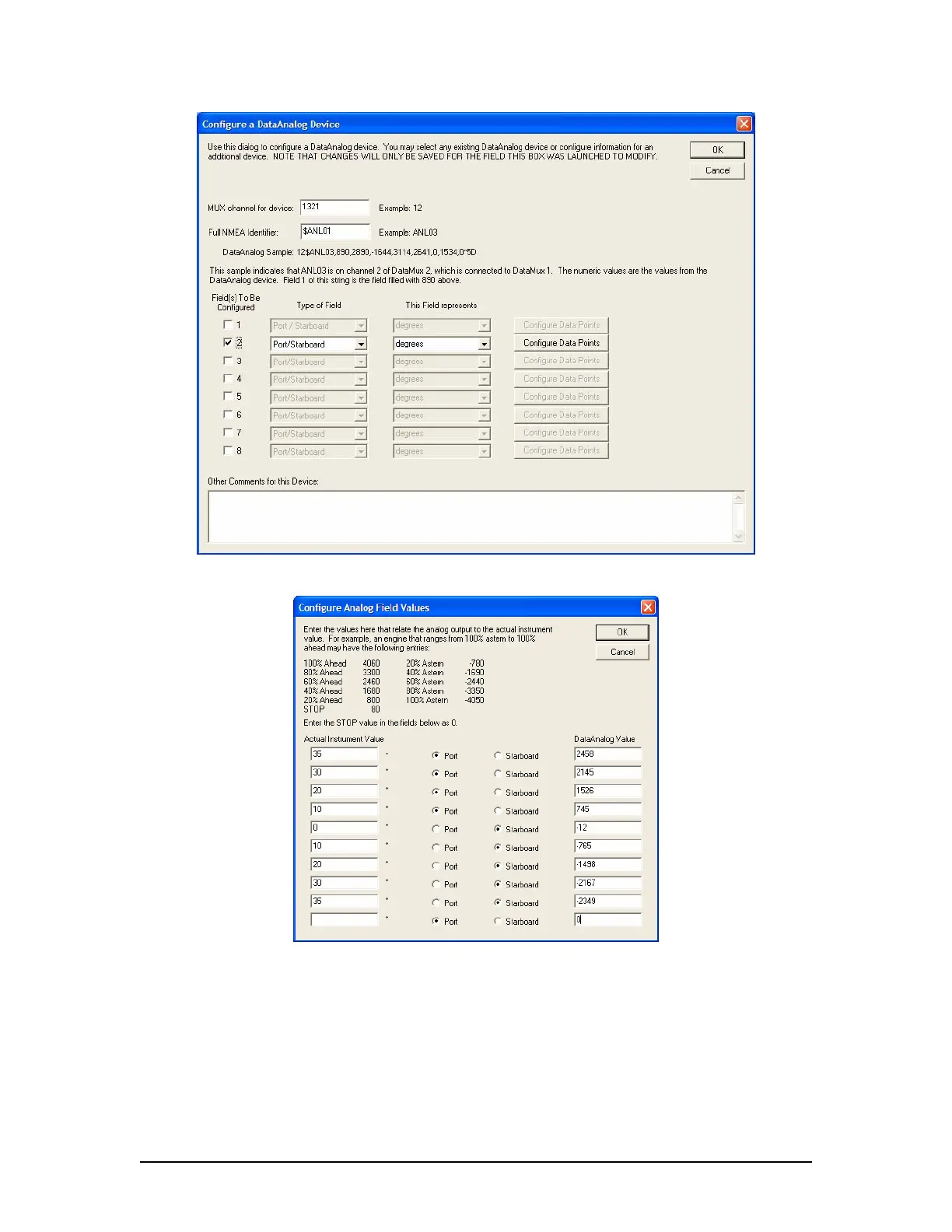

Figure A2- 38 - DataAnalog Configuration – Example 1
Figure A2- 39 - Analog Field Values – Example1
A2.16 Extra Information
The text box provided under the ‘Extra Information’ tab allows an area for the user to enter any
additional information regarding the ship’s configuration which he/she feels may be relevant to the
VDR installation in question.
