Chapter 11: OPERATION and ALARM UNIT TEST and USER GUIDE
11.8 Securing Data
To secure data to the DMM, complete the following steps:

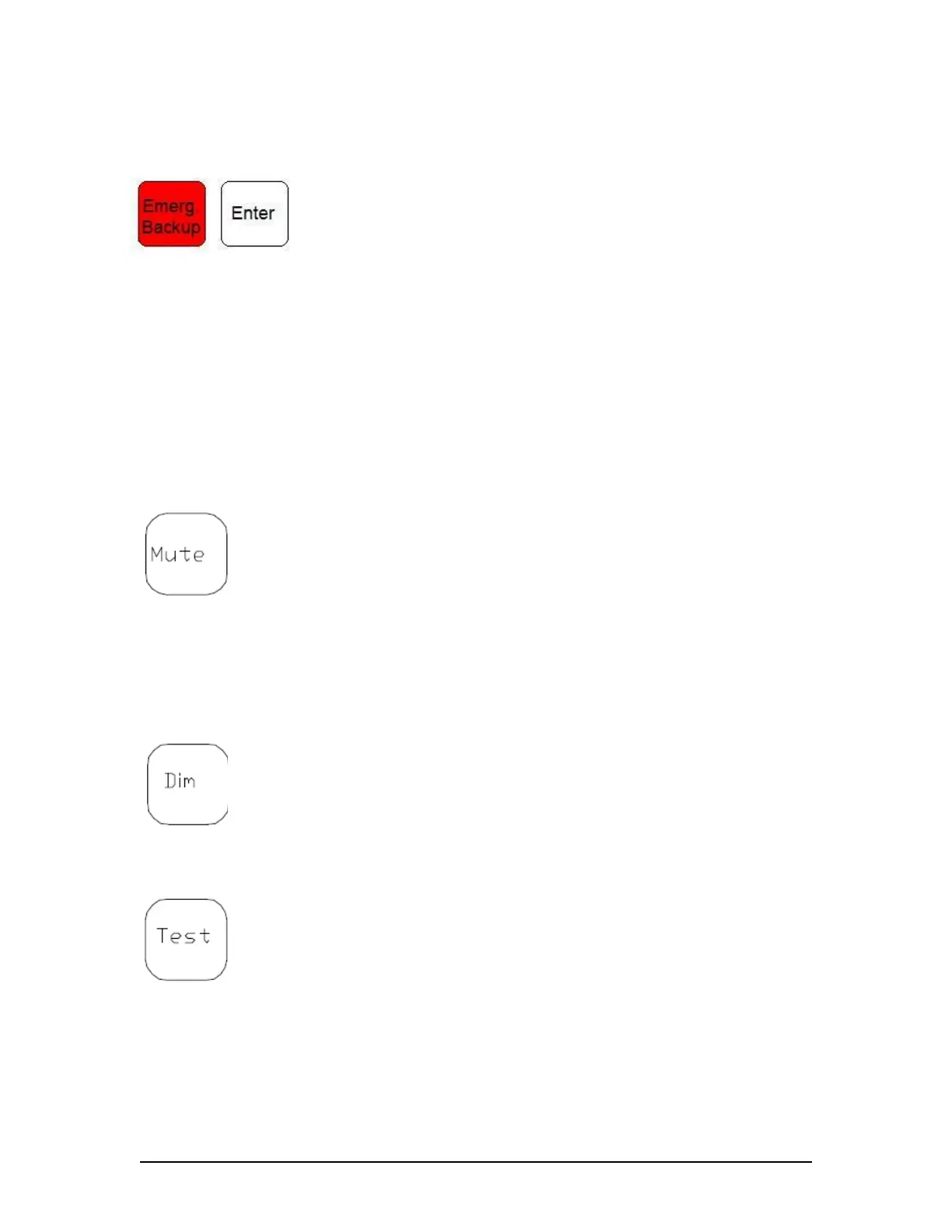

1. Press the “Emerg Backup” button on the OAU keypad.
The following message will appear on the OAU’s LCD:
“Perform Emergency Backup of VDR Data”
“<Enter to Confirm>”
2. Press the “Enter” button on the OAU keypad. The
following message will appear:
“Download Complete”
“<Enter” to Return>”
Note: This process will secure the current 12 hour data set; or all data since the last time the
Emergency Backup button was pressed if this was less than 12 hours ago.
11.9 Muting Audible Alarm
To mute the audible alarm, press the “Mute” key on the OAU
keypad.
For a list of alarm messages which appear on the OAU display,
please see Section 11.18 Status and Alarm Messages
The alarm message will remain on the display until the cause of
the alarm is resolved. Make note of all alarm messages to inform
the technical support provider.
11.10 Dimming the Display
To dim or brighten the LCD display press the “Dim” key on the
OAU keypad and toggle to any 1of the 4 brightness levels.
11.11 Test Screen
To get the VDR Record software version number or
the unique DMM Hardware ID, press the “Test” key
on the OAU keypad.
An example of the information provided via the
“Tests” menu, is as follows:
**Test Screen**
Version: 6.0X.00
ID: 55N5SS5S55X21
Press the “Cancel” button to return to the main
screen.
VDR-100G3/G3S Installation Manual 06/10/2008
11-7
