Appendix 2: System Configuration File, Rev. 1.1
A2.4 Secondary Storage
If the VDR is equipped with a secondary FRM, the ‘Secondary FRM’ tab will require the input of
information specific to the secondary FRM unit (See Error! Reference source not found.).

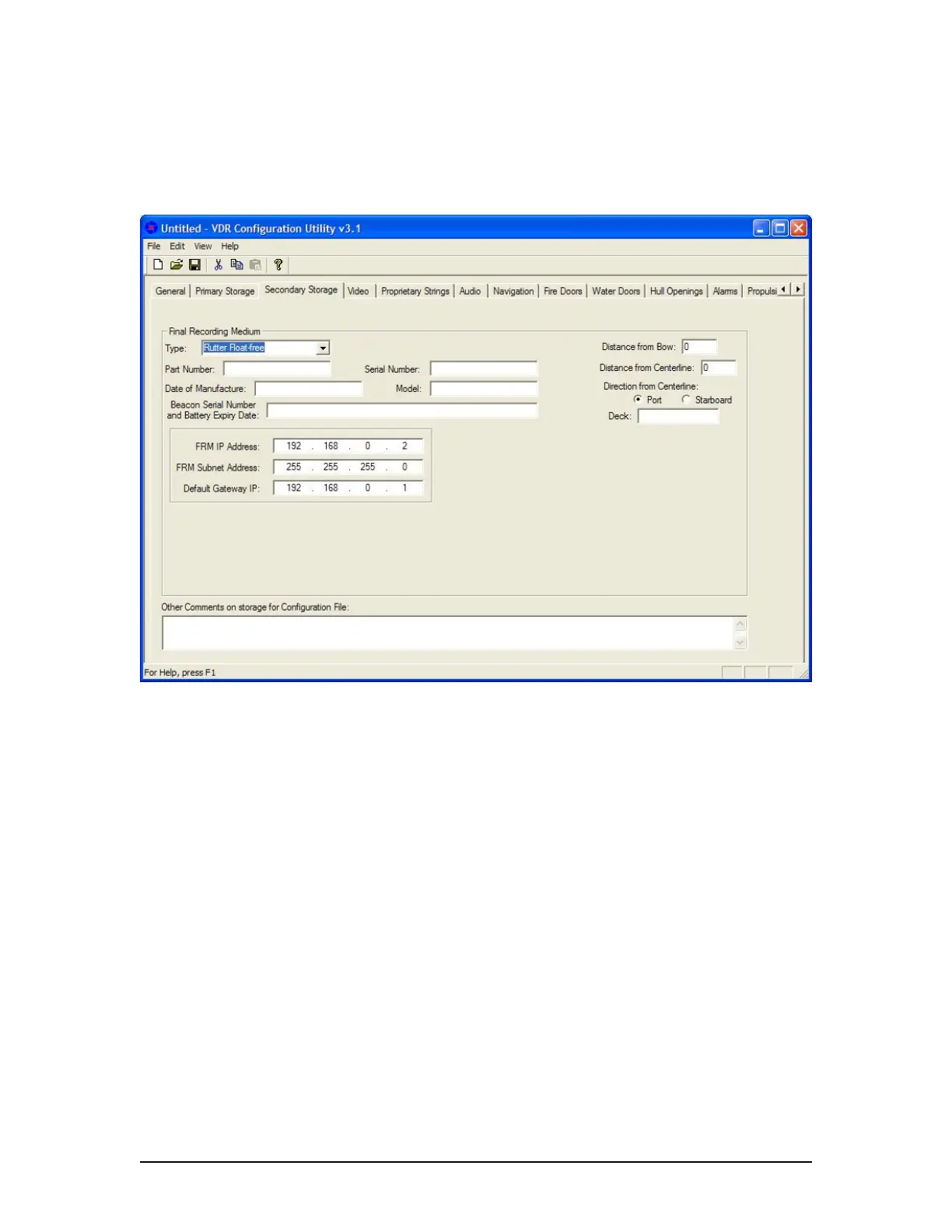

Figure A2- 5 - Secondary Storage
The following fields must be completed in the Secondary Storage tab window:
A2.4.1 Type
From the accompanying drop-down box, select the FRM model and manufacturer applicable to
the installation. Options available are:
 L3 HVR,
 Jotron SVDR,
 Rutter FRM (RUT-02447) Fixed,
 Rutter-ACR Float-Free or
 Not Installed (default).
A2.4.2 Part Number
Enter the FRM’s part number.
A2.4.3 Serial Number
Enter the FRM’s serial number.
