Appendix 5: Playback Software, Rev. 1.1
A5.2 Starting the Playback Application
To start the playback application, double click the playback icon located on the desktop (as
mentioned in step 4 of the installation process above). The application will look similar to Figure
6- Playback Software shown below.
Please note the playback application interprets information provided in the ship’s vdr-cfg.txt file.
Therefore, the playback interface may contain elements and controls different from what appears
below.

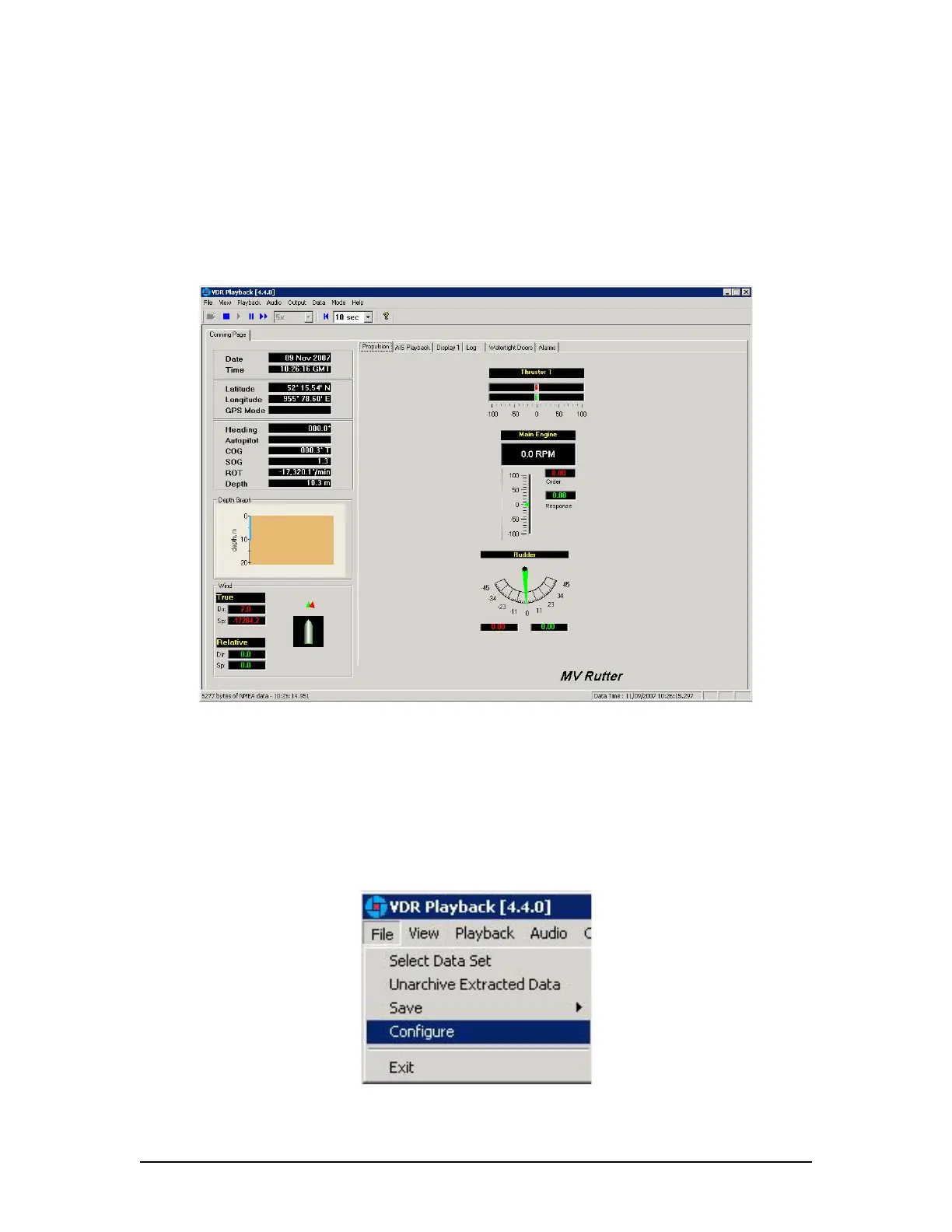

Figure 6- Playback Software
A5.2.1 Configuration File
The vessel information displayed in the Playback application is automatically configured via the
ship’s configuration file. This file is created by the installation technician during the installation of
the VDR and should be stored in an easily accessed location on the local hard drive of the
playback PC.
Upon start-up of the Playback application, the configuration file can be loaded using the File |
Configure menu item.
Figure 7- Configuration File Selection - Menu Item
VDR-100G3/G3S Installation Manual 06/10/2008
3
