SINUS PENTA
PROGRAMMING GUIDE
110/486
The figures below illustrate programming examples for REF analog input, if motor 1 is selected and in MASTER mode:
speed reference.

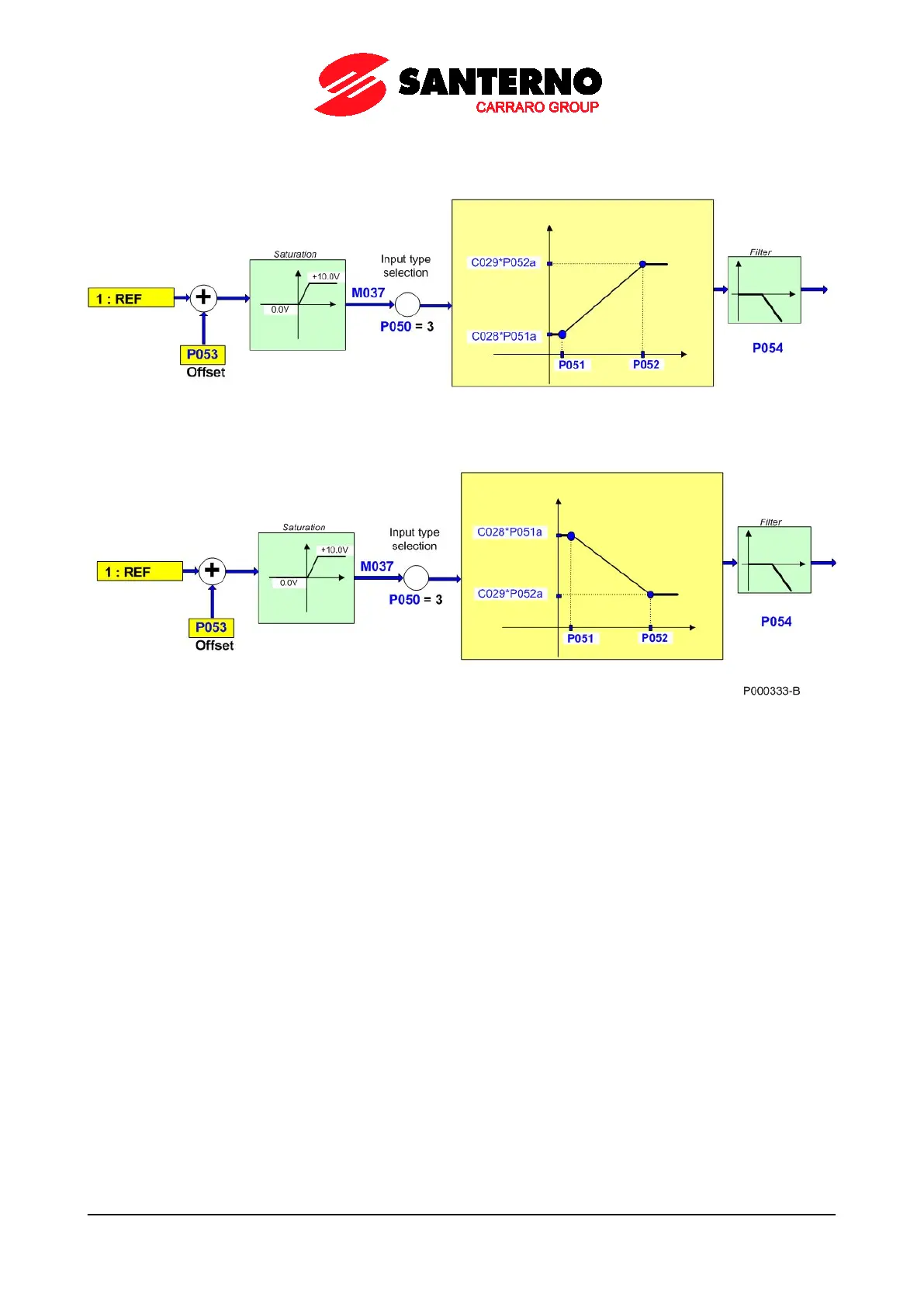

Figure 10: Computing Inputs REF (1) and (2) (examples)
The setup in the first part of the figure is as follows:
P050 = 3
P051 = 1V; P051a = 100%; P052 = 10V; P052a = 100%
Speed_Min = C028 = 100 rpm; Speed_Max = C029 = 1100 rpm
The setup in the second part of the figure is as follows:
P050 = 3
P051 = 1V; P051a = 100%; P052 = 10V; P052a = 100%
Speed_Min = C028 = 1200 rpm; Speed_Max = C029 = 400 rpm
