SINUS PENTA
PROGRAMMING GUIDE
154/486

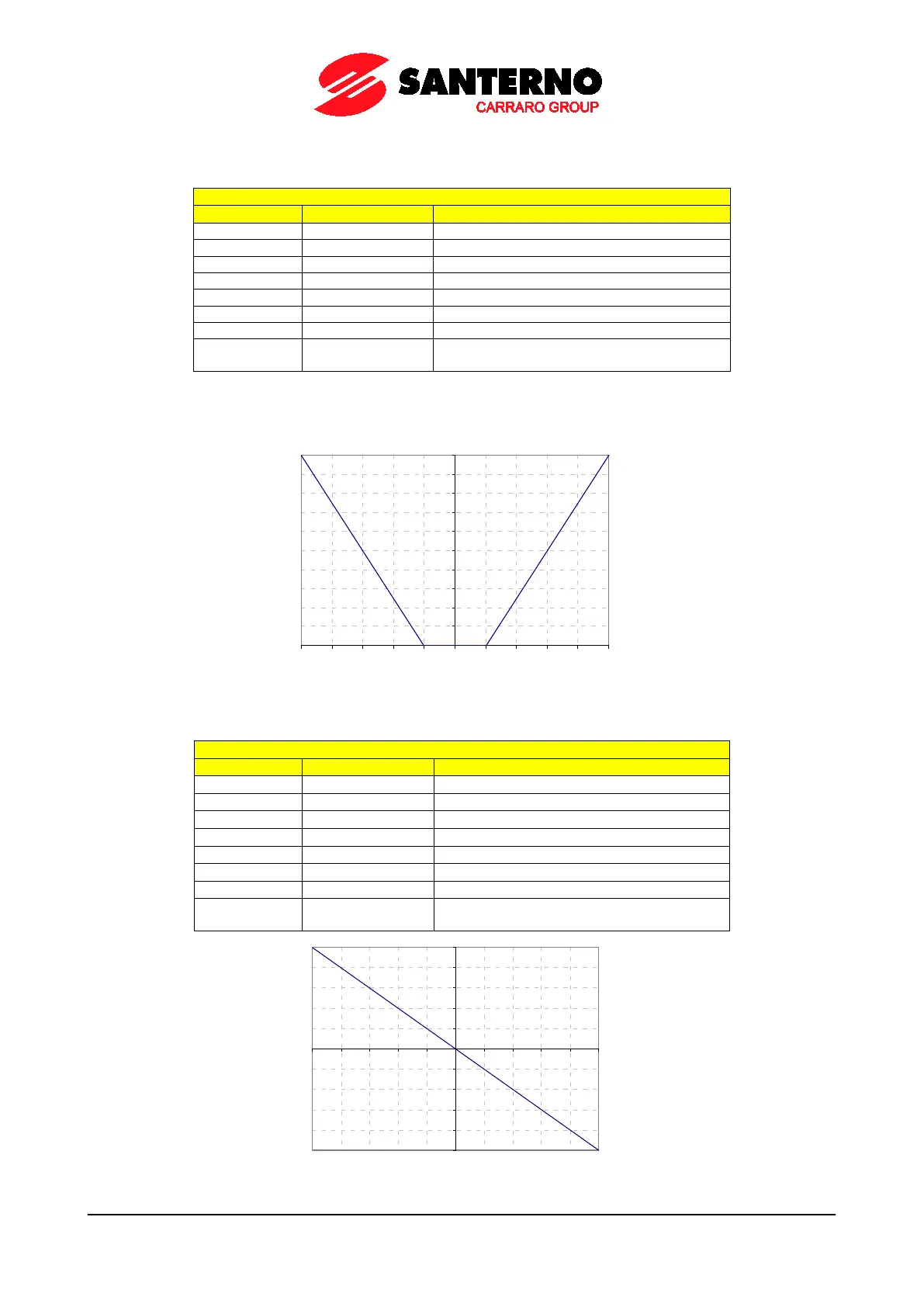

Example 4:
Table 40: Programming AO1 (ABS 0 ÷ 10V)
Parameterization of Analog Output AO1
Parameter
Value
Description
P176
ABS 0÷10V
AO1 Analog output
P177
1: Speed
Selected variable for AO1 analog output
P178
+100 rpm
Min. value of AO1 selected variable
P179
+500 rpm
Max. value of AO1 selected variable
P180
0.000 V
AO1 Analog output offset
P181
0 ms
Filter for AO1 analog output
P182
0.0 V
Min. AO1 output value with reference to P178
P183 10.0 V
Max. AO1 output value with reference to
P179
Figure 21: Curve (voltage; speed) implemented by AO1 (Example 4)
0
1
2
3
4
5
6
7
8
9
10
-500 -400 -300 -200 -100 0 100 200 300 400 500
( rpm )
( V )
Example 5:
Table 41: Programming AO1 (± 10V)
Parameterization of Analog Output AO1
Parameter
Value
Description
P176
±10V
AO1 Analog output
P177
1: Speed
Selected variable for AO1 analog output
P178
+500 rpm
Min. value of AO1 selected variable
P179
–500 rpm
Max. value of AO1 selected variable
P180
0.000 V
AO1 Analog output offset
P181
0 ms
Filter for AO1 analog output
P182
–10.0 V
Min. AO1 output value with reference to P178
P183
+10.0 V
Max. AO1 output value with reference to
P179
-10
-8
-6
-4
-2
0
2
4
6
8
10
-500 -400 -300 -200 -100 0 100 200 300 400 500
( rpm )
( V )
Figure 22: Curve (voltage; speed) implemented by AO1 (Example 5)
