SINUS PENTA
PROGRAMMING GUIDE
330/486
C151a REVERSE B Input
C151a Range
0 ÷ 16
0 ÷ 24 if ES847 or ES870 is fitted
0 → Inactive
1 ÷ 8 → MDI1 ÷ MDI8
9 ÷ 12 → MPL1 ÷ MPL4
13 ÷ 16 → TFL1 ÷ TFL4
17 ÷ 24 → XMDI1 ÷ XMDI8
Default
0
Inactive
Level
ADVANCED
Address
1299
Function
The REVERSE B Input acts as the REVERSE Input (see C151) when Terminal Board
B is active.

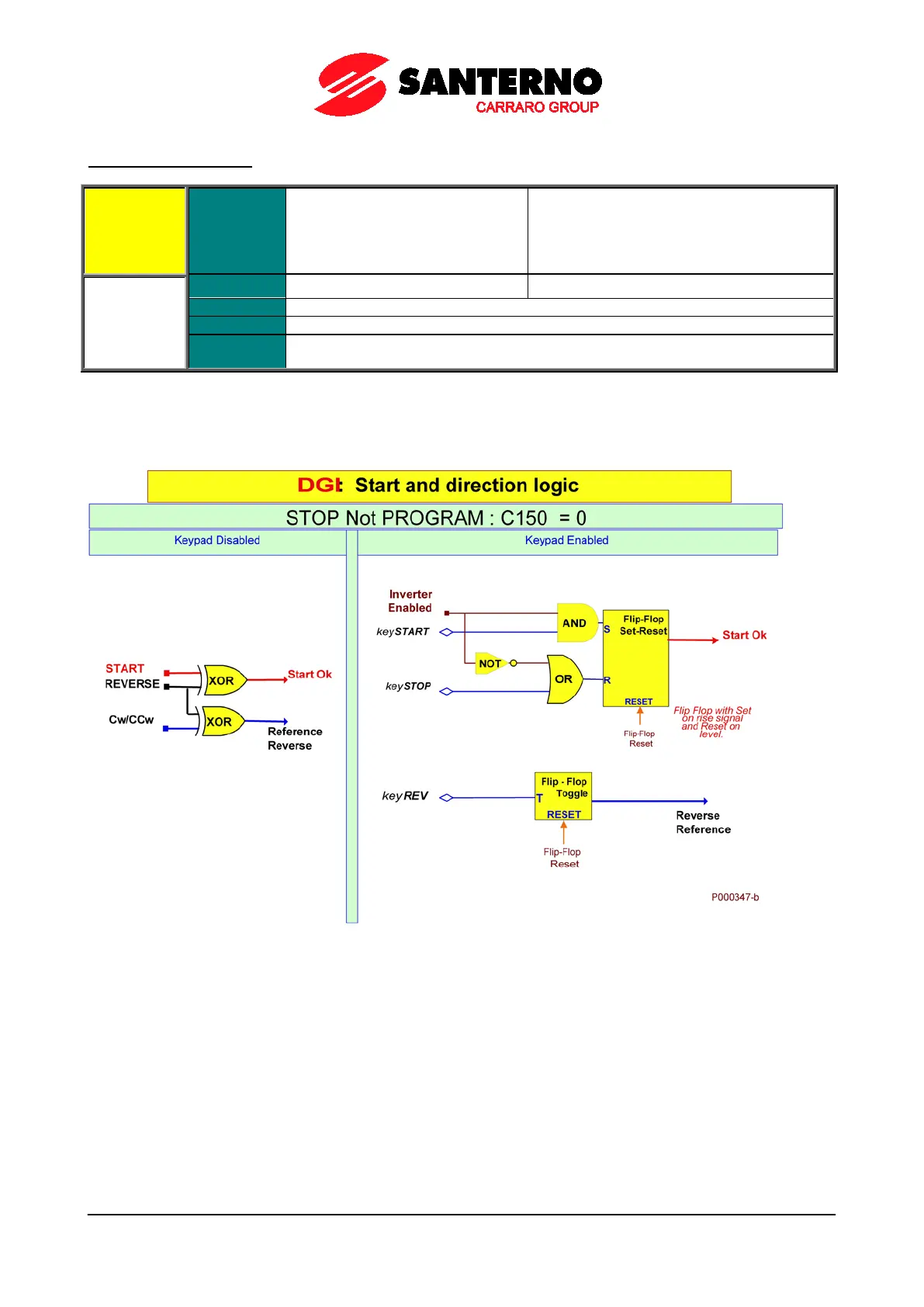

The figure below illustrates the processing logic diagram for the START, REV, Cw/CCw functions and the START,
STOP, REV keys on the display/keypad if the STOP function is not programmed.
Figure 53: Controlling Run and Direction when the STOP Input is not programmed
