PROGRAMMING GUIDE
SINUS PENTA
35/486

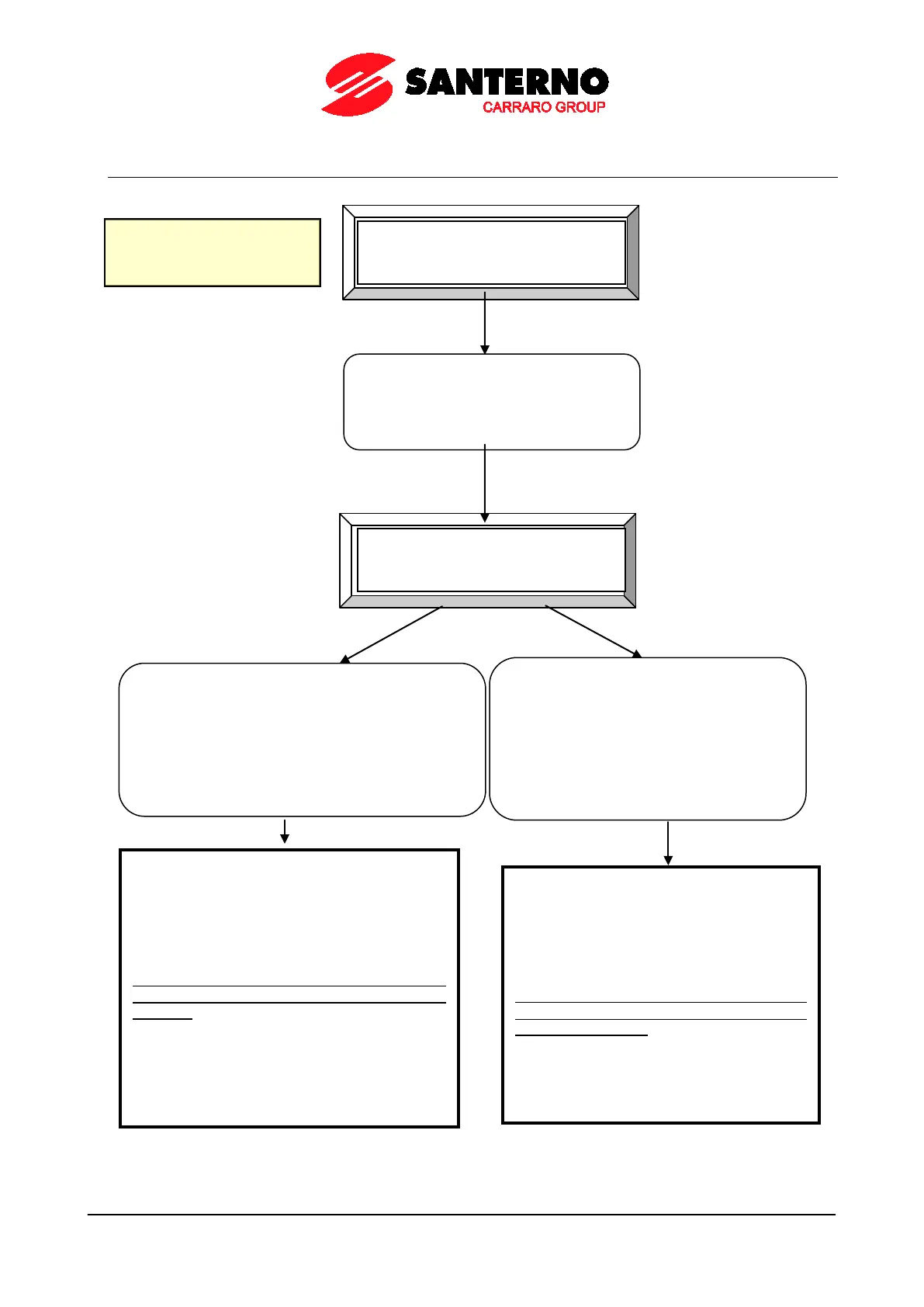

5.3. Configuring the External Torque Limit
Selecting the Reference
Source
The Control Method menu contains
parameter C147 for the selection of the
torque limit source.
Forcing the Reference
Sources
Sources:
REF REF Analog Input
AIN1 AIN1 Analog Input
AIN2 AIN2 Analog Input
Pulse Input Frequency Input (MDI8)
Encoder Encoder Input
Sources:
Serial Link Reference from serial link
Fieldbus Reference from fieldbus
Keypad Ref. from display/keypad
The reference scaling is obtained through the
parameters included in the Reference menu.
Each source is assigned to a parameter setting its
min. value and max. value for the min. /max.
torque of the connected motor (e.g. Motor 1: C047
for min. torque, C048 for max. torque).
The torque ramp set in parameters P026- P027 of
the Ramps menu is assigned to the limit torque
reference.
No reference scaling is required. References
are expressed as a percentage of the motor
rated torque. Saturation of the reference
values depends on min./max. torque
parameters (e.g. Motor 1: C047
for min.
torque, C048 for max. torque).
The torque ramp set in parameters P026-
P027 of the Ramps menu is assigned to the
limit torque reference.
Setting
P000 Write Enable
P001 = Eng. (Access Level)
