3. Press the following keys to quit the last page displayed:
• ESC without saving the value to EEPROM if P269b = 0:[No] → press ESC to confirm the parameter, that will
not be saved (the previous value will be restored at next power on);
• ESC without saving the value to EEPROM if P269b = 1:[No] → press ESC to restore the previous value;
• SAVE/ENTER (new values are saved to Eeprom).
1.8. RESET Key (Alarm and Control Board Reset)
The RESET key is used to reset the drive after an alarm trips and the cause responsible for the alarm has been
removed.
Press the RESET key for more than 5 seconds to reset the control board and reinitiate it. This procedure may be
useful when changes made to Rxxx parameters (which activate only after resetting the equipment) must immediately
come to effect, with no need to switch off the drive.
1.9. TX/RX Key (Download/Upload from/to the Keypad)
Use the keypad to perform the following functions:
1. UPLOAD (parameters stored in the drive are copied to the display/keypad);
2. DOWNLOAD (parameters stored in the keypad are copied to the drive).
Press the TX/RX key to go to the UPLOAD page; press the TX/RX key again to toggle between the UPLOAD and
DOWNLOAD pages.
CAUTION
A Warning is displayed (one among W41 to W46) when trying to DOWNLOAD
parameters to a drive whose SW Version, IDP, PIN or current/voltage cl
asses are
different from those of the drive previously used for parameter UPLOAD. In that case,
download is not allowed.
NOTE
The DOWNLOAD function allows the parameters stored in the keypad to be copied to
the drive. However, parameters are not stored to the non-volatile memory of the drive.
To store the downloaded parameters to the non-volatile memory of the drive, go to the
EEPROM menu and execute a “Save Work” command once
the download procedure is
complete. Otherwise, when power is lost, the paramet
ers downloaded to the drive are
lost.
The TX/RX key is disabled under the following conditions:
• no password is entered in P000
• the OPERATOR mode is activated with the MENU Key (P264b = OPERATOR)
• the drive is running.

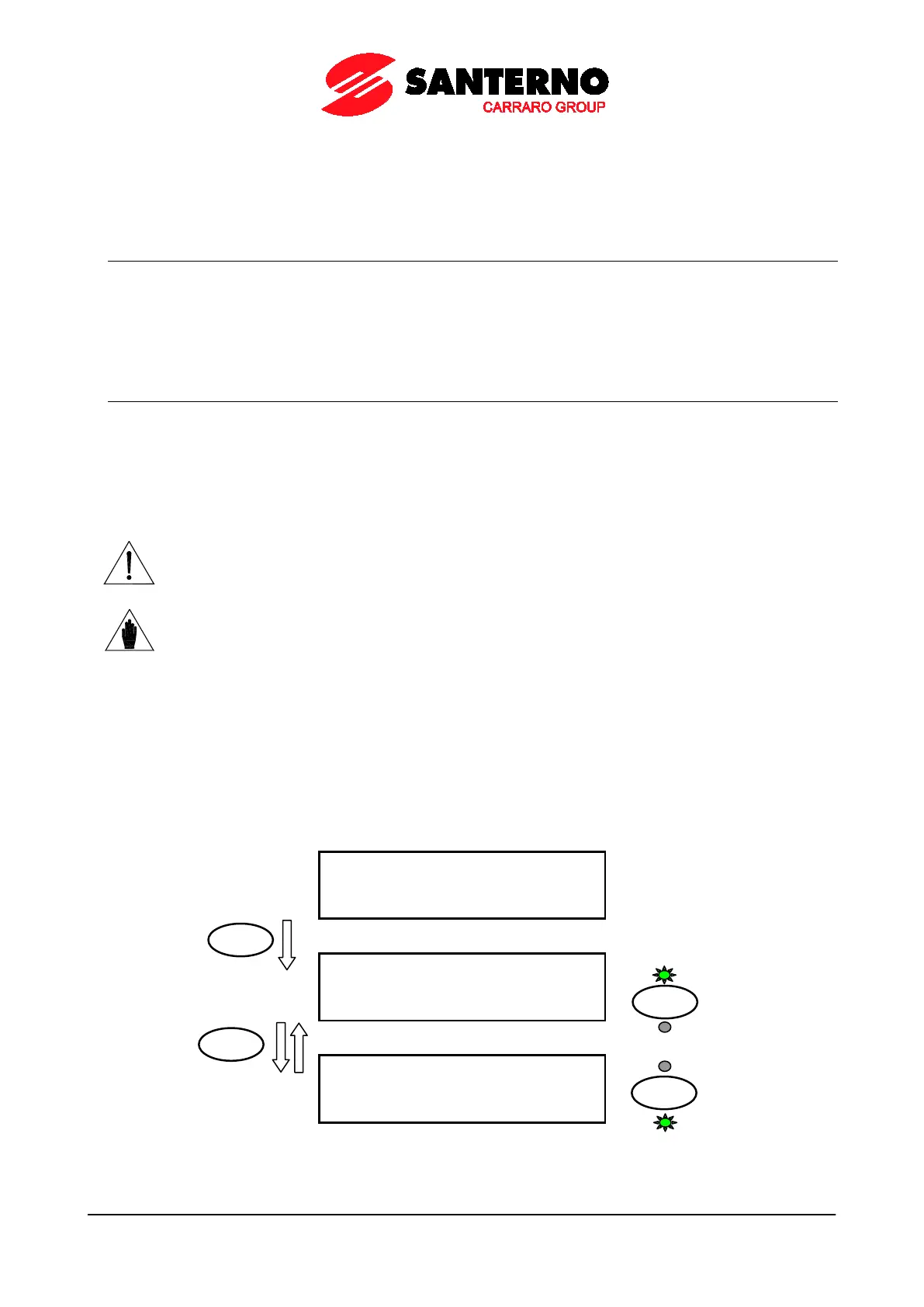

In the example below, you can go to the UPLOAD page from any page (the upper LED starts flashing). If you then press
the TX/RX key, you can go to the UPLOAD and DOWNLOAD pages.
Any page
A
N
Y
P
A
G
E
UPLOAD Page
P
a
r
a
m
e
t
e
r
U
P
L
O
A
D
i
n
v
e
r
t
e
r
→
k
e
y
p
a
d
:
p
r
e
s
s
S
A
V
E
/
E
N
T
E
R
t
o
c
o
n
f
i
r
m
DOWNLOAD Page
P
a
r
a
m
.
D
O
W
N
L
O
A
D
k
e
y
p
a
d
→
i
n
v
e
r
t
e
r
:
p
r
e
s
s
S
A
V
E
/
E
N
T
E
R
t
o
c
o
n
f
i
r
m
Press SAVE/ENTER from the UPLOAD (/DOWNLOAD) page to confirm UPLOADING (/DOWNLOADING). The relevant
LED will come on (fixed light).
