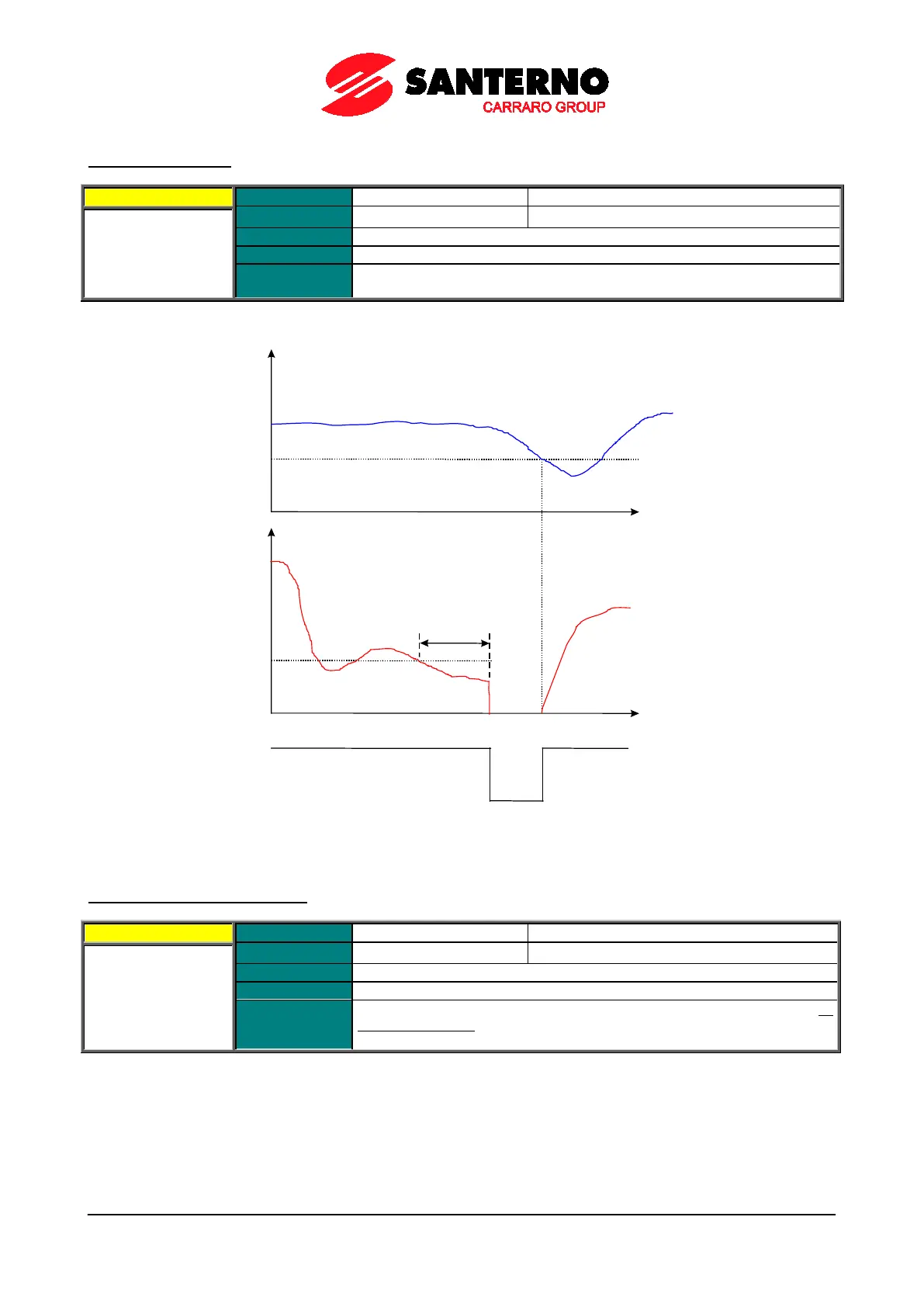

Santerno Sinus Penta - Figure 31: PID Sleep and Wake-Up Mode When P237 A Is Set to 1

PROGRAMMING GUIDE
SINUS PENTA
179/486
P237b Wake-up Level
P237b
Range
–10000 ÷ +10000
–100.00 ÷ +100.00 %
Default
0
0.00 %
Level
ENGINEERING
Address
859
Function
Level of the Feedback or Error signal allowing re-activating the PID control
(see P237a).
TIME
TIME
PID Output
PID Feedback
Sleep Level
Wake-Up Level
P237b
P237
RUNNING
STOP
T > P255
P000666-b
P237a = 1 [Feedback < P237b]
Figure 31: PID Sleep and Wake-up Mode when P237a is set to 1
P238 Max. Value of Integral Term
P238
Range
0 ÷ 10000
–100.00 ÷ +100.00 %
Default
10000
+100.00 %
Level
ENGINEERING
Address
838
Function
This is the max. allowable value of the integral term. It is to be considered as
an absolute value; the output value resulting from the i
ntegral term ranges
from + P238 to – P238.
