PROGRAMMING GUIDE

SINUS PENTA

175/486

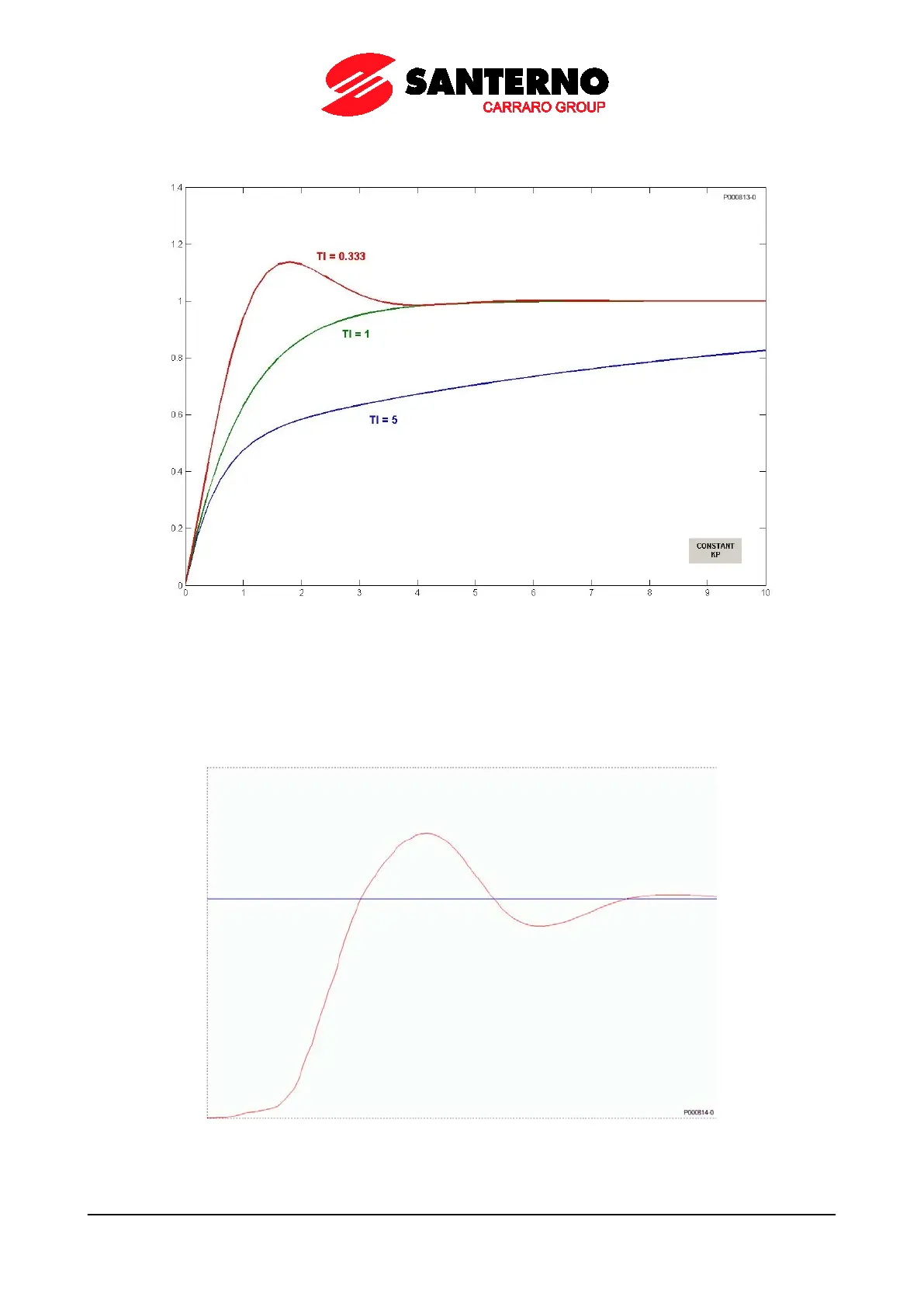

Figure 29: Response to the step based on the value of Ti when Kp is kept constant

The figure below represents the response of the PI regulator when the values for Kp and Ti are lower than the optimum

value computed with the method of Ziegler and Nichols.

Figure 30: Response to the step when the values of Kp and Ti are too small
