PROGRAMMING GUIDE
SINUS PENTA
367/486
b) t1 < t* time
t1 for braking command is shorter than t*.
Two different cases may occur, depending on the control algorithm and the setup of the motor speed searching function.
Speed Searching function disabled (C245 [NO])
Prematurely disable the manual braking command to stop DC braking. If the motor is still rotating, it will start
idling. To restart the motor following the preset acceleration ramp, simply disable and enable the START
command (see Figure 61).

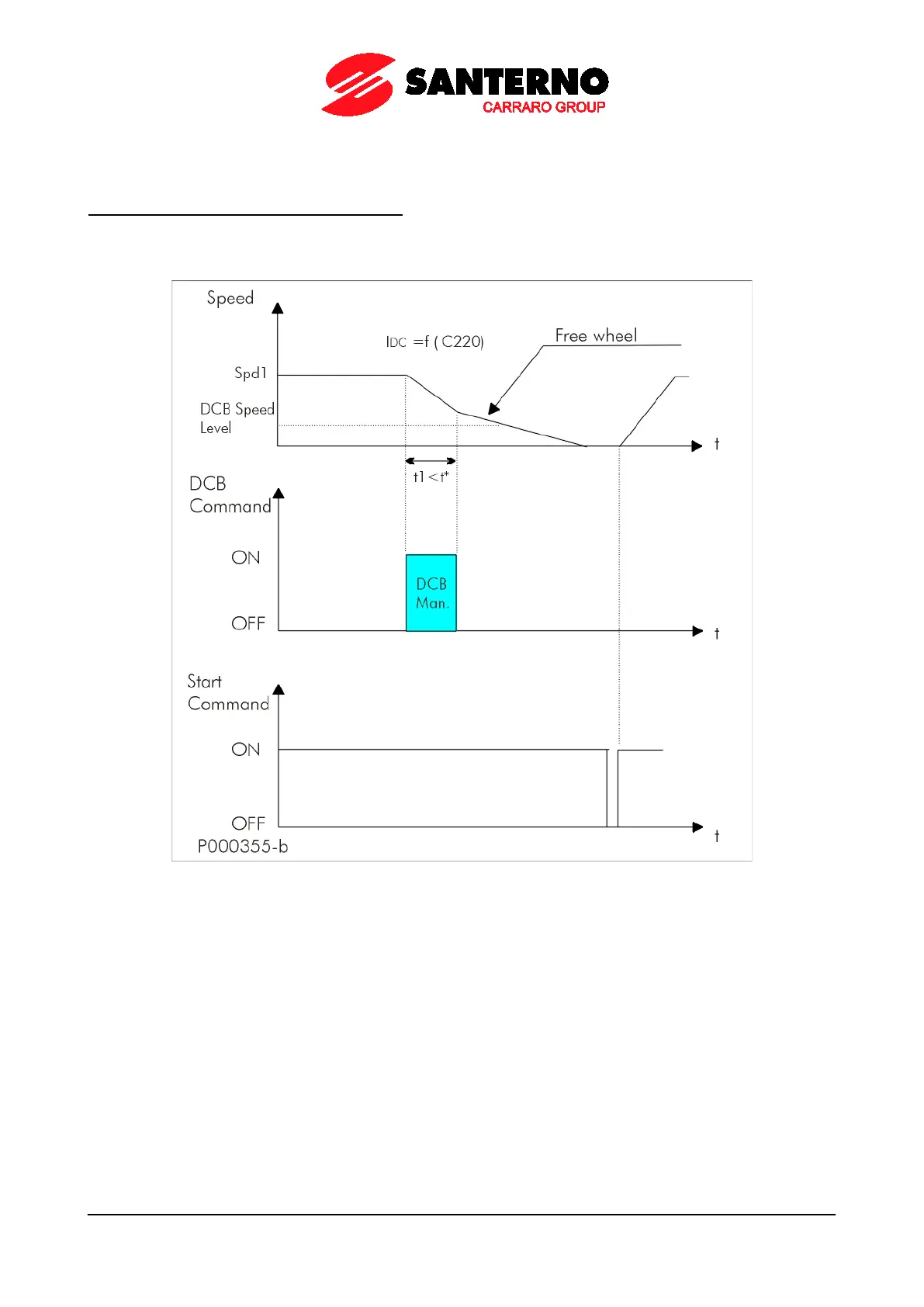

Figure 61: Manual DCB (Example 2)
Motor Speed, DC Braking, Manual DCB Command and START Command if t1<t* and the Speed Searching Function is
disabled.
