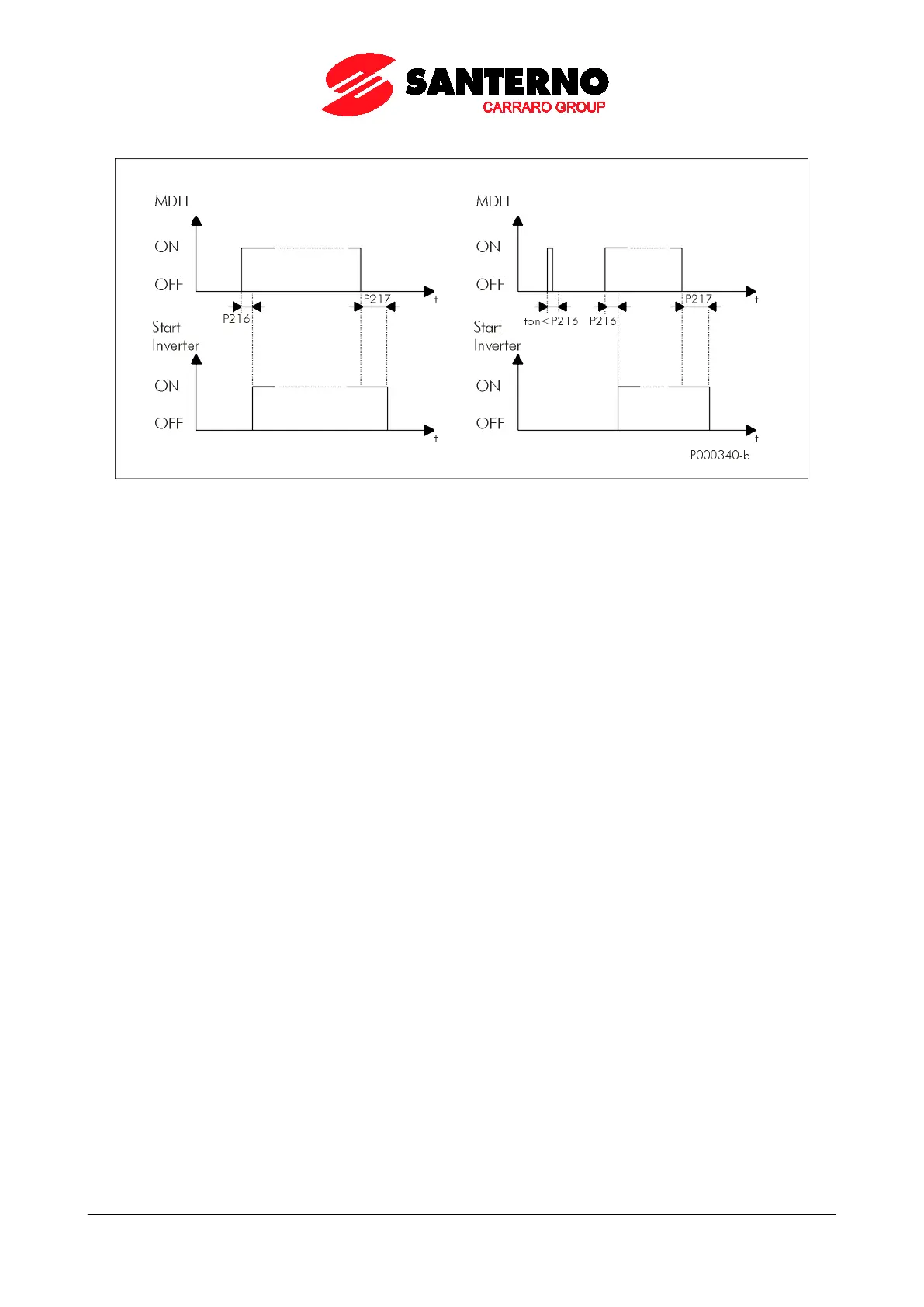

Figure 23: Using Timers (example)
The figure shows two possible operating modes:
- on the left: application of the delay times set for the drive enabling/disabling;
- on the right: the start signal persists for a shorter time than the delay set for enabling; in this case, the Start function
is not enabled. The Start function will be enabled only when MDI1 digital input is ON for a time longer than the time set
in P216.
