SINUS PENTA
PROGRAMMING GUIDE
302/486

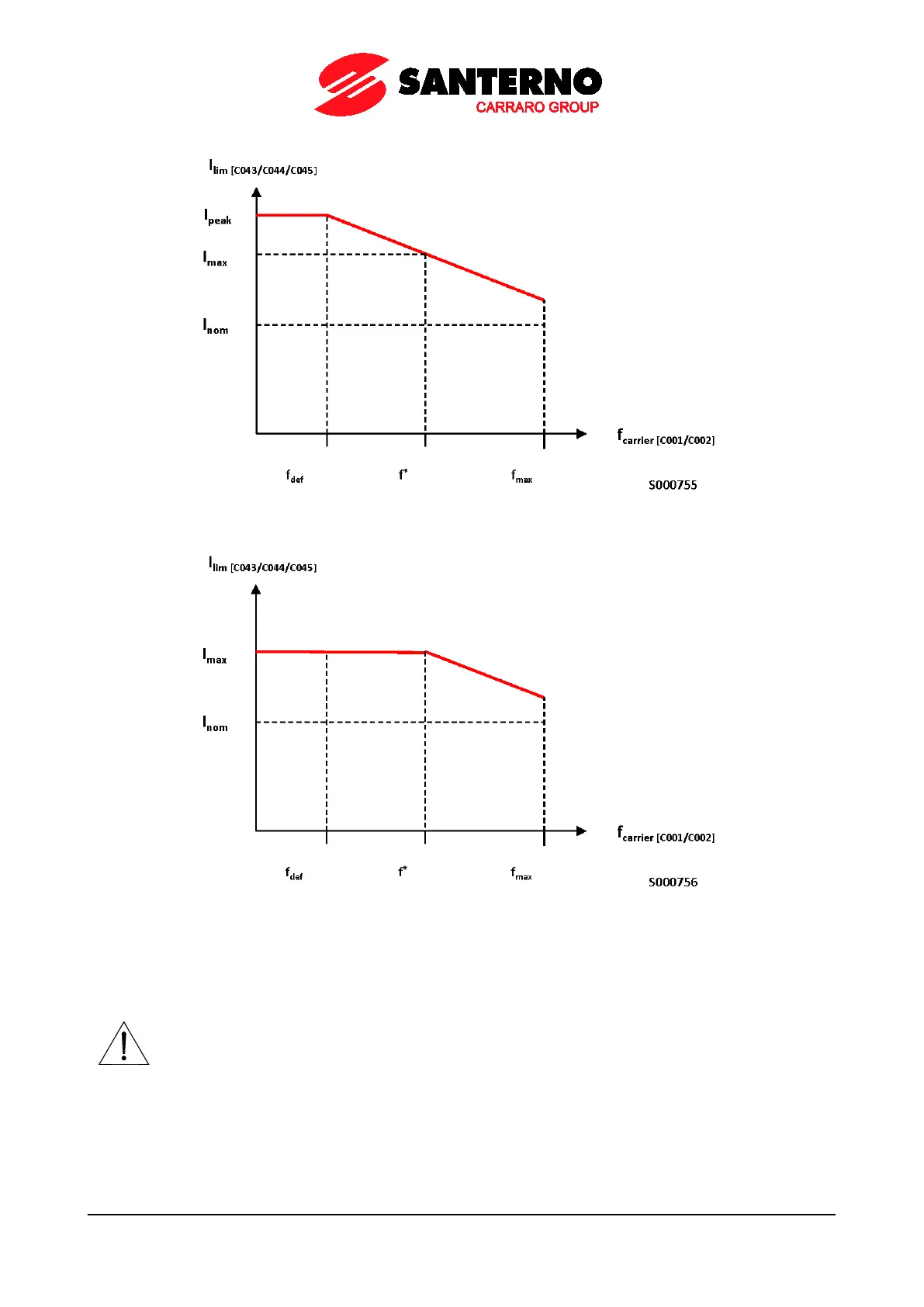

Figure 47: Current limit reduction based on carrier frequency: models with Ipeak functionality
Figure 48: Current limit reduction based on carrier frequency: models without Ipeak functionality
f
def
: default carrier frequency
f*: maximum carrier frequency to obtain Imax
f
max
: maximum programmable carrier frequency
CAUTION
The pictures above show the Imax/Ipeak current limit based on carrier frequency.
Please refer to the Sinus Penta’s Installation Guide for the maximum carrier values
recommended based on Inom rated current.
