SINUS PENTA
PROGRAMMING GUIDE
380/486

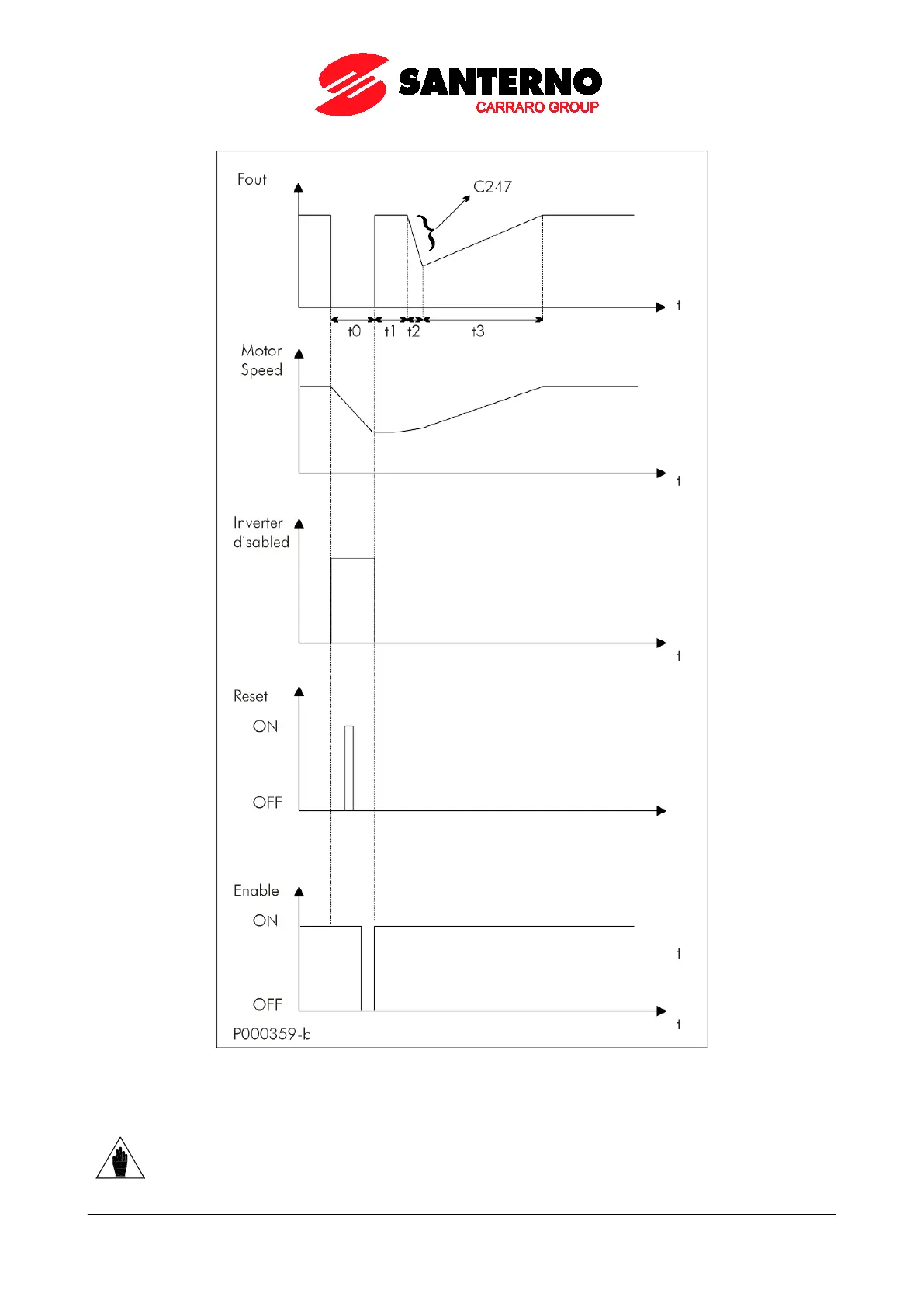

Figure 65: Speed Searching (Example 2)
Frequency, Motor Rpm, Drive Lock, RESET and ENABLE during Speed Searching (C245 =[YES]) due to an Alarm Trip
t
OFF
< t
SSdis
(C246) or C246 = 0.
NOTE
If the Safety at Start function is disabled (C181 = [Inactive]), it is not necessary to
activate and deactivate the ENABLE function; the Speed Searching
activation would
match with the RESET command.
