Santerno Sinus Penta - Figure 15: Error Threshold Dual Parameterization Function (Example)

To Next Page

To Previous Page

SINUS PENTA

PROGRAMMING GUIDE

136/486

P130<Error<P131

When the speed error is included between the two error thresholds, the speed regulator will use coefficients that are

dynamically linked with the speed error (see figure below).

Integral coefficient = (1/P126) + [(err%–P130)* (1/P125 – 1/P126 ) / ( P131 – P130 )]

Proportional coefficient = P128 + [(err%–P130)* ( P129 – P128 ) / ( P131 – P130 )]

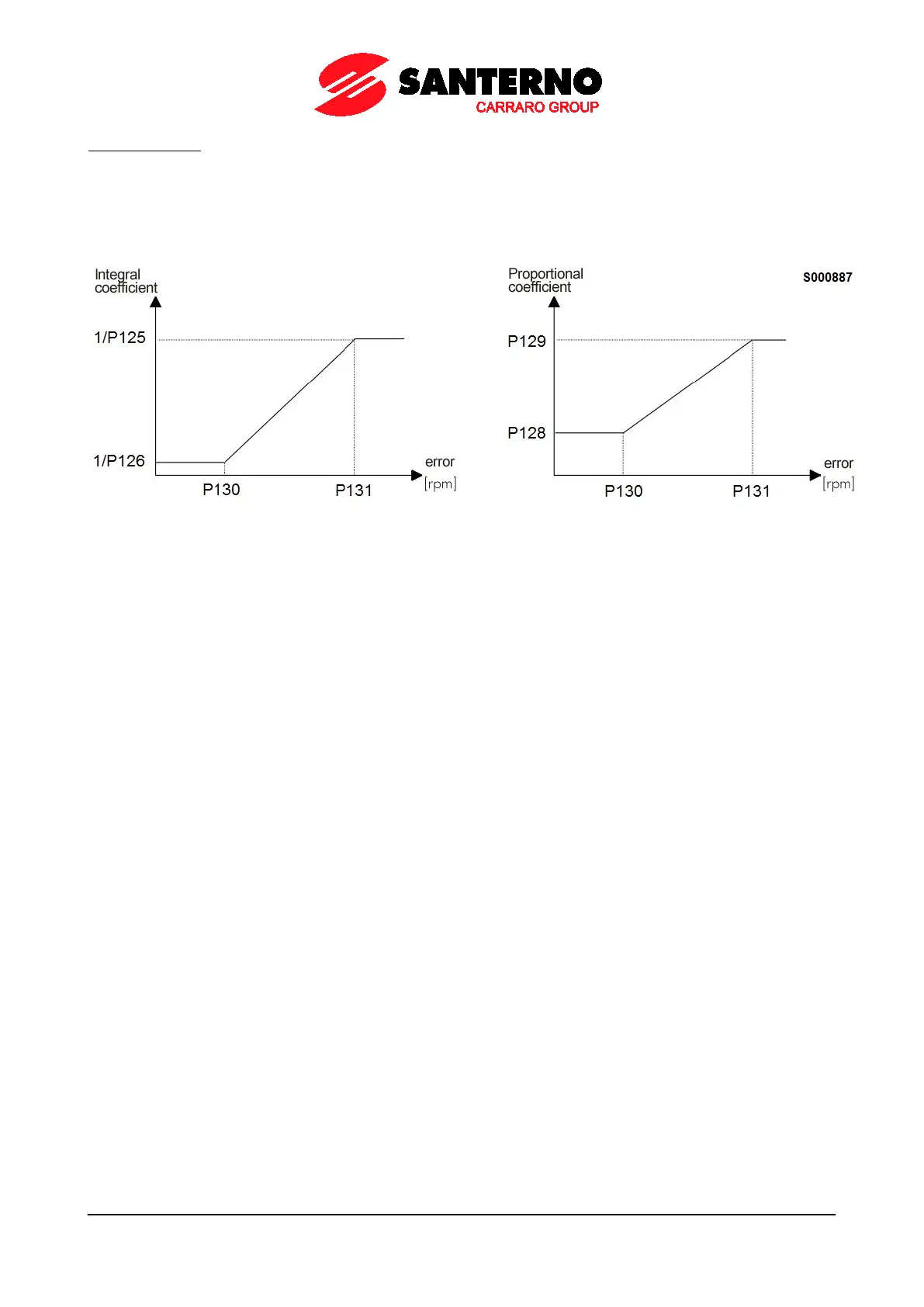

Figure 15: Error threshold Dual Parameterization function (example)
