PROGRAMMING GUIDE

SINUS PENTA

405/486

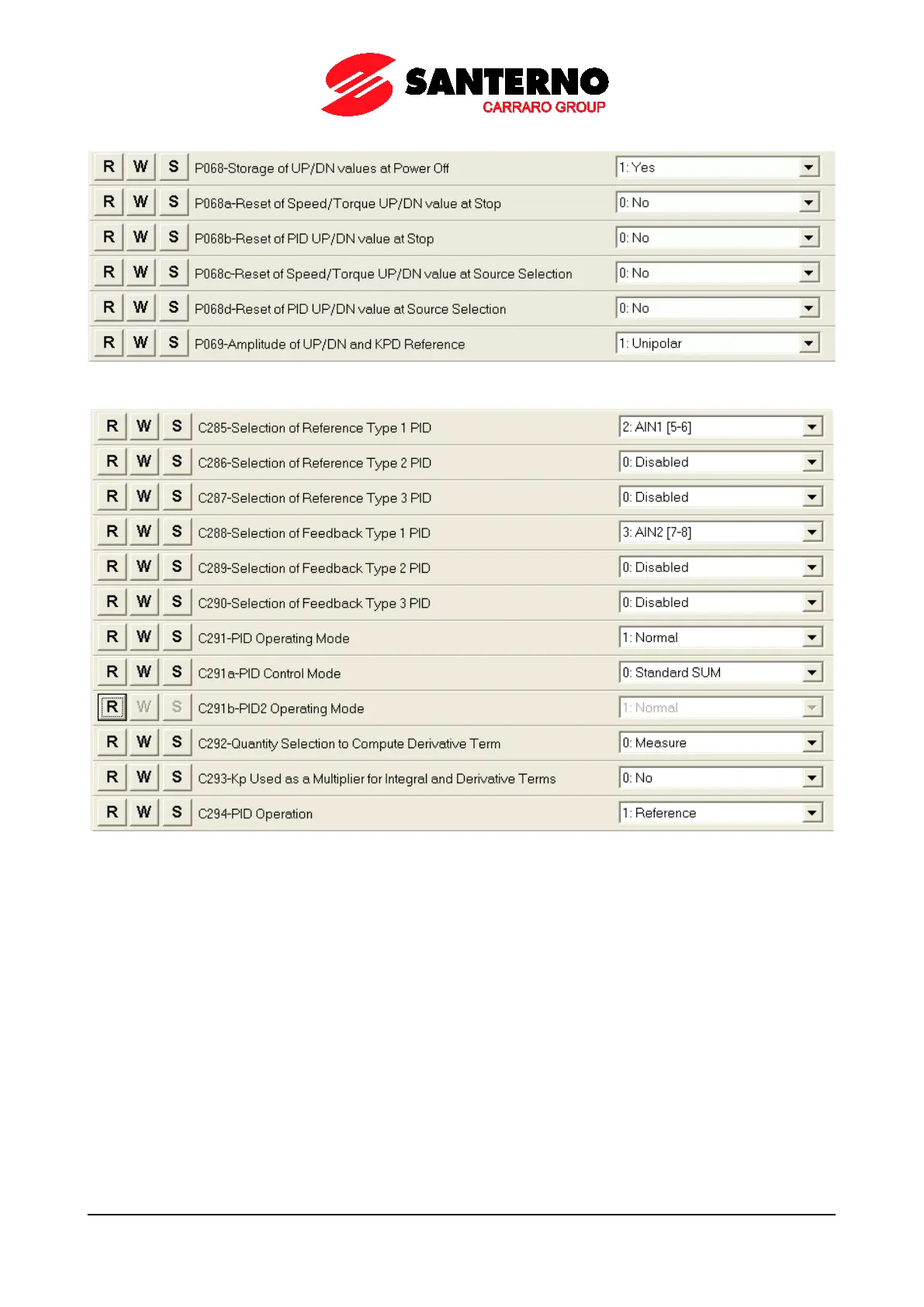

The PID regulator action and the PID output computing mode must also be set.

The PID regulator parameters are defined in the PID PARAMETERS MENU. This configuration limits the PID output

between 0 and 100% for a proper rotation of the connected pump. Set P255 = 1000 ts: if the PID output is equal to the

min. value for 5 seconds, the drive is put on stand-by.
