4.6 Friction compensation (quadrant error compensation)
Extended Functions
292 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
Time constant too large
Too large a time constant (MD32540) in the circularity test compensates the contour
deviations at the quadrant transitions. (Requirement: The optimum compensation value has
already been determined.) However, with too large a time constant, the compensation value
applies too long and results in an overcompensation at the next circular contour.
&RXQWHU
,,,
&RXQWHU
,
,9
,,

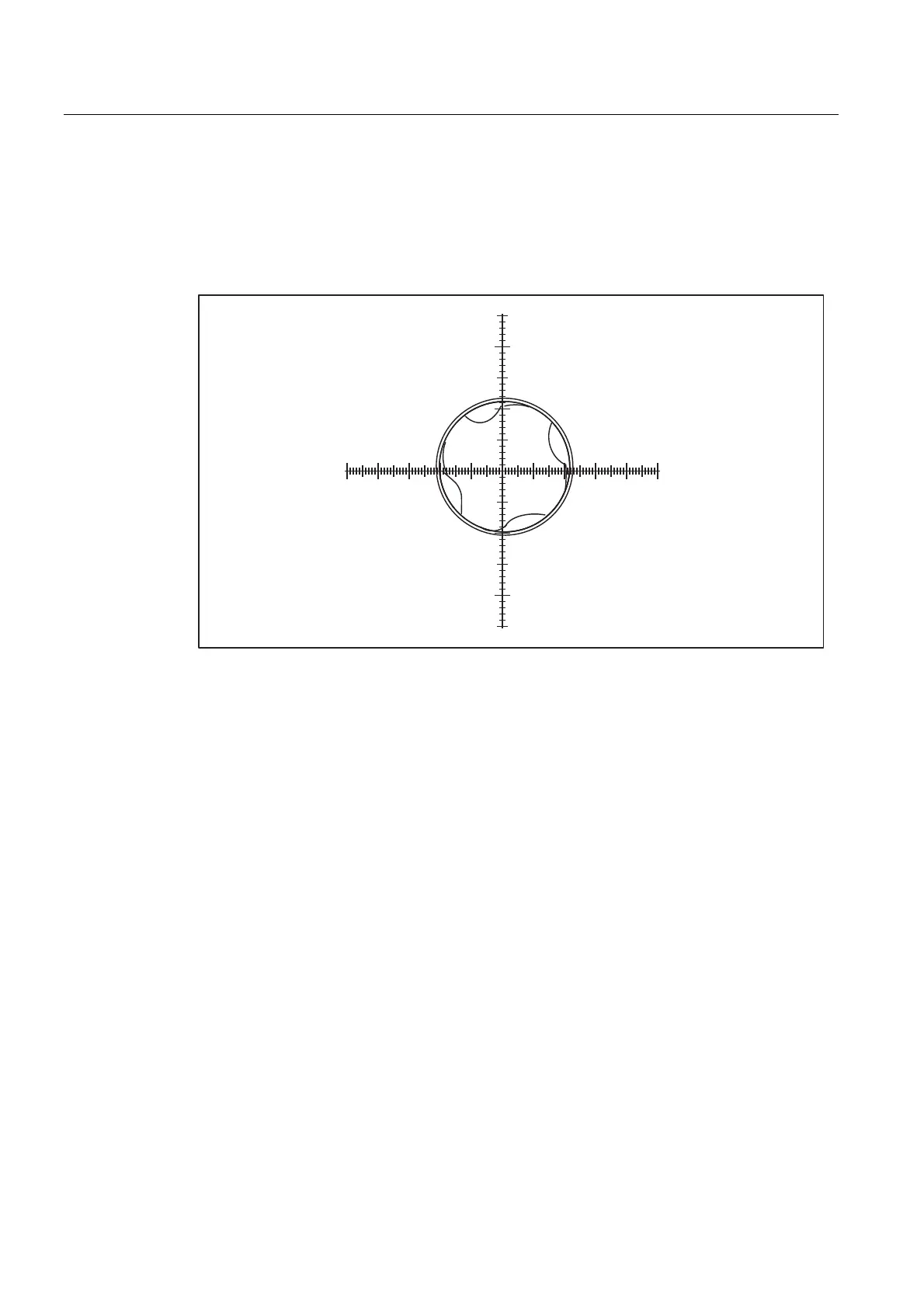

Figure 4-17 Time constant set too large
